• NVR-104MH-D/W(C)

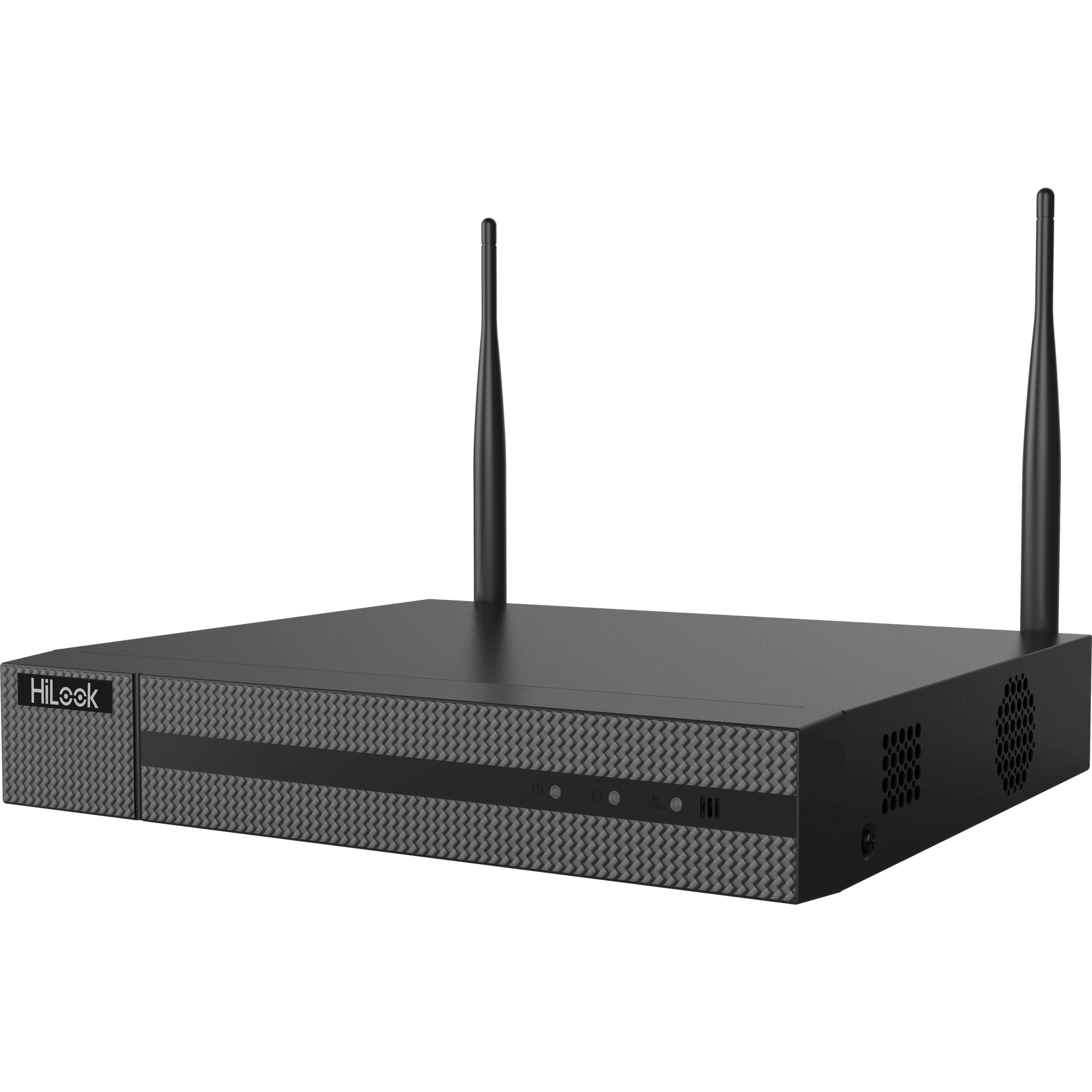

HiLook NVR-104MH-D/W(C) NVR

HiLook NVR-104MH-D/W(C) NVR

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV

50Mbps Bit Rate Input Max (up to 4-ch IP video), 1 SATA interface,
H.265+/H.265/H.264+/H.264,2 external antennas, transmission speed at up to 144Mbps, mini 1U case(Metal)

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook NVR-104MH-D/W(C) NVR
Login to View Price

Specifications

  • Motherboard model: DS-80355-5M-B-i
  • FLASH: 16MB SPI NOR FLASH
  • System memory: 512M
  • Video input channel: 4
  • Video resolution: 6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Outgoing bandwidth: 40 Mbps
  • Incoming bandwidth: 50 Mbps
  • Video output: 1-ch HDMI, 1-ch VGA
  • HDMI output: 1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • VGA output: 1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • Video decoding format: H.265;H.265+;H.264;H.264+
  • Decoding capability: 1-ch@6 MP (25 fps), 1-ch@5 MP (25 fps), 4-ch@4 MP (12 fps), 4-ch@1080p (25 fps)
  • Synchronous playback: 4
  • Two-way audio: N/A
  • Audio decoding format: G.711ulaw;G.722;G.726;MP2L2
  • HDD No.: 1 SATA interface
  • Interface: SATA1.0 1.5G
  • Record/Capture mode: Scheduled Recording, Event Recording, Manual Recording
  • Playback mode: Normal/Smart, Event, Tag, Eternal File
  • Remote connections: 16
  • Network protocol: IPv6, HTTP, UPnP, NTP, SADP, DDNS
  • Network interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Alarm input: N/A
  • Alarm output: N/A
  • Wireless standard: IEEE 802.11b/g/n
  • Power: DC 12V 24W
  • Power Parameter: 12 VDC, 1.6 A
  • Consumption (without HDD): ≤ 10W
  • Chassis: Mini 1U
  • Material: Metal box
  • Dimension: 265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight (without HDD): ≤ 1.6 kg (3.5 lb)
  • RESET button: N/A
  • IR remote control: N/A
  • Panel: MB-206
  • Temperature sensor: N/A
  • Slide rail: N/A
  • Mounting ear: N/A
  • Package: 彩包
  • Label: 主数据和标签需要维护，二维码中不需要验证码
  • Accessory: 删除

Motherboard Model
  • Motherboard model: DS-80355-5M-B-i

Control Unit
  • FLASH: 16MB SPI NOR FLASH
  • System memory: 512M

System Parameter
  • Video input channel: 4
  • Video resolution: 6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Outgoing bandwidth: 40 Mbps
  • Incoming bandwidth: 50 Mbps

Video Parameter
  • Video output: 1-ch HDMI, 1-ch VGA
  • HDMI output: 1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • VGA output: 1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • Video decoding format: H.265;H.265+;H.264;H.264+
  • Decoding capability: 1-ch@6 MP (25 fps), 1-ch@5 MP (25 fps), 4-ch@4 MP (12 fps), 4-ch@1080p (25 fps)
  • Synchronous playback: 4

Audio Parameter
  • Two-way audio: N/A
  • Audio decoding format: G.711ulaw;G.722;G.726;MP2L2

HDD Management
  • HDD No.: 1 SATA interface
  • Interface: SATA1.0 1.5G

Recording Management
  • Record/Capture mode: Scheduled Recording, Event Recording, Manual Recording
  • Playback mode: Normal/Smart, Event, Tag, Eternal File

Network Management
  • Remote connections: 16
  • Network protocol: IPv6, HTTP, UPnP, NTP, SADP, DDNS

External Port
  • Network interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Alarm input: N/A
  • Alarm output: N/A

Wireless Transmission
  • Wireless standard: IEEE 802.11b/g/n

General Standard
  • Power: DC 12V 24W
  • Power Parameter: 12 VDC, 1.6 A
  • Consumption (without HDD): ≤ 10W
  • Chassis: Mini 1U
  • Material: Metal box
  • Dimension: 265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight (without HDD): ≤ 1.6 kg (3.5 lb)

Others
  • RESET button: N/A
  • IR remote control: N/A
  • Panel: MB-206
  • Temperature sensor: N/A
  • Slide rail: N/A
  • Mounting ear: N/A
  • Package: 彩包
  • Label: 主数据和标签需要维护，二维码中不需要验证码
  • Accessory: 删除
