• NVR-208MH-C/8P

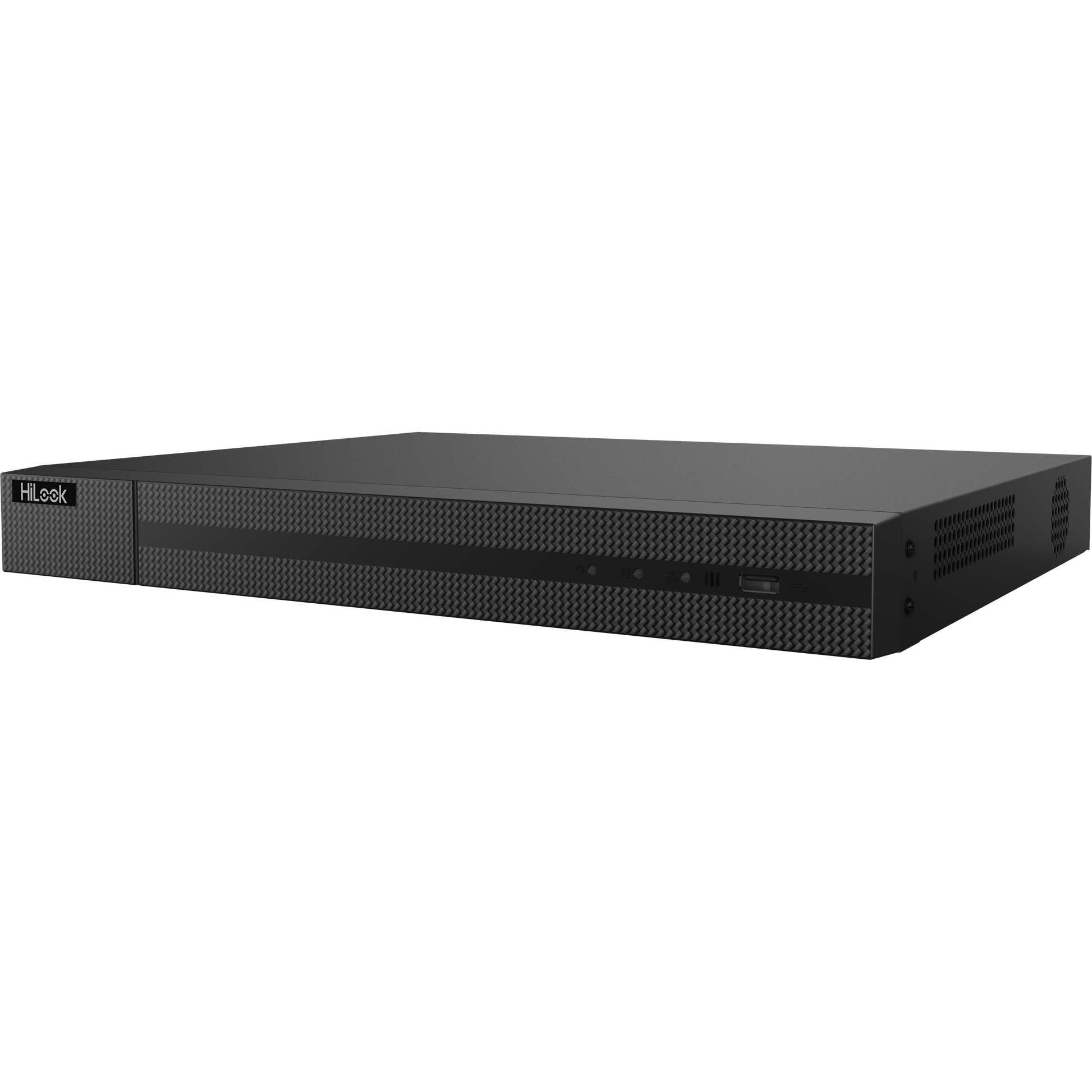

HiLook NVR-208MH-C/8P(D) NVR

HiLook NVR-208MH-C/8P(D) NVR

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV

1-ch @ 4K or 4-ch @ 1080P, 80Mbps Bit Rate Input Max (up to 8-ch IP video), H.265/H.265+/H.264/H.264+, 2 SATA interface,8 independent PoE network interfaces, standalone 1U 385 case(Metal)

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook NVR-208MH-C/8P(D) NVR
Login to View Price

Specifications

  • Human/Vehicle Analysis: 4-ch
  • HDMI Output: 1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
  • IP Video Input: 8-ch
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4MP (30 fps)/6-ch@1080p (30 fps)
  • Decoding Format: H.265+,H.265,H.264+,H.264
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback: 8-ch
  • Remote Connection: 32
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 80 W
  • Standard: IEEE 802.3 af/at
  • SATA: 2 SATA interfaces
  • Capacity: Up to 8 TB capacity for each disk
  • USB Interface: 2 × USB 2.0
  • Power Supply: 48 VDC, 2.5 A
  • Consumption: ≤ 15 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10 to 90 %
  • Chassis: 1U chassis
  • Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight: ≤ 2.6 kg (without HDD, 5.7 lb.)

Motion Detection 2.0
  • Human/Vehicle Analysis: 4-ch

Video and Audio
  • HDMI Output: 1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
  • IP Video Input: 8-ch
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
  • Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4MP (30 fps)/6-ch@1080p (30 fps)
  • Decoding Format: H.265+,H.265,H.264+,H.264
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback: 8-ch

Network
  • Remote Connection: 32
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE
  • Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 80 W
  • Standard: IEEE 802.3 af/at

Auxiliary Interface
  • SATA: 2 SATA interfaces
  • Capacity: Up to 8 TB capacity for each disk
  • USB Interface: 2 × USB 2.0

General
  • Power Supply: 48 VDC, 2.5 A
  • Consumption: ≤ 15 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10 to 90 %
  • Chassis: 1U chassis
  • Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight: ≤ 2.6 kg (without HDD, 5.7 lb.)
