• NVR-216MH-C/16P

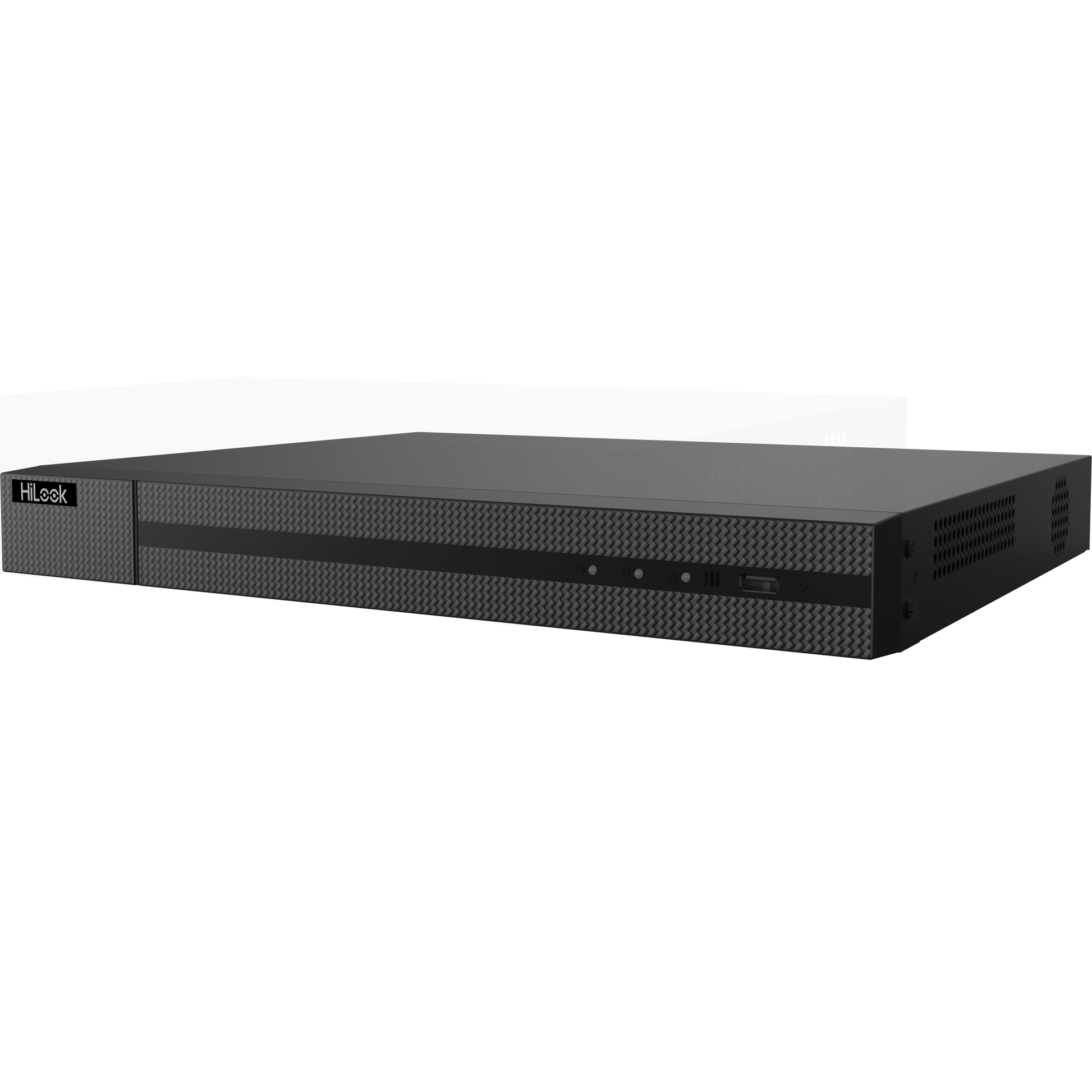

HiLook NVR-216MH-C/16P(D) NVR

HiLook NVR-216MH-C/16P(D) NVR

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV

4-channels Motion Detection 2.0
160Mbps Bit Rate Input Max (up to 16-ch IP video), H.265/H.265+/H.264/H.264+, 2 SATA interface,16 independent PoE network interfaces, standalone 1U 385 case(Metal)

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook NVR-216MH-C/16P(D) NVR
Login to View Price

Specifications

  • IP Video Input: 16-ch
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Incoming Bandwidth: 160 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding Format: H.265+,H.265,H.264+,H.264
  • Decoding Capability: 4-ch@1080p
  • Synchronous playback: 16-ch
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Interface: 16-ch
  • Power: ≤ 150W
  • Standard: IEEE 802.3 af/at
  • RAID Type: No
  • SATA: 2 SATA interfaces
  • Capacity: Up to 8TB capacity for each disk
  • USB Interface: 2 × USB 2.0
  • Power Supply: 100-240V～, 50/60Hz, 3.2A MAX
  • Consumption: ≤ 15W
  • Working Temperature: -10 to +55º C (+14 to +131º F)
  • Working Humidity: 10 to 90 %
  • Chassis: 1U chassis
  • Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight: ≤ 2.6 kg (5.7 lb)

Video and Audio
  • IP Video Input: 16-ch
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Incoming Bandwidth: 160 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
  • Decoding Format: H.265+,H.265,H.264+,H.264
  • Decoding Capability: 4-ch@1080p
  • Synchronous playback: 16-ch
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network
  • Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
  • Interface: 16-ch
  • Power: ≤ 150W
  • Standard: IEEE 802.3 af/at

RAID
  • RAID Type: No

Auxiliary Interface
  • SATA: 2 SATA interfaces
  • Capacity: Up to 8TB capacity for each disk
  • USB Interface: 2 × USB 2.0

General
  • Power Supply: 100-240V～, 50/60Hz, 3.2A MAX
  • Consumption: ≤ 15W
  • Working Temperature: -10 to +55º C (+14 to +131º F)
  • Working Humidity: 10 to 90 %
  • Chassis: 1U chassis
  • Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight: ≤ 2.6 kg (5.7 lb)
