HiLook PTZ-N2404I-DE3(F) IP Camera | 4MP |

HiLook PTZ-N2404I-DE3(F) IP Camera | 4MP |

Category: IP CCTV
|
Brand: HiLook
  • IP CCTV
  • 2 MP, 4 MP

1/2.8" Progressive CMOS, 2560x1440:25fps(P)/30fps(N),04X, Color:0.005Lux@F1.6, B/W:0.001Lux@F1.6, H.265+&H.265, IP66, IK10, 120dB WDR(20fps), IR:20m,12 VDC & PoE+, 24 privacy masks

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook PTZ-N2404I-DE3(F) IP Camera | 4MP |
Login to View Price

Specifications

  • Resolution: 4MP
  • Min. Illumination: 0.005 Lux @(F1.6, AGC ON)
  • Protection Level: IP66
  • optical zoom: 4x
  • IR Distance: 20m
  • POE Support: PoE (802.3af, class3)
  • Wifi Support: No
  • FOV: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
  • Focal Length: 2.8 mm to 12 mm, 4× optical zoom
  • Zoom Speed: Approx. 2 s (optical lens, wide-tele)
  • Working Distance: 10 mm to 1500 mm (wide-tele)
  • Aperture Range: F1.6 to F2.7
  • Basic Event Detection: Motion Detection, Video Tampering Detection, Exception
  • Smart Detection: Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
  • Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
  • ROI: Main stream, sub-stream, and third stream respectively support two fixed areas.
  • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
  • Simultaneous Live View: Up to 20 channels
  • User/Host: Up to 32 users,3 levels: Administrator, Operator and User
  • Client: iVMS-4200, HikCentral, HiLookVision
  • Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
  • Image Enhancement: 3D DNR, BLC, HLC, Regional Exposure, Regional Focus
  • Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution: 2560 × 1440
  • Main Stream: 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Audio Input: 1-ch audio input (line in)
  • Audio Output: 1-ch audio output (line out)
  • Network Interface: 1 RJ45 10 M/100 M Ethernet, PoE
  • Built-in Microphone: 1 built-in microphone, picking up sounds in the radius up to 5 meters
  • Image Sensor: 1/3" progressive scan CMOS
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Gain: Auto/Manual
  • Shutter Time: 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
  • Day & Night: IR Cut Filter
  • Digital Zoom: 16×
  • Privacy Mask: 24 programmable privacy masks
  • Focus Mode: Auto/Semi-automatic/Manual
  • WDR: 120 dB WDR
  • Material: Aluminum alloy, PC, PC+ABS

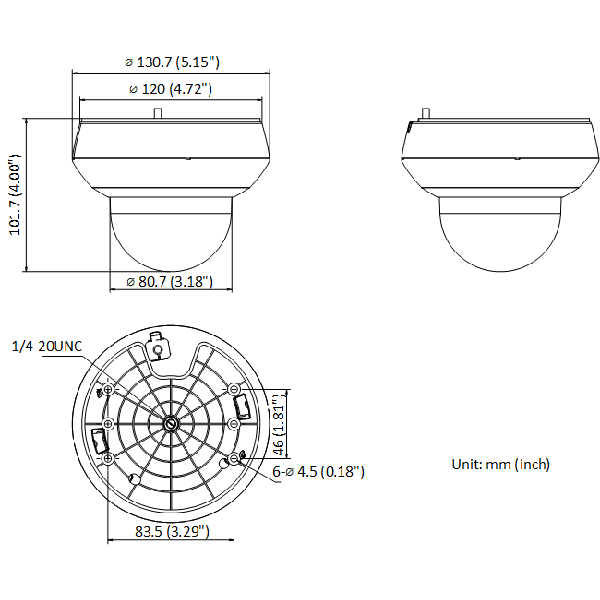

  • Dimensions: Ø130.7 mm × 101.7 mm (Ø5.15" × 4.00")
  • Weight: Approx. 0.53 kg (1.17 lb)
  • Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power: 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
  • Working Temperature: -20°C to 60°C (-4°F to 140°F)
  • Working Humidity: ≤ 90%
  • IR Distance: 20 m
  • Smart IR: Support
  • Movement Range (Pan): 0° to 330°
  • Pan Speed: Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
  • Movement Range (Tilt): From 0° to 90°
  • Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
  • Proportional Zoom: Support
  • Presets: 300
  • Power-off Memory: Support
  • H.264+: Support
  • H.265+: Support
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 Type: Main Profile
  • Video Bitrate: 32 Kbps to 16384 Kbps
  • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
  • SVC: Support

Selection Parameter
  • Resolution: 4MP
  • Min. Illumination: 0.005 Lux @(F1.6, AGC ON)
  • Protection Level: IP66
  • optical zoom: 4x
  • IR Distance: 20m
  • POE Support: PoE (802.3af, class3)
  • Wifi Support: No

Lens
  • FOV: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
  • Focal Length: 2.8 mm to 12 mm, 4× optical zoom
  • Zoom Speed: Approx. 2 s (optical lens, wide-tele)
  • Working Distance: 10 mm to 1500 mm (wide-tele)
  • Aperture Range: F1.6 to F2.7

Smart Features
  • Basic Event Detection: Motion Detection, Video Tampering Detection, Exception
  • Smart Detection: Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
  • Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
  • ROI: Main stream, sub-stream, and third stream respectively support two fixed areas.

Network
  • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
  • Simultaneous Live View: Up to 20 channels
  • User/Host: Up to 32 users,3 levels: Administrator, Operator and User
  • Client: iVMS-4200, HikCentral, HiLookVision
  • Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

  • Image Enhancement: 3D DNR, BLC, HLC, Regional Exposure, Regional Focus
  • Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution: 2560 × 1440
  • Main Stream: 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Interface
  • Audio Input: 1-ch audio input (line in)
  • Audio Output: 1-ch audio output (line out)
  • Network Interface: 1 RJ45 10 M/100 M Ethernet, PoE
  • Built-in Microphone: 1 built-in microphone, picking up sounds in the radius up to 5 meters

Camera Module
  • Image Sensor: 1/3" progressive scan CMOS
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Gain: Auto/Manual
  • Shutter Time: 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
  • Day & Night: IR Cut Filter
  • Digital Zoom: 16×
  • Privacy Mask: 24 programmable privacy masks
  • Focus Mode: Auto/Semi-automatic/Manual
  • WDR: 120 dB WDR

General
  • Material: Aluminum alloy, PC, PC+ABS
  • Dimensions: Ø130.7 mm × 101.7 mm (Ø5.15" × 4.00")
  • Weight: Approx. 0.53 kg (1.17 lb)
  • Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power: 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
  • Working Temperature: -20°C to 60°C (-4°F to 140°F)
  • Working Humidity: ≤ 90%

Supplement Light
  • IR Distance: 20 m
  • Smart IR: Support

PTZ
  • Movement Range (Pan): 0° to 330°
  • Pan Speed: Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
  • Movement Range (Tilt): From 0° to 90°
  • Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
  • Proportional Zoom: Support
  • Presets: 300
  • Power-off Memory: Support

Compression Standard
  • H.264+: Support
  • H.265+: Support
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 Type: Main Profile
  • Video Bitrate: 32 Kbps to 16384 Kbps
  • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
  • SVC: Support
