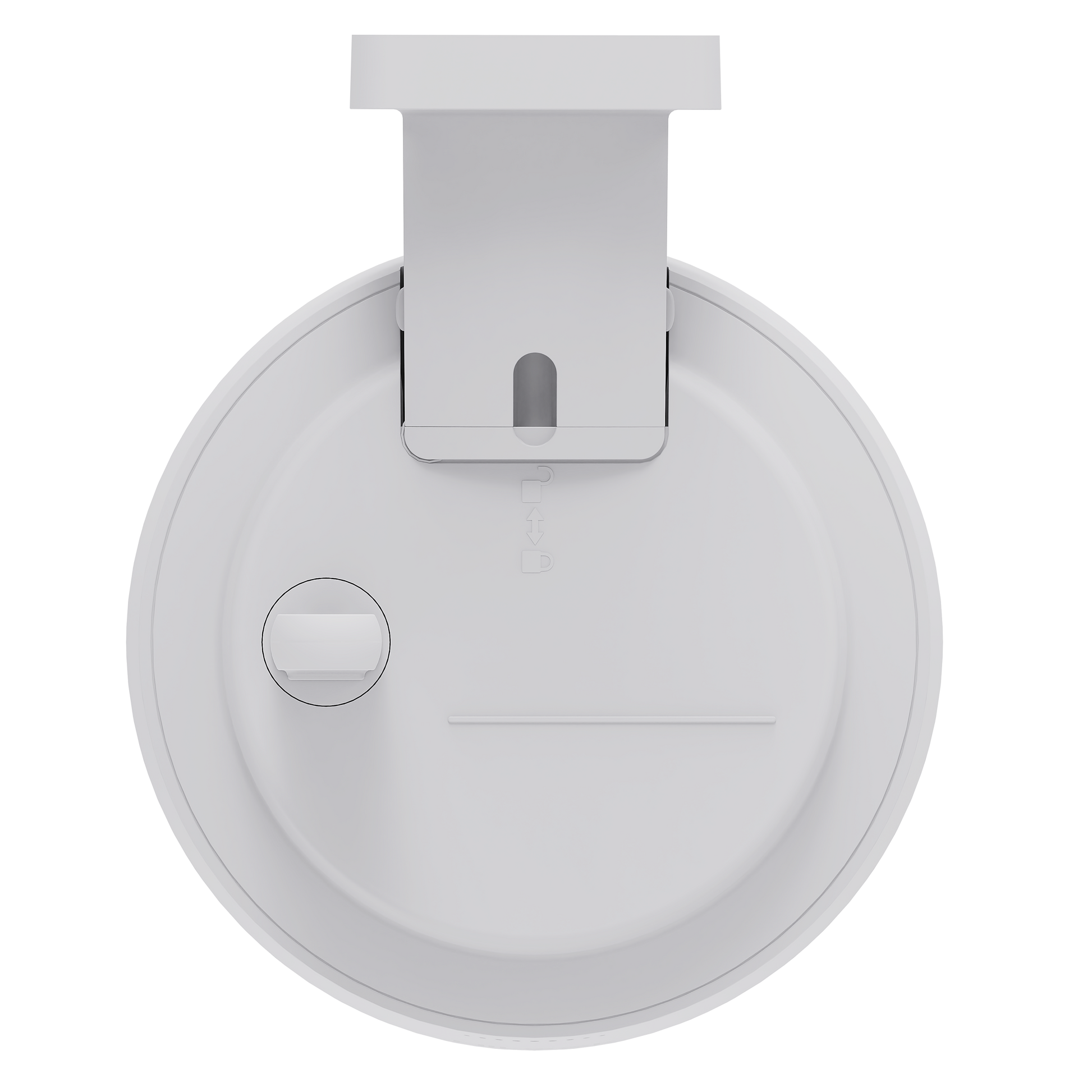

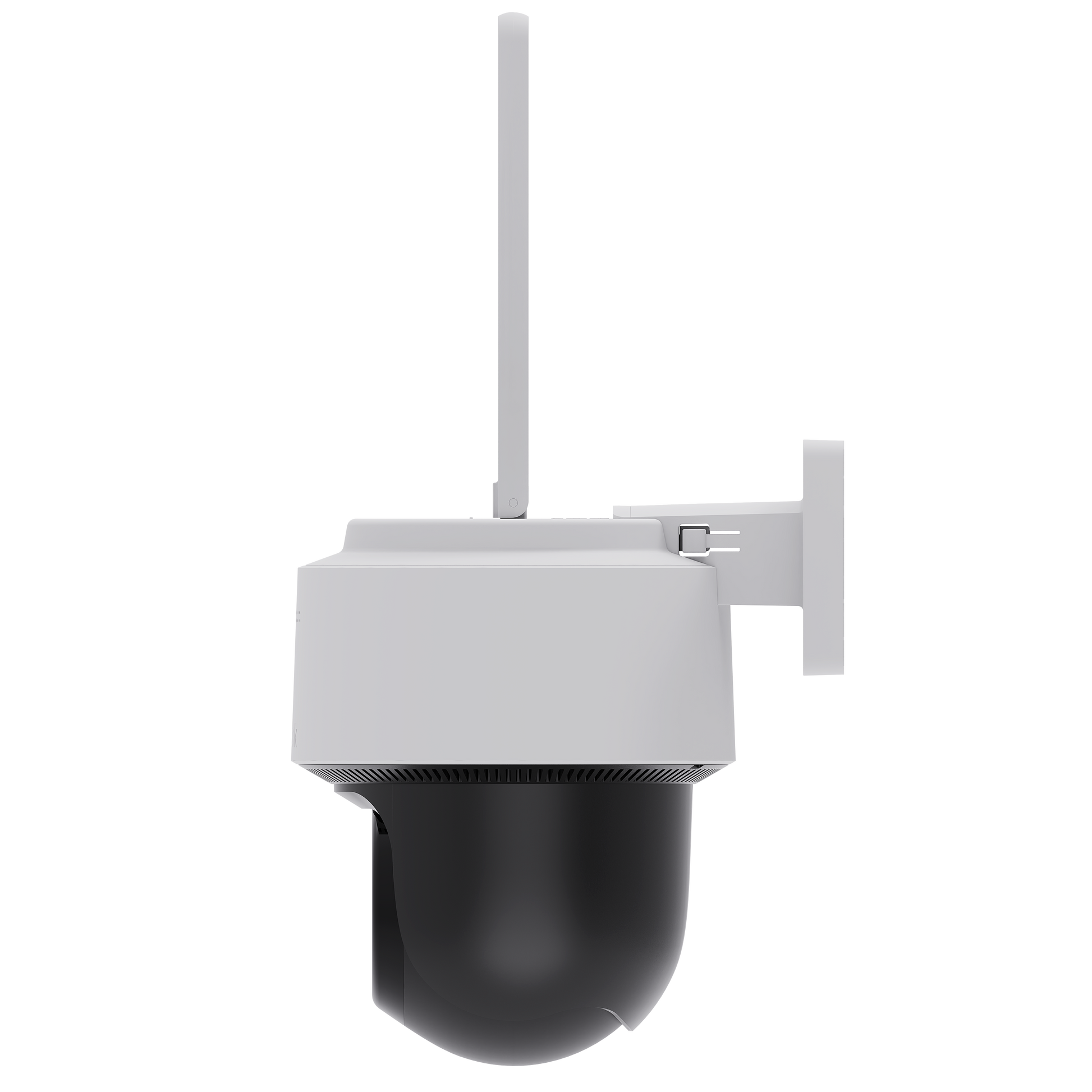

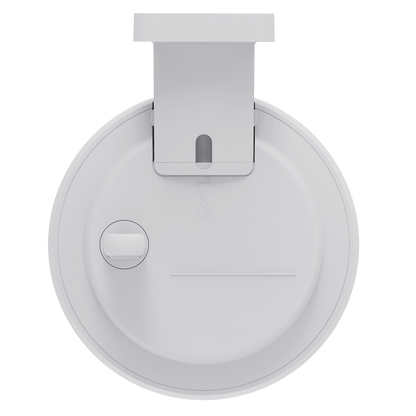

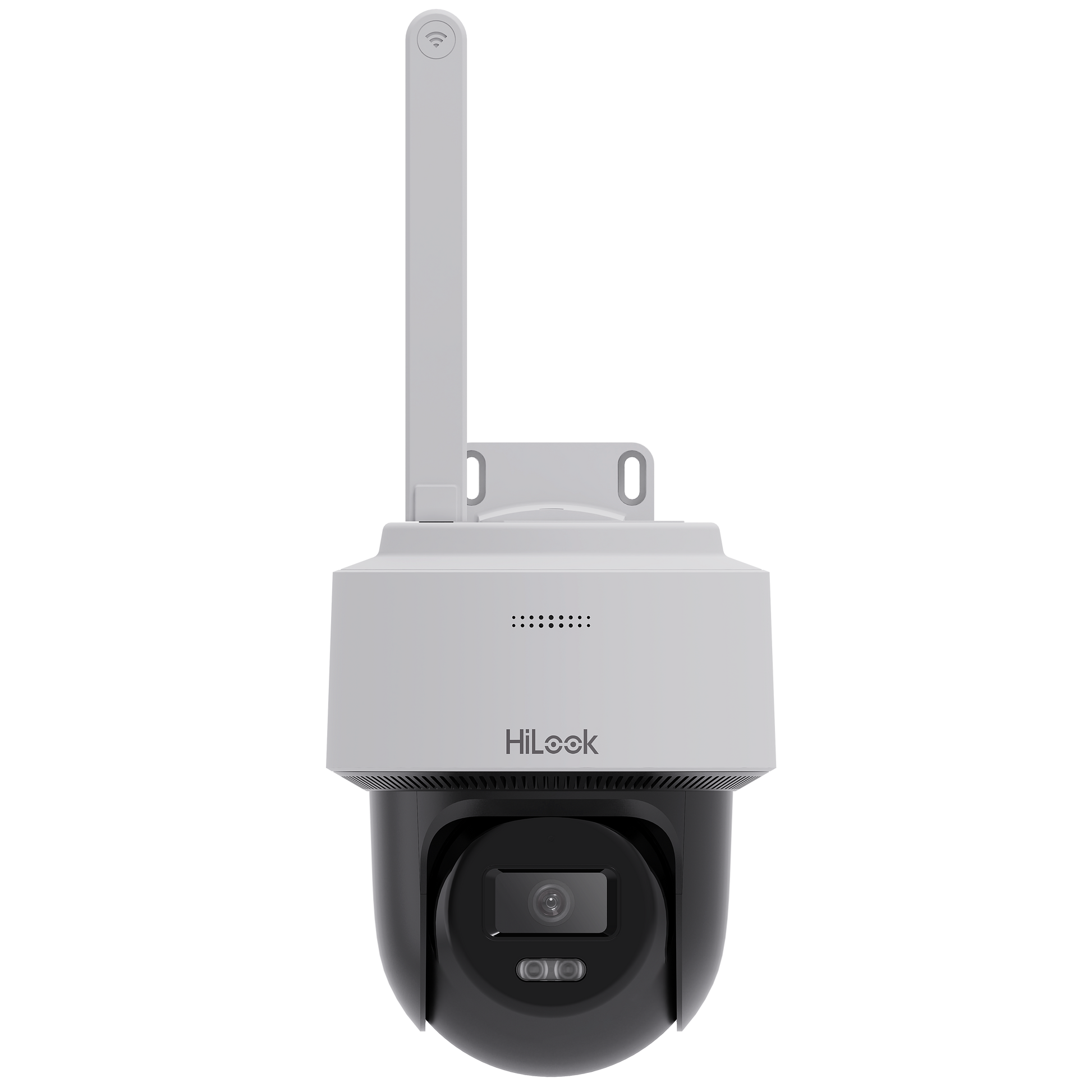

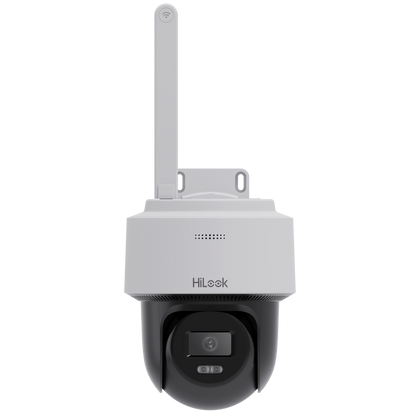

HiLook PTZ-N2C400I-W(W)(2.8mm) Specialist Camera | 4MP |
HiLook PTZ-N2C400I-W(W)(2.8mm) Specialist Camera | 4MP |
- IP CCTV
- 4 MP
- Fixed
· High quality imaging with 4 MP resolution
· Support Human Detection, Vehicle Detection, and Auto-tracking Lite
· EXIR 2.0, advanced infrared technology with long IR distance
· Hik-Connect cloud service and app for remote management and views of devices
· Built-in microphone and speaker for real-time audio security
· Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
· Water and dust resistant (IP66)
· Hik-Connect cloud service and app for remote management and views of devices
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook PTZ-N2C400I-W(W)(2.8mm) Specialist Camera | 4MP |
Specifications
- Image Sensor: 1/2.9" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR
- Focal Length: 2.8 mm, 4 mm
- FOV: 2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
- Aperture: F1.6
- Supplement Light Type: IR
- Supplement Light Range: IR distance: up to 30 m
- IR Wavelength: 850 nm
- Movement Range (Pan): 0° to 345°
- Movement Range (Tilt): 0° to 80°
- Pan Speed: Up to 25°/s
- Tilt Speed: Up to 20°/s
- Main Stream: 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
- Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264
- Video Bit Rate: 256 Kbps to 2 Mbps
- H.264 Type: Baseline profile,Main profile,High profile
- H.265 Type: Main profile
- Audio Compression: G.711,AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz,16 kHz
- Environment Noise Filtering: Yes
- Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS
- API: ONVIF, SDK
- Security: Password protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface
- Client: iVMS-4200, HiLookVision, Hik-Partner-Pro
- Encryption Mode: WPA-PSK/WPA2-PSK
- Wi-Fi Protocols: IEEE802.11b,IEEE802.11g,IEEE802.11n
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20 MHz
- Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
- Transfer Rate: 11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
- Wireless Range: Up to 50 m (The performance varies based on actual environment)
- Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software
- Wide Dynamic Range (WDR): Digital WDR
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in Microphone: 1 built-in microphone
- On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Speaker: 1 built-in speaker
- Basic Event: Motion detection (support alarm triggering by specified target type (human and vehicle)), exception
- Linkage: Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
- Power: 12 VDC ± 10%, 1 A, max. 10 W, Ø2 mm coaxial power plug, reverse polarity protection
- Dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")
- Weight: Camera weight: 565 g (1.25 lb.) With package weight: 1020 g (2.25 lb.)
- Material: Plastic
- Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
- General Function: heartbeat,mirror
- EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
- Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU)
- Protection: IP66 (IEC 60529-2013)
