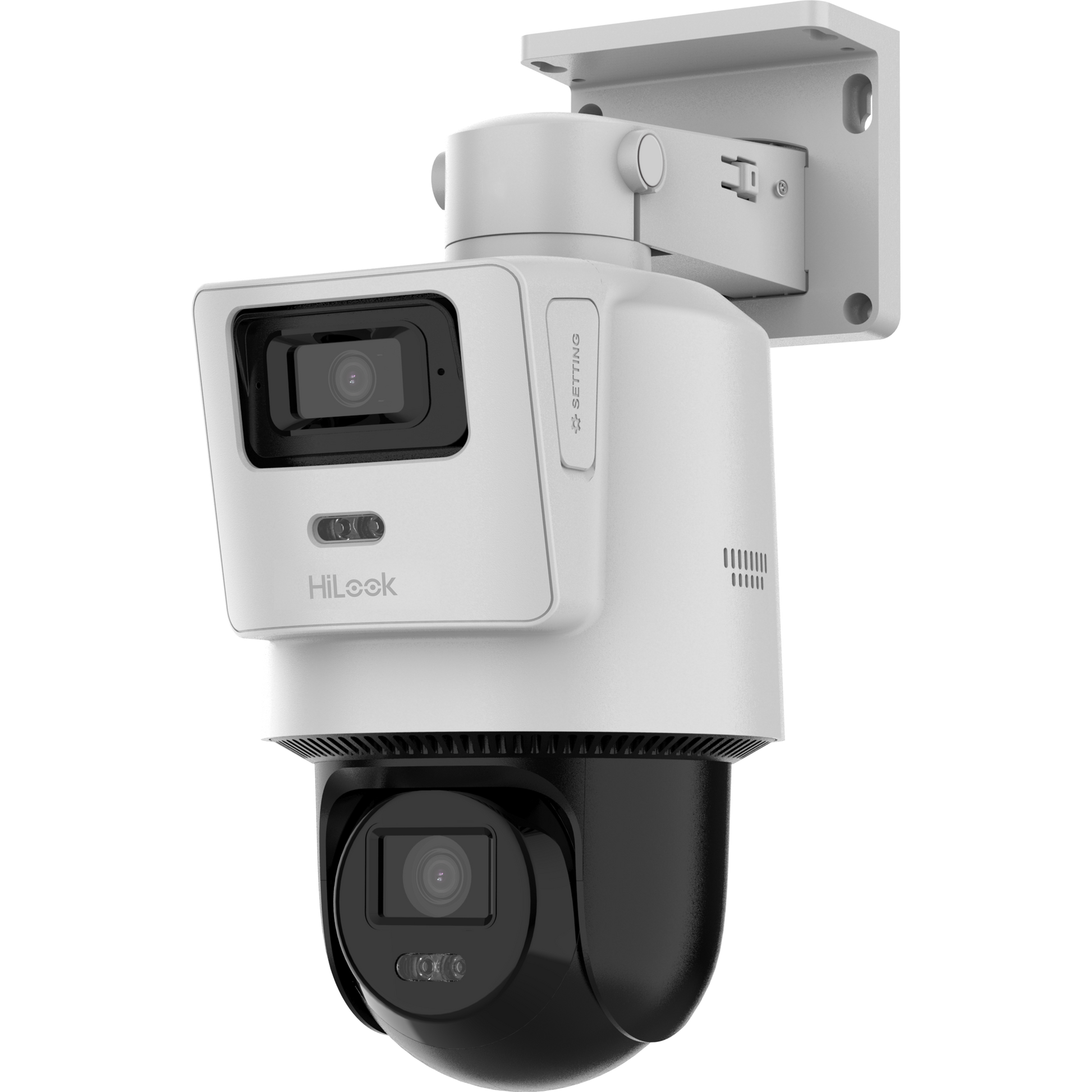

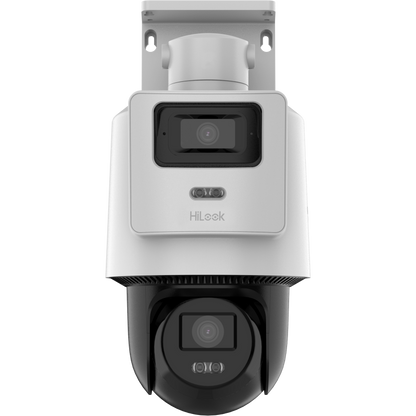

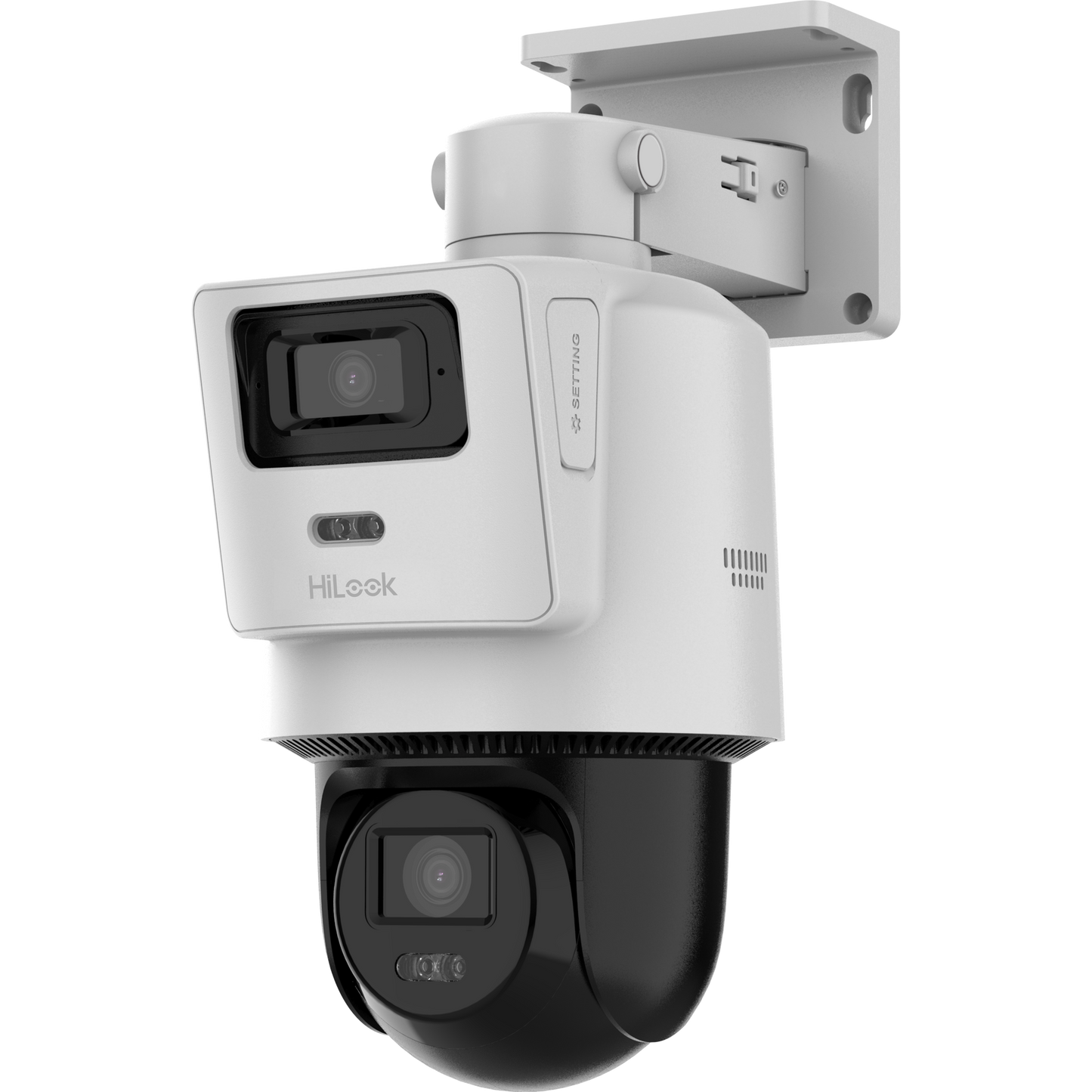

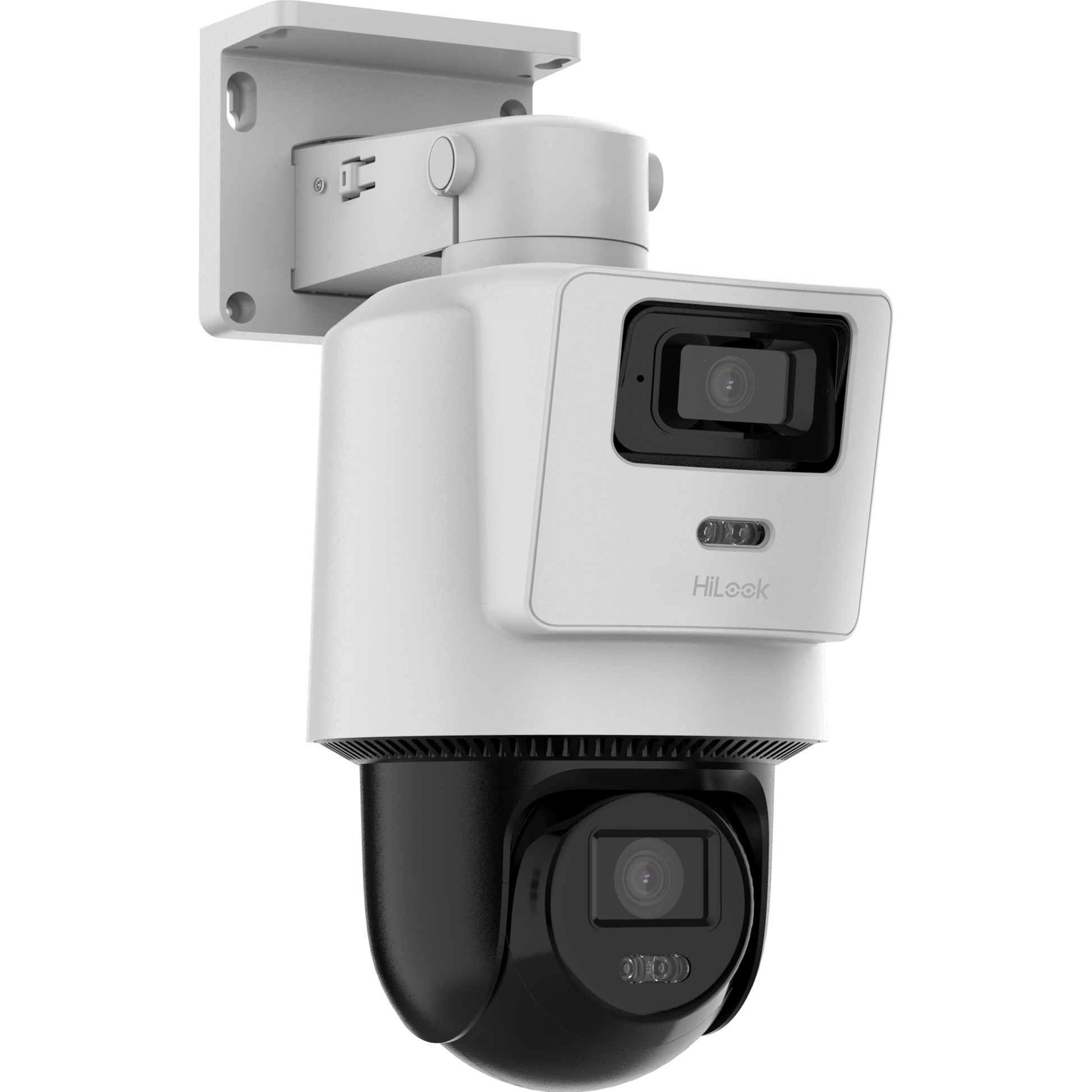

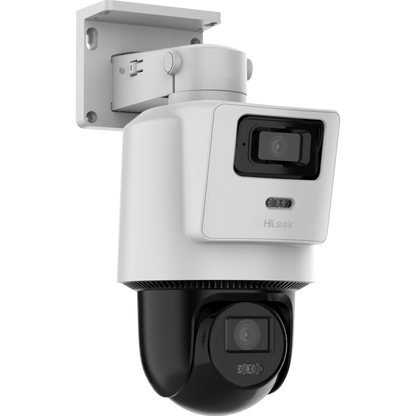

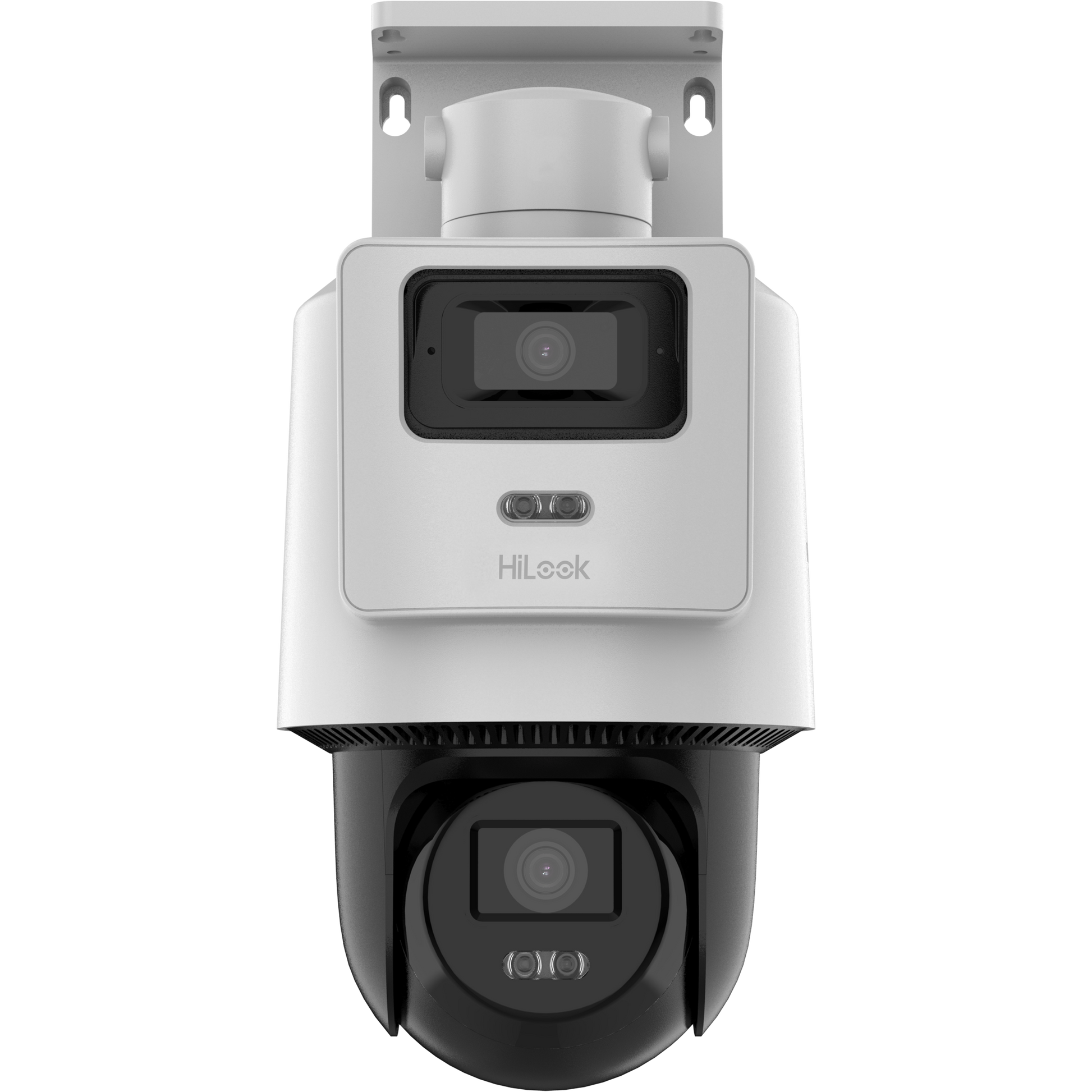

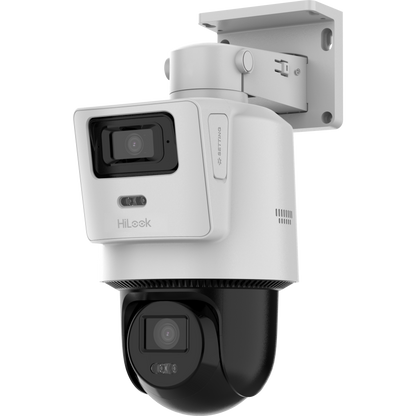

HiLook PTZ-N2D400M-DE/14(2.8/8mm) IP Camera | 4MP |
HiLook PTZ-N2D400M-DE/14(2.8/8mm) IP Camera | 4MP |
- IP CCTV
- 8 MP, 4 MP
- Fixed
· High quality imaging with 4 MP resolution
· Support Human Detection and Auto-tracking Lite
· Smart Hybrid Light: advanced technology with long range
· Hik-Connect cloud service and app for remote management and views of devices
· Built-in microphone and speaker for real-time audio security
· Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
· Water and dust resistant IP66
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook PTZ-N2D400M-DE/14(2.8/8mm) IP Camera | 4MP |
Specifications
- Image Sensor: [Bullet channel] 1/2.8" Progressive Scan CMOS [PTZ channel] 1/2.8" Progressive Scan CMOS
- Min. Illumination: [Bullet channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR [PTZ channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR
- Shutter Speed: 1 s to 1/30,000 s
- Slow Shutter: Yes
- Day & Night: ICR
- Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
- FOV: [Panoramic channel] horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°, [PTZ channel] horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°
- Aperture: [Bullet channel] F1.6, [PTZ channel] F1.6
- Supplement Light Type: [Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
- Smart Supplement Light: Yes
- Supplement Light Range: [Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
- Movement Range (Pan): [Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
- Movement Range (Tilt): [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
- Pan Speed: Pan speed: configurable from 4° to 25°/s, preset speed: 25°/s
- Tilt Speed: Tilt speed: configurable from 4° to 20°/s, preset speed 20°/s
- Presets: 300
- Power-off Memory: Yes
- Scalable Video Coding (SVC): Yes
- Region of Interest (ROI): 1 fixed region for main stream
- Main Stream: [Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream: [Bullet channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression: Main stream: H.265/H.264/Smart264/Smart265, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 4 Mbps
- H.264 Type: Baseline profile,Main profile,High profile
- H.265 Type: Main profile
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- Protocols: TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Client: iVMS-4200,HiLookVision
- Web Browser: Chrome 31 to 44, Firefox 30 to 51, Safari 8.0+
- Image Settings: Saturation, brightness, contrast, sharpness
- Wide Dynamic Range (WDR): Digital WDR
- SNR: ≥ 52 dB
- Day/Night Switch: Day,night,auto,schedule
- Image Enhancement: BLC,HLC,3D DNR
- Privacy Mask: [Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks
- Image Parameters Switch: Yes
- Ethernet Interface: 1 RJ45 10 M/100M self-adaptive Ethernet port
- On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset: Yes
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), exception
- Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
- Material: PC
- General Function: Mirror,password protection,watermark,IP address filter
- Power: 12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 21.5 W
- Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
- Dimension: 134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5")
- Weight: Weight: 1000 g (2.2 lb.) With Package Weight: 1500 g (3.3 lb.)
- Protection: IP66 Standard, Surge Protection and Voltage Transient Protection
Resources
Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.
-
Resource 1
PDF -
Resource 2
PDF
