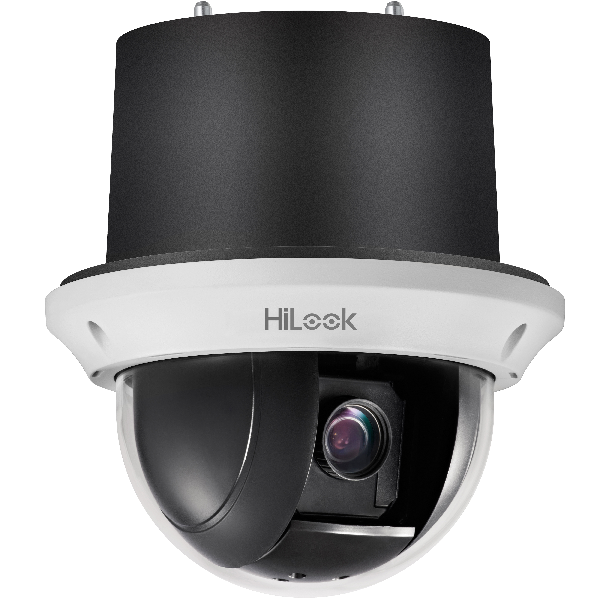

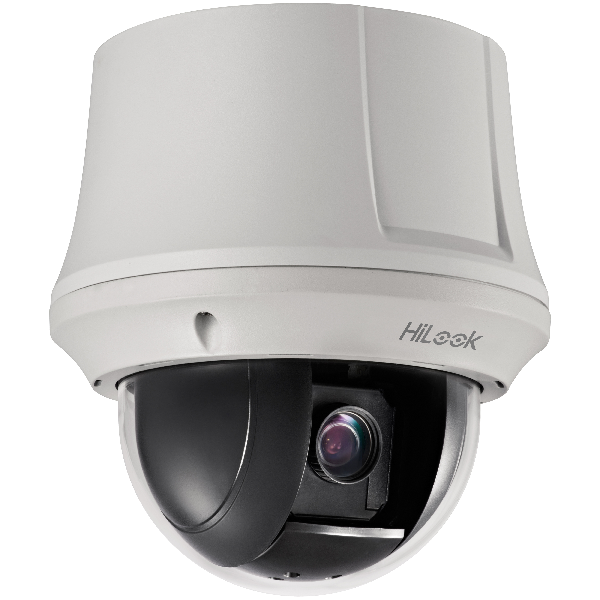

HiLook PTZ-N4215-DE3(O-STD)(G) IP Camera | 2MP |
HiLook PTZ-N4215-DE3(O-STD)(G) IP Camera | 2MP |
- IP CCTV
- 2 MP
1/2.8" Progressive CMOS, 1920x1080:25fps(P)/30fps(N),15X, Color:0.005Lux@F1.6, B/W:0.001Lux@F1.6, H.265+&H.265, IP66, 120dB WDR,12 VDC & PoE+,24 privacy masks
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook PTZ-N4215-DE3(O-STD)(G) IP Camera | 2MP |
Specifications
- FOV: Horizontal field of view: 53.8° to 4.0° (wide-tele),Vertical field of view: 31.9° to 2.3° (wide-tele),Diagonal field of view: 60.4° to 4.6°(wide-tele)
- Focal Length: 5 mm to 75 mm, 15× optical
- Zoom Speed: Approx. 2.4 s (optical lens, wide-tele)
- Working Distance: 10 mm to 1500 mm (wide-tele)
- Aperture Range: F1.6 to F3.0
- Basic Event Detection: Motion Detection, Video Tampering Detection, Exception Detection
- Smart Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
- Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
- ROI: Main stream, sub-stream and third stream respectively support four fixed areas.
- Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users. ,3 levels: Administrator, Operator and User
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
- Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolution: 1920 × 1080
- Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Network Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
- AGC: Auto/Manual
- Image Sensor: 1/2.8" progressive scan CMOS
- Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON)
- White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Shutter Time: 1/1 s to 1/30,000 s
- Day & Night: IR Cut Filter
- Digital Zoom: 16×
- Privacy Mask: 24 programmable privacy masks
- Focus Mode: Auto/Semi-automatic/Manual
- WDR: 120 dB WDR
- Material: ADC 12, PC, PMMA
- Dimensions: Φ165 mm × 168 mm (Φ 6.5"×6.6") (In-ceiling mounting indoor model)
- Weight: Approx. 2 kg (4.41 lb)
- Protection Level: TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Power: 12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max.: 18 W
- Working Temperature: -10°C to 55°C (14°F to 131°F)
- Working Humidity: ≤ 90%
- Movement Range (Pan): 360° endless
- Pan Speed: Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
- Movement Range (Tilt): From 0° to 90° (Auto-flip)
- Tilt Speed: Configurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s
- Proportional Zoom: Support
- Presets: 300
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Power-off Memory: Support
- Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status Display: Support
- Preset Freezing: Support
- Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
- H.264+: Support
- H.265+: Support
- H.264 Type: Baseline Profile/Main Profile/High Profile
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
- H.265 Type: Main Profile
- Video Bitrate: 32 Kbps to 16384 Kbps
- SVC: Support
