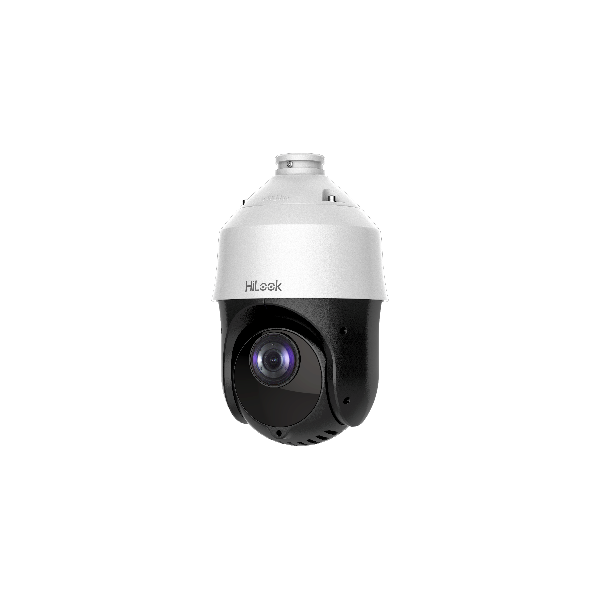

HiLook PTZ-N4225I-DE(O-STD)(H) IP Camera | 2MP |
HiLook PTZ-N4225I-DE(O-STD)(H) IP Camera | 2MP |
- IP CCTV
- 2 MP
1/2.8" Progressive CMOS, 1920x1080:25fps(P)/30fps(N),25X, Color:0.005Lux@F1.6, B/W:0.001Lux@F1.6, H.265+&H.265, IP66, 120dB WDR, IR:100m,12 VDC & PoE+,24 privacy masks
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook PTZ-N4225I-DE(O-STD)(H) IP Camera | 2MP |
Specifications
- Image Sensor: 1/2.8" progressive scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
- Shutter Speed: 1/1 s to 1/30,000 s
- Day & Night: IR Cut Filter
- Zoom: 25x optical, 16x digital
- Focal Length: 4.8 mm to 120 mm, 25× optical
- FOV: Horizontal field of view: 57.6° to 2.5° (Wide-Tele), Vertical field of view: 34.4° to 1.4° (Wide-Tele), Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
- Focus: Auto, semi-auto, manual
- Aperture: F1.6 to F3.5
- Zoom Speed: Approx. 3.2 s (optical lens, wide-tele)
- Supplement Light Type: IR
- Supplement Light Range: Up to 100 m
- Smart Supplement Light: Yes
- Movement Range (Pan): 360° endless
- Movement Range (Tilt): From -15° to 90° (Auto-flip)
- Pan Speed: Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
- Tilt Speed: Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
- Proportional Pan: Yes
- Presets: 300
- Preset Freezing: Yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status Display: Yes
- Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
- Power-off Memory: Yes
- Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16384 Kbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): Main stream, sub-stream and third stream respectively support four fixed areas
- Audio Compression: G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface, ISAPI, SDK, ISUP
- User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
- Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network Storage: NAS (NPS, SMB/ CIPS), ANR
- Client: iVMS-4200, HiLookVision
- Web Browser: IE10-11, Chrome 57+, Firefox 52+, Safari 12+
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR): 120 dB
- Defog: Digital defog
- Image Stabilization: No
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 24 programmable privacy masks
- Regional Focus: Yes
- Regional Exposure: Yes
- Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4)
- On-board Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
- Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Basic Event: Motion Detection, Video Tampering Detection, Exception Detection
- Smart Event: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection
- Power: 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max.:18 W (IR Max.6 W)

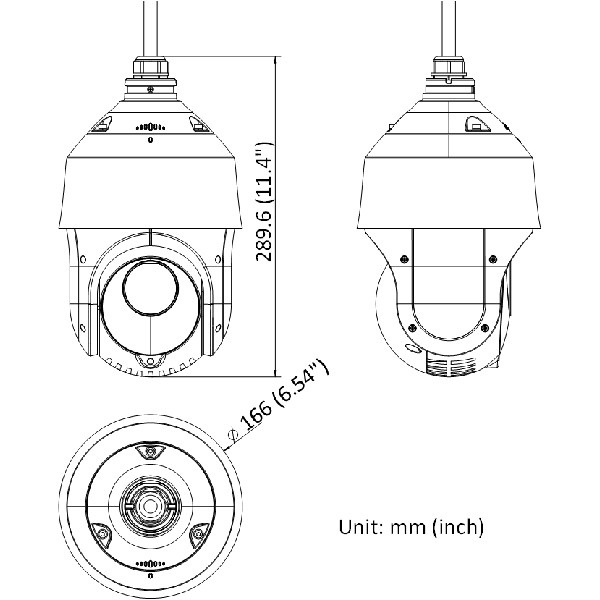

- Dimension: Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42")
- Weight: Approx. 2.5 kg (5.51 lb)
- Material: ADC 12, PC+10% GF
- Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP66 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
