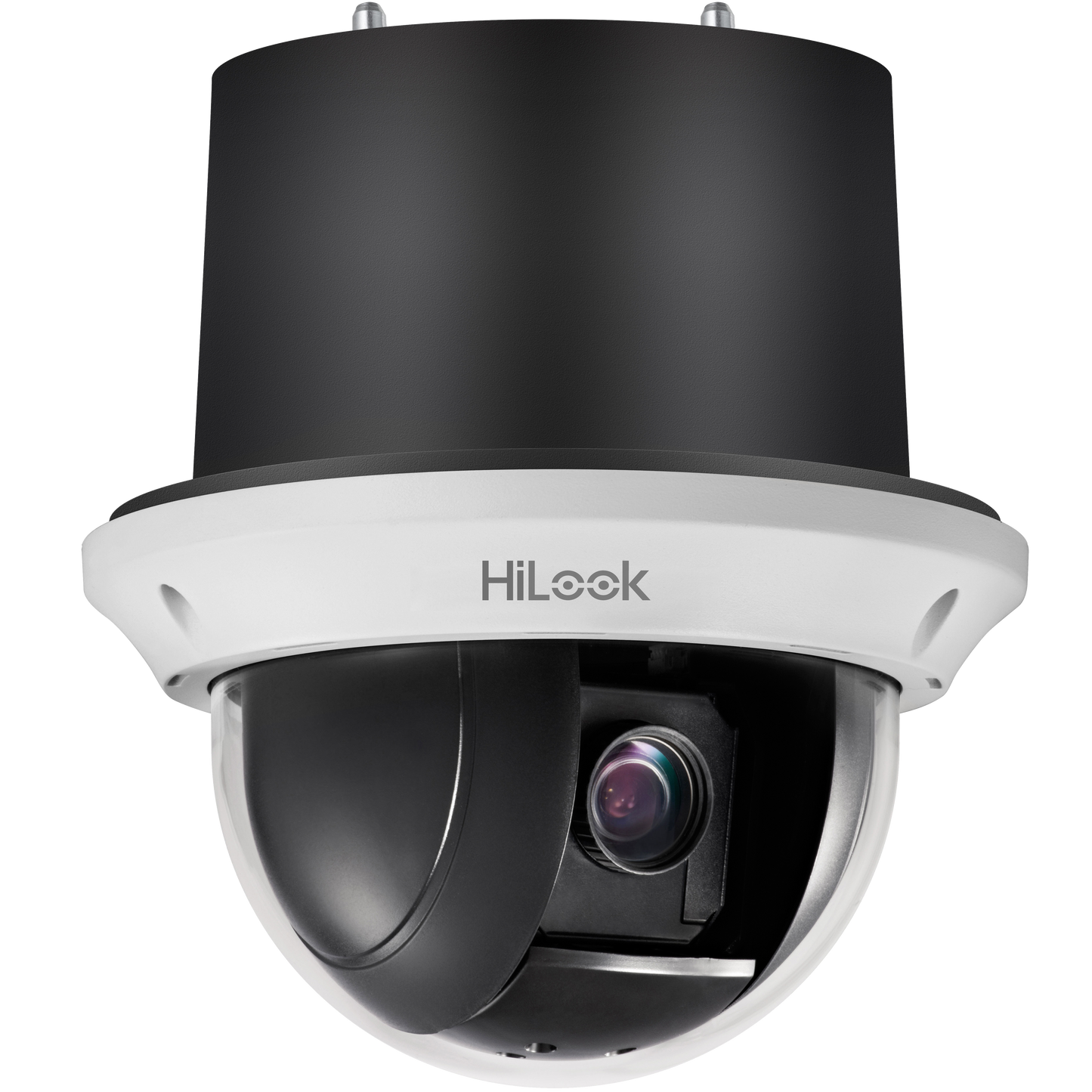

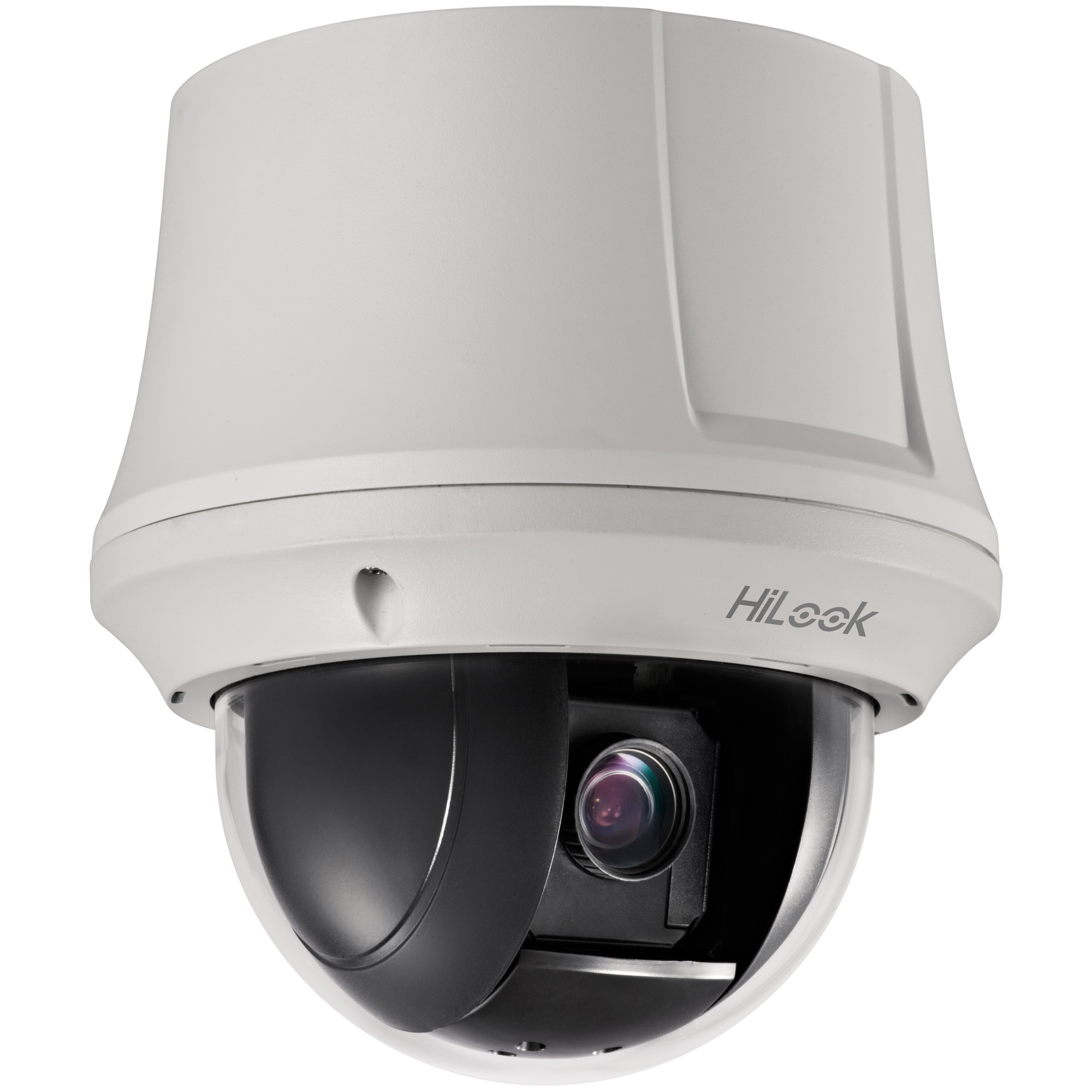

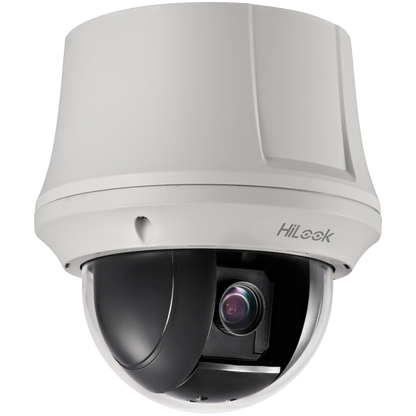

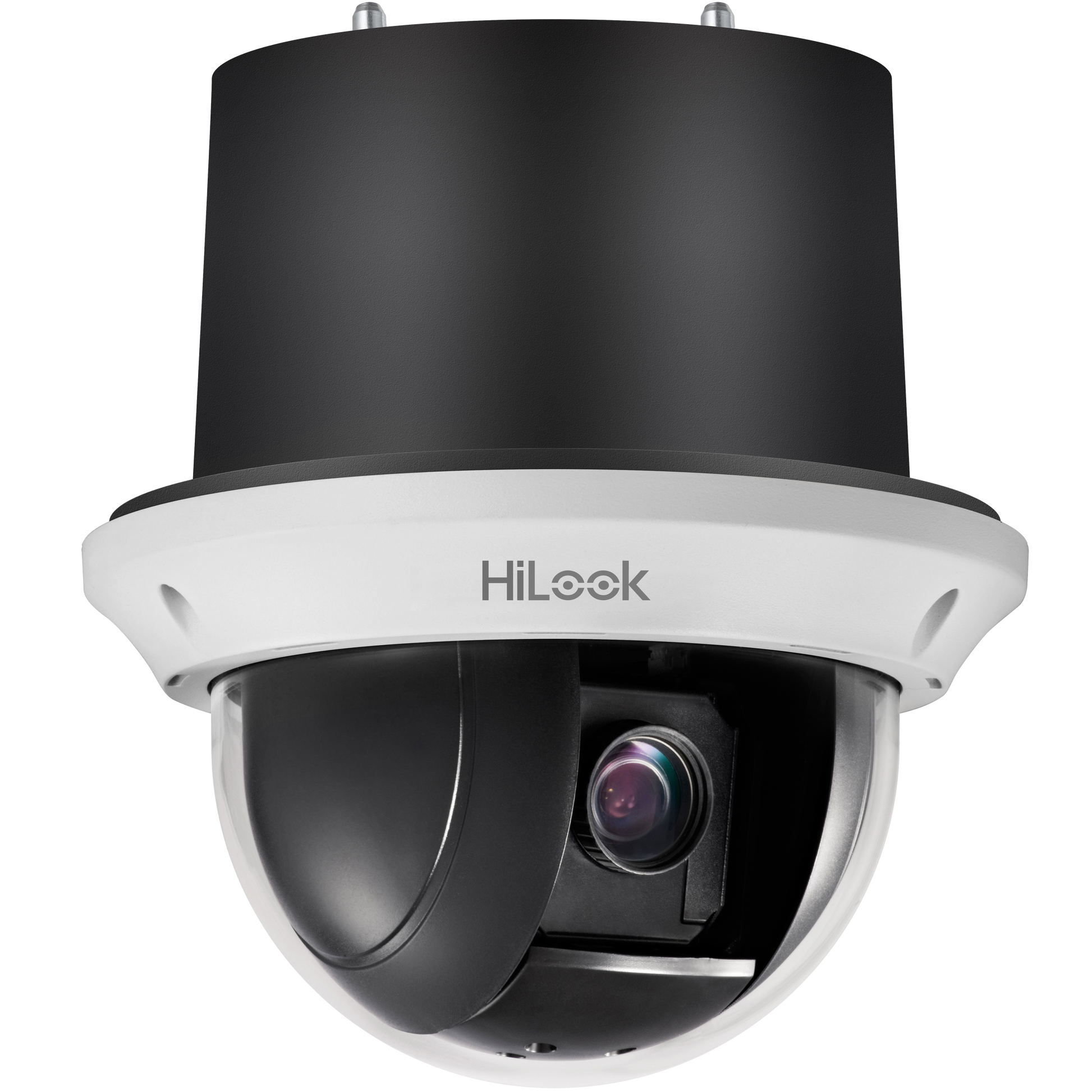

HiLook PTZ-T4215-D3(D) TVI | 2MP | PTZ
HiLook PTZ-T4215-D3(D) TVI | 2MP | PTZ
- HD COAX CCTV
- 2 MP
1/2.8" Progressive CMOS, 1920x1080:25fps(P)/30fps(N),15X, Color:0.005Lux@F1.6, B/W:0.001Lux@F1.6, IP66, 120dB WDR, 12 VDC
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook PTZ-T4215-D3(D) TVI | 2MP | PTZ
Specifications
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON)
- Shutter Speed: PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
- Day & Night: IR cut filter
- Zoom: 15 × optical, 16 × digital
- Focal Length: 5 mm to 75 mm, 15 × optical
- FOV: Horizontal FOV: 53.8° to 4.0° (wide to tele)
- Focus: Auto, semi-auto, manual
- Aperture: F1.6 to F3.5
- Zoom Speed: Approx. 2.4 s (optical, wide to tele)
- Movement Range (Pan): 360° endless
- Movement Range (Tilt): -5° to 90° (auto flip)
- Pan Speed: Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s
- Tilt Speed: Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
- Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
- Presets: 256
- Preset Freezing: Yes
- Patrol Scan: 10 patrols, up to 32 presets for each patrol
- Pattern Scan: 5 patterns, record time over 10 minutes for each scan
- Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status Display: Yes
- Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-off Memory: Yes
- Frame Rate: 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
- Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)
- Image Settings: AGC, white balance
- Wide Dynamic Range (WDR): ≥ 120 dB
- Image Stabilization: EIS
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 8 programmable privacy masks
- Regional Focus: Yes
- Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- Alarm: 2 alarm inputs, 1 alarm output
- RS-485: Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- Power: 12 VDC, max. 12 W
- Dimension: Ø 165 mm × 168 mm (Ø 6.5" × 6.6")
- Weight: Approx. 2 kg (4.41 lb.)
- Operating Condition: -10° C to 50° C (14° F to 122° F). Humidity 90% or less
- Language: English
- Protection: TVS 4,000 V lightning protection, surge protection and voltage transient protection
