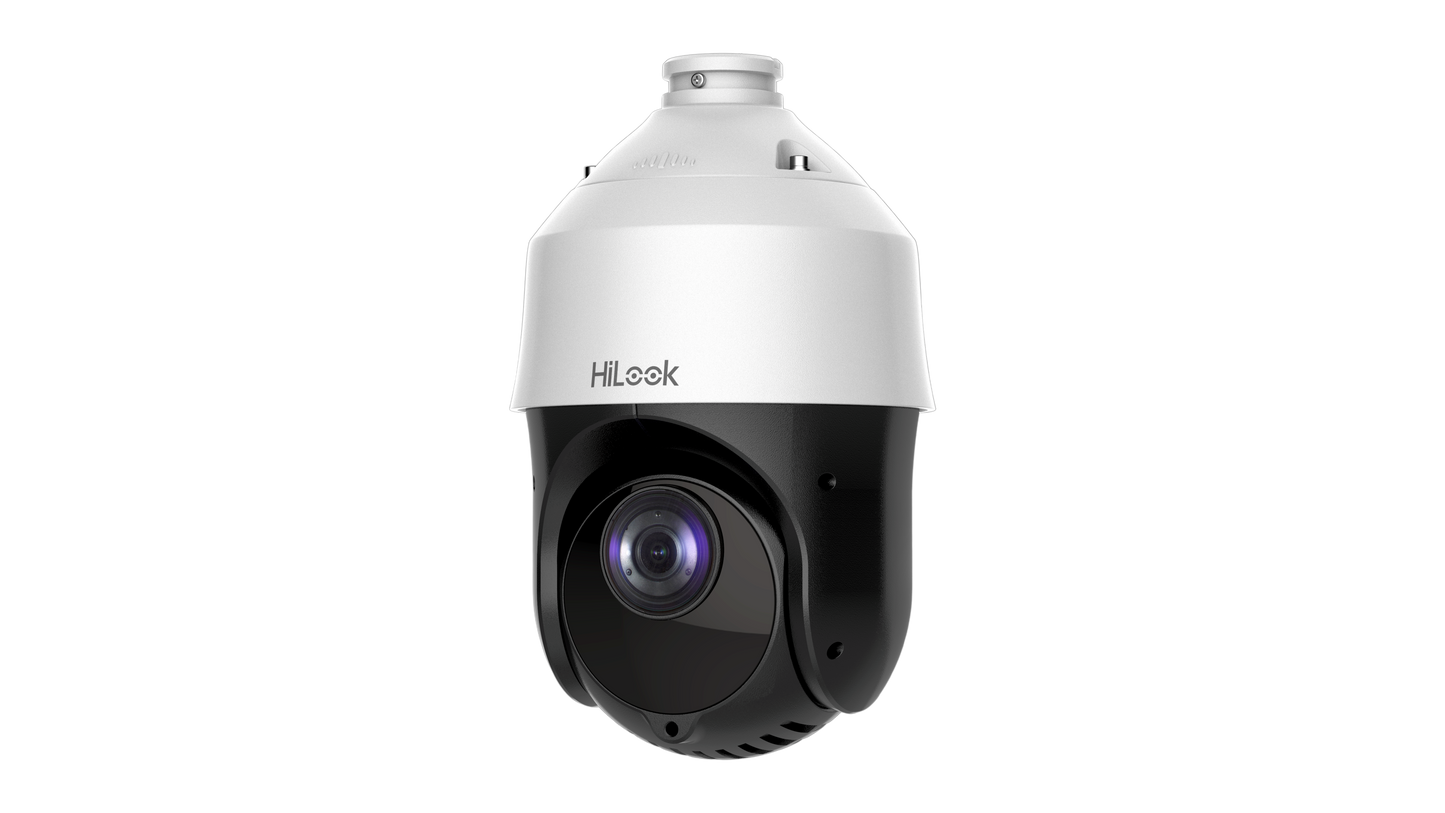

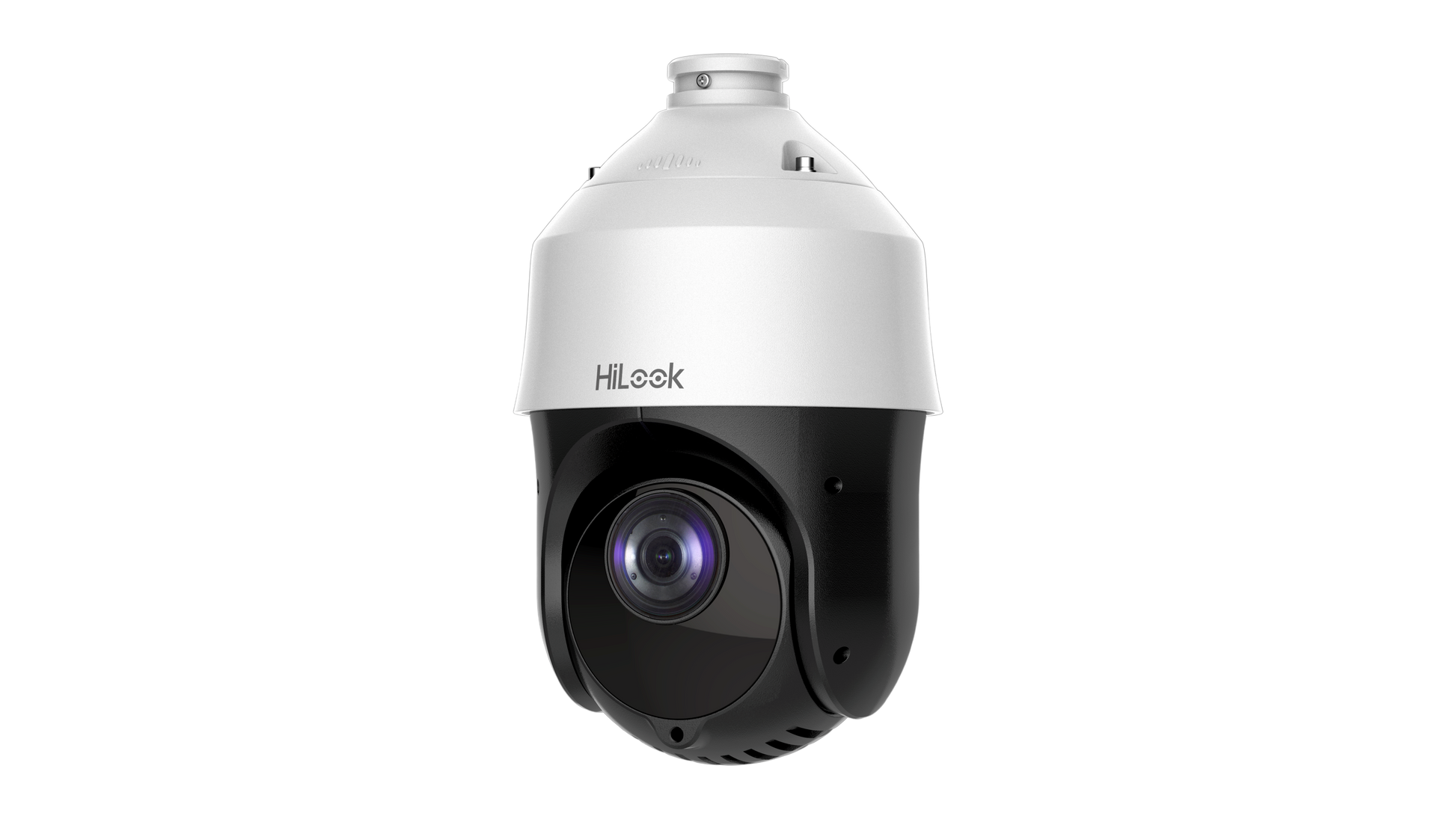

• PTZ-T4215I-D

HiLook PTZ-T4215I-D(E) TVI | 2MP | PTZ

HiLook PTZ-T4215I-D(E) TVI | 2MP | PTZ

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 2 MP

1/2.8" Progressive CMOS, 1920x1080:25fps(P)/30fps(N),15X, Color:0.005Lux@F1.6, B/W:0.001Lux@F1.6, IP66, 120dB WDR, IR:100m, 12 VDC. FREE mounting bracket is included

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook PTZ-T4215I-D(E) TVI | 2MP | PTZ
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
  • Shutter Speed: PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
  • Day & Night: IR cut filter
  • Zoom: 15× optical, 16 × digital
  • Focal Length: 5 mm to 75 mm, 15 × optical
  • FOV: Horizontal FOV: 53.8° to 4.0° (wide to tele)
  • Focus: Auto, semi-auto, manual
  • Aperture: F1.6 to F3.5
  • Zoom Speed: Approx. 2.4 s (optical, wide to tele)
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 100 m
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
  • Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Preset Freezing: Yes
  • Patrol Scan: 10 patrols, up to 32 presets for each patrol
  • Pattern Scan: 5 patterns, record time over 10 minutes for each scan
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: Yes
  • Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Power-off Memory: Yes
  • Frame Rate: 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
  • Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)
  • Image Settings: AGC, white balance
  • Wide Dynamic Range (WDR): ≥ 120 dB
  • Image Stabilization: EIS
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable privacy masks
  • Regional Focus: Yes
  • Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • RS-485: Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • Power: 12 VDC, max. 20 W (IR: 7 W)
  • Dimension: Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4")
  • Weight: Approx. 2 kg (4.41 lb.)
  • Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
  • Language: English
  • Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
  • Shutter Speed: PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
  • Day & Night: IR cut filter
  • Zoom: 15× optical, 16 × digital

Lens
  • Focal Length: 5 mm to 75 mm, 15 × optical
  • FOV: Horizontal FOV: 53.8° to 4.0° (wide to tele)
  • Focus: Auto, semi-auto, manual
  • Aperture: F1.6 to F3.5
  • Zoom Speed: Approx. 2.4 s (optical, wide to tele)

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 100 m

PTZ
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
  • Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Preset Freezing: Yes
  • Patrol Scan: 10 patrols, up to 32 presets for each patrol
  • Pattern Scan: 5 patterns, record time over 10 minutes for each scan
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: Yes
  • Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Power-off Memory: Yes

Video
  • Frame Rate: 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)

Network
  • Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)

  • Image Settings: AGC, white balance
  • Wide Dynamic Range (WDR): ≥ 120 dB
  • Image Stabilization: EIS
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable privacy masks
  • Regional Focus: Yes

Interface
  • Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • RS-485: Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
  • Power: 12 VDC, max. 20 W (IR: 7 W)
  • Dimension: Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4")
  • Weight: Approx. 2 kg (4.41 lb.)
  • Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
  • Language: English

Approval
  • Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
