• PTZ-T5225I-A

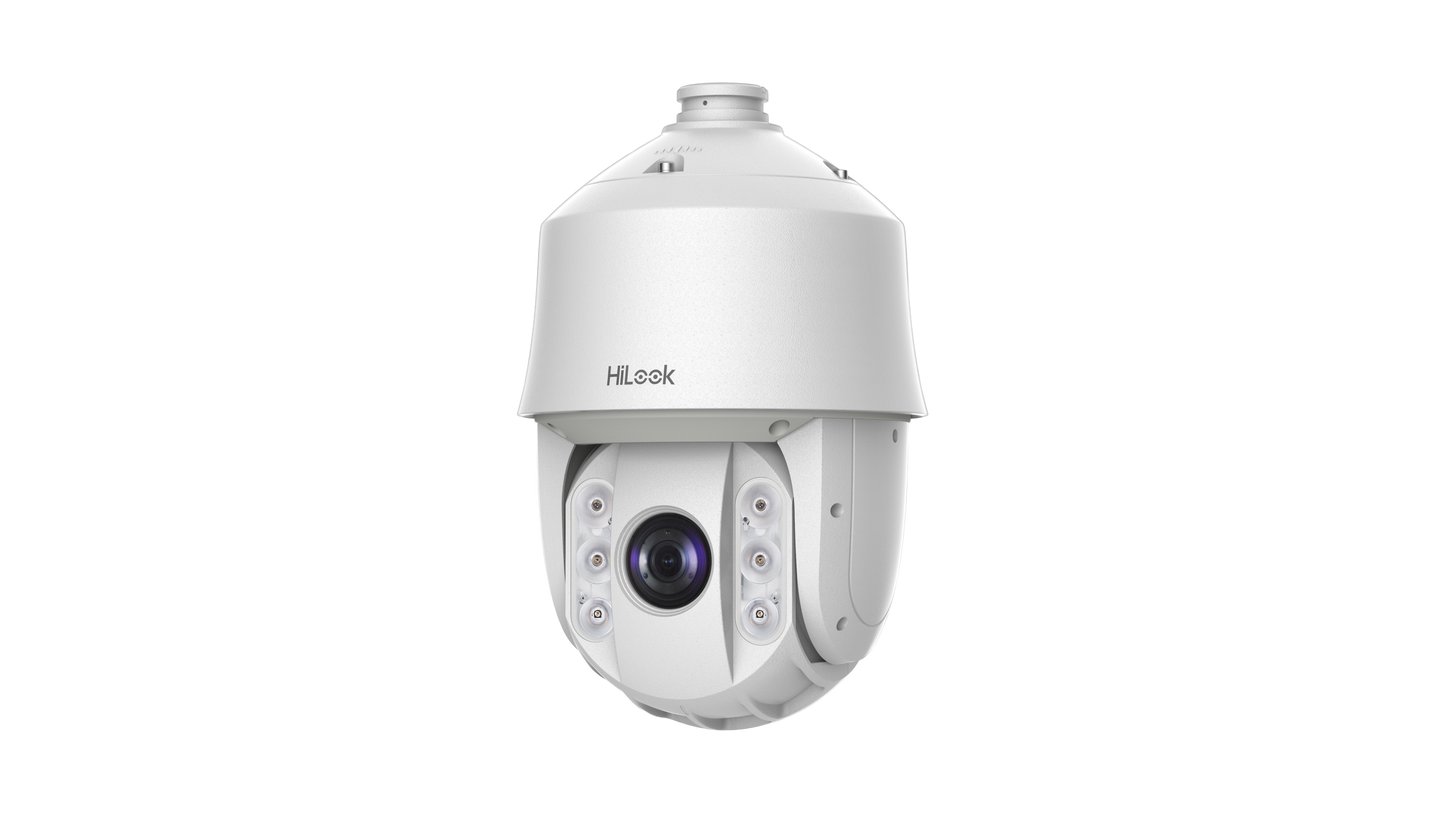

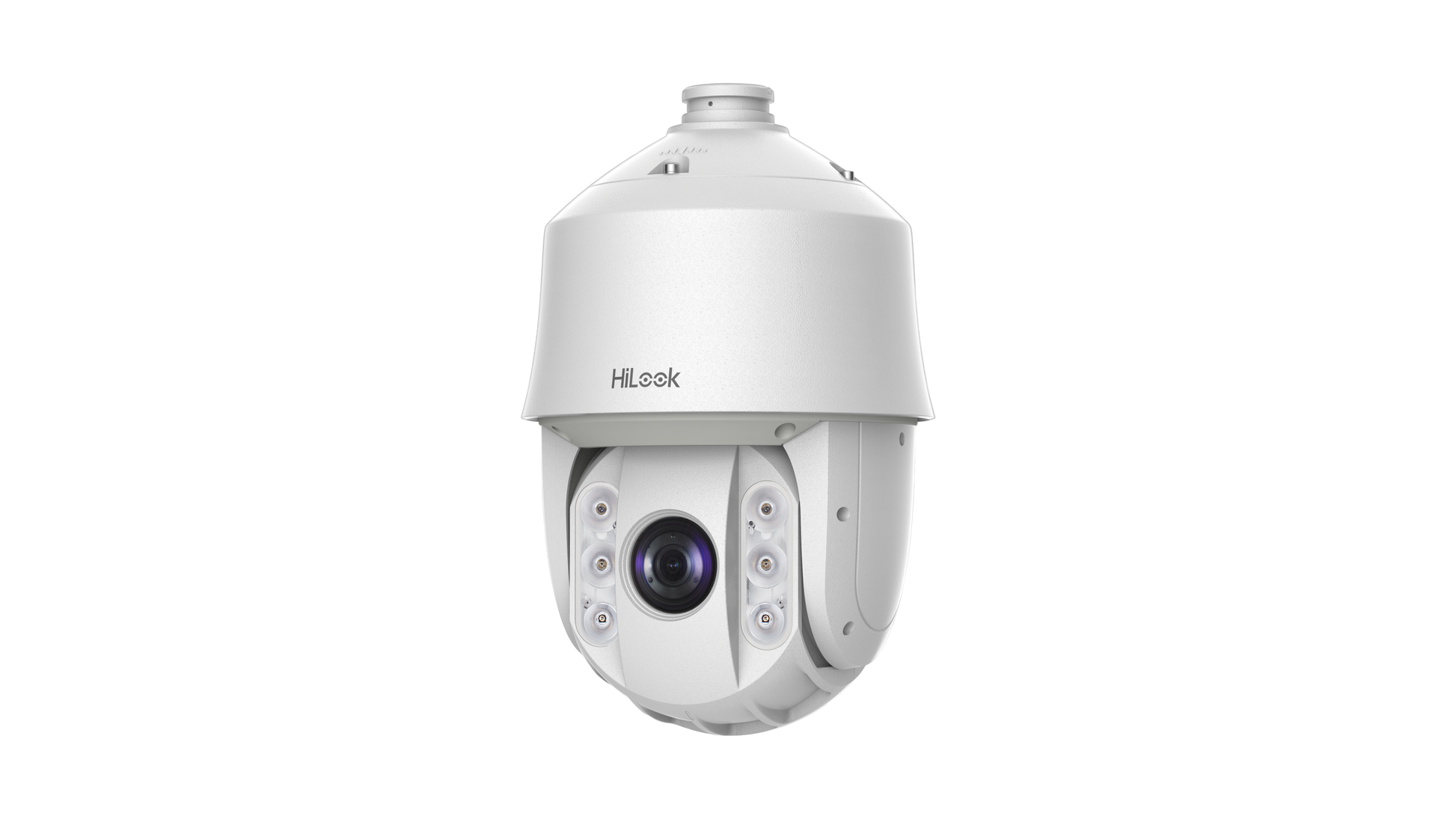

HiLook PTZ-T5225I-A(E) TVI | 2MP | PTZ

HiLook PTZ-T5225I-A(E) TVI | 2MP | PTZ

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 2 MP

1/2.8" HD progressive scan CMOS, 1920 × 1080 resolution, 25× optical zoom, 16× digital zoom , 120 dB true WDR (Wide Dynamic Range). Up to 150 m IR distance, 3D intelligent positioning. Switchable TVI/AHD/CVI/CVBS video output. FREE mounting bracket is included

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook PTZ-T5225I-A(E) TVI | 2MP | PTZ
Login to View Price

Specifications

  • Focal Length: 4.8 mm to 120 mm, 25 × Optical
  • Zoom Speed: Approx. 3.6 s (optical, wide to tele)
  • Working Distance: 10 mm to 1500 mm (wide to tele)
  • Aperture Range: F 1.6 to F 3.5
  • Horizontal Field of View: 57.6° to 2.5° (wide to tele)
  • Max. Resolution: 1920 × 1080
  • Frame Rate: 50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
  • AGC: Auto/Manual
  • DNR: 3D DNR
  • Regional Focus: Yes
  • Image Sensor: 1/2.8"progressive scan CMOS
  • Model: PTZ-T5225I-A(C)
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 lux with IR
  • White Balance: Auto/Hauto/Manual/ATW/Indoor/Outdoor
  • Shutter Time: PAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
  • Day & Night: IR cut filter
  • Digital Zoom: 16×
  • Privacy Mask: 8 programmable privacy masks
  • Focus Mode: Auto/Semiauto/Manual
  • WDR: ≥ 120 dB
  • BLC: Yes
  • HLC: Yes
  • EIS: Yes
  • Movement Range (Pan): 360° endless
  • Pan Speed: Pan manual speed: 0.1° to 120°/s,Pan preset speed: 120°/s
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
  • Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Patrol Scan: 10 patrols, up to 32 presets per patrol
  • Pattern Scan: 5 patterns, with the total recording time no less than 10 minutes
  • Power-off Memory: Yes
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: ON/OFF
  • Preset Freezing: Yes

Lens
  • Focal Length: 4.8 mm to 120 mm, 25 × Optical
  • Zoom Speed: Approx. 3.6 s (optical, wide to tele)
  • Working Distance: 10 mm to 1500 mm (wide to tele)
  • Aperture Range: F 1.6 to F 3.5
  • Horizontal Field of View: 57.6° to 2.5° (wide to tele)

  • Max. Resolution: 1920 × 1080

Camera Module
  • Frame Rate: 50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
  • AGC: Auto/Manual
  • DNR: 3D DNR
  • Regional Focus: Yes
  • Image Sensor: 1/2.8"progressive scan CMOS
  • Model: PTZ-T5225I-A(C)
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 lux with IR
  • White Balance: Auto/Hauto/Manual/ATW/Indoor/Outdoor
  • Shutter Time: PAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
  • Day & Night: IR cut filter
  • Digital Zoom: 16×
  • Privacy Mask: 8 programmable privacy masks
  • Focus Mode: Auto/Semiauto/Manual
  • WDR: ≥ 120 dB
  • BLC: Yes
  • HLC: Yes
  • EIS: Yes

PTZ
  • Movement Range (Pan): 360° endless
  • Pan Speed: Pan manual speed: 0.1° to 120°/s,Pan preset speed: 120°/s
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
  • Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Patrol Scan: 10 patrols, up to 32 presets per patrol
  • Pattern Scan: 5 patterns, with the total recording time no less than 10 minutes
  • Power-off Memory: Yes
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: ON/OFF
  • Preset Freezing: Yes
