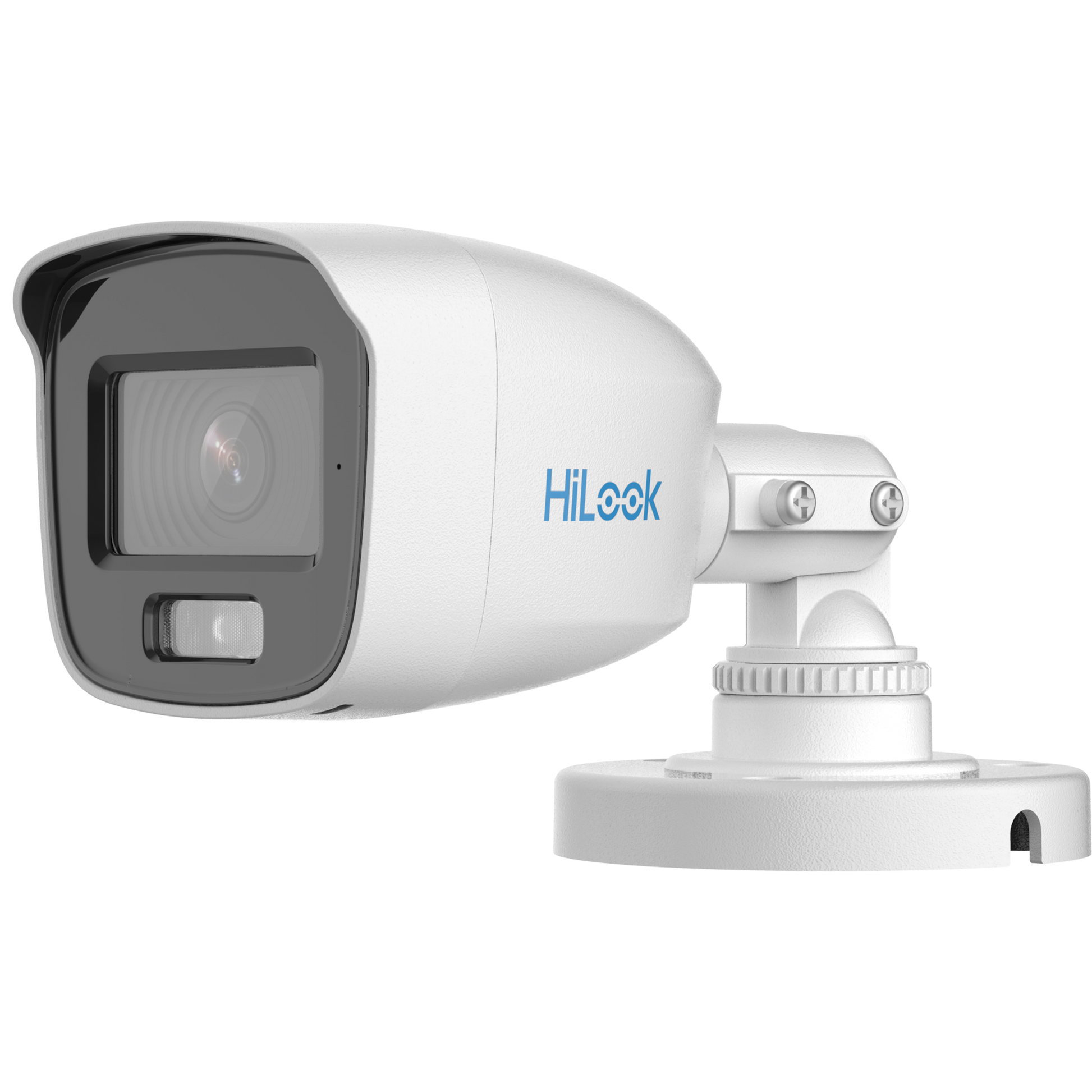

HiLook THC-B159-MS(2.8mm) TVI | 5MP | Bullet

HiLook THC-B159-MS(2.8mm) TVI | 5MP | Bullet

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 2960 (H) × 1665 (V)
  • Fixed

3K （5MP 16:9）CMOS Sensor,3K @ 20 fps(Default),Outdoor Bullet,0.001Lux/F1.0,0 Lux with white Light,20m,2D DNR,Built-in Mic,Audio up Coaxial(Only TVI),12 VDC,OSD Menu(Up the Coax), IP66, 2.8/3.6mm Lens,24H Color，Support TVI/AHD/CVI/CVBS video signal output

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook THC-B159-MS(2.8mm) TVI | 5MP | Bullet
Login to View Price

Specifications

  • Image Sensor: 3K CMOS
  • Signal System: PAL/NTSC
  • Resolution: 2960 (H) × 1665 (V)
  • Frame Rate: TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps AHD: 4 MP @ 25 fps/30 fps CVI: 4 MP @ 25 fps/30 fps CVBS: PAL/NTSC
  • Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens: 2.8 mm/3.6 mm fixed focal lens
  • Field of View: 2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137° 3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°
  • Lens Mount: M12
  • Light Alarm: Solid Light Alarm (White Light)
  • Day & Night: 24/7 Color Imaging
  • WDR (Wide Dynamic Range): Digital WDR
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
  • White Light: Auto/Off
  • Image Mode: STD/HIGH-SAT/HIGHLIGHT
  • AGC: Yes
  • Day/Night Mode: Color
  • White Balance: Auto/Manual
  • AE (Auto Exposure) Mode: DWDR;BLC;HLC;Global
  • Noise Reduction: 2D DNR
  • Language: English
  • Function: Brightness;Sharpness;Anti-Banding
  • Lighting Mode: White Light
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
  • Power Supply: 12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera.
  • Consumption: Max. 2.9 W
  • Protection Level: IP66
  • Material: Metal
  • White Light Range: Up to 20 m
  • Dimension: 161.2 mm × 70 mm × 70 mm (6.4" × 2.8" × 2.8")
  • Weight: Approx. 265 g (0.58 lb.)

Camera
  • Image Sensor: 3K CMOS
  • Signal System: PAL/NTSC
  • Resolution: 2960 (H) × 1665 (V)
  • Frame Rate: TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps AHD: 4 MP @ 25 fps/30 fps CVI: 4 MP @ 25 fps/30 fps CVBS: PAL/NTSC
  • Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens: 2.8 mm/3.6 mm fixed focal lens
  • Field of View: 2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137° 3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°
  • Lens Mount: M12
  • Light Alarm: Solid Light Alarm (White Light)
  • Day & Night: 24/7 Color Imaging
  • WDR (Wide Dynamic Range): Digital WDR
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

  • White Light: Auto/Off
  • Image Mode: STD/HIGH-SAT/HIGHLIGHT
  • AGC: Yes
  • Day/Night Mode: Color
  • White Balance: Auto/Manual
  • AE (Auto Exposure) Mode: DWDR;BLC;HLC;Global
  • Noise Reduction: 2D DNR
  • Language: English
  • Function: Brightness;Sharpness;Anti-Banding
  • Lighting Mode: White Light

Interface
  • Video Output: Switchable TVI/AHD/CVI/CVBS

General
  • Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
  • Power Supply: 12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera.
  • Consumption: Max. 2.9 W
  • Protection Level: IP66
  • Material: Metal
  • White Light Range: Up to 20 m
  • Dimension: 161.2 mm × 70 mm × 70 mm (6.4" × 2.8" × 2.8")
  • Weight: Approx. 265 g (0.58 lb.)
