• THC-B320-VF

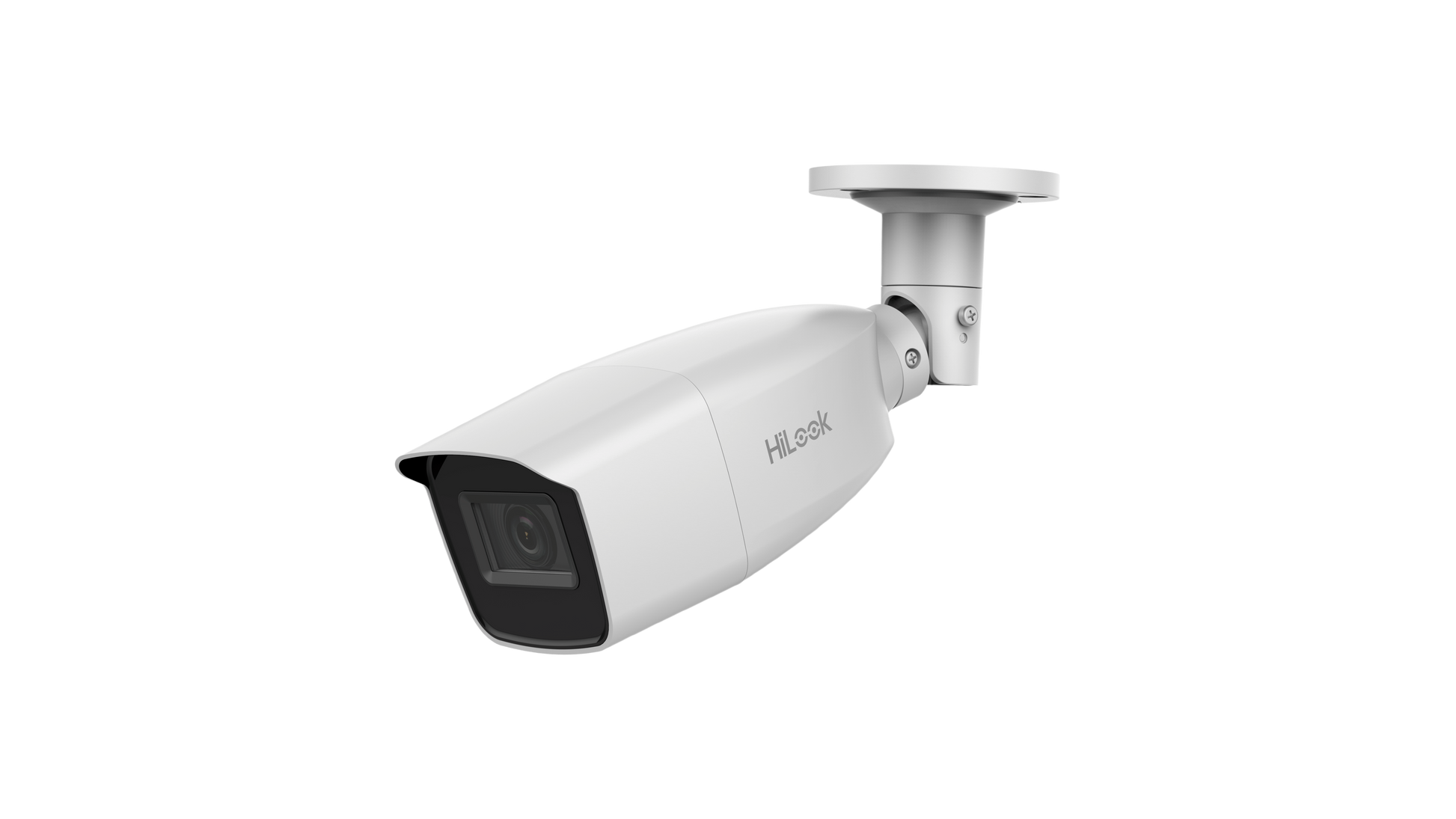

HiLook THC-B320-VF(2.8-12mm)(HiLook STD) TVI | 2MP | Bullet

HiLook THC-B320-VF(2.8-12mm)(HiLook STD) TVI | 2MP | Bullet

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 2 MP
  • Varifocal Lens

2MP CMOS Sensor, 40m IR, Outdoor EXIR Bullet, ICR, 0.01 Lux/F1.2, 12 VDC, Smart IR, DNR, OSD Menu, IP66, 2.8-12mm Vari Focal Lens, Support HD-TVI/AHD/CVI/CVBS video output

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook THC-B320-VF(2.8-12mm)(HiLook STD) TVI | 2MP | Bullet
Login to View Price

Specifications

  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
  • Signal System: PAL/NTSC
  • Lens Type: 2.8 mm to 12 mm
  • Focal Length & FOV: 111.5° to 33.4°
  • Lens Mount: Φ14
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • Image Settings: Brightness;Sharpness;Mirror;AGC
  • Frame Rate: PAL:1080p@25fps NTSC: 1080p@30fps
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC
  • Noise Reduction: 2D DNR
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output
  • Power: 12 VDC ± 15%, max. 5 W
  • Material: Front cover: Metal, Main body: Plastic
  • Dimension: 256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")
  • Weight: Approx. 605 g (1.33 lb.)
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • Language: English
  • Protection: IP66

Camera
  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 s to 1/50,000 s
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
  • Signal System: PAL/NTSC

Lens
  • Lens Type: 2.8 mm to 12 mm
  • Focal Length & FOV: 111.5° to 33.4°
  • Lens Mount: Φ14

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes

  • Image Settings: Brightness;Sharpness;Mirror;AGC
  • Frame Rate: PAL:1080p@25fps NTSC: 1080p@30fps
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC
  • Noise Reduction: 2D DNR

Interface
  • Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output

General
  • Power: 12 VDC ± 15%, max. 5 W
  • Material: Front cover: Metal, Main body: Plastic
  • Dimension: 256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")
  • Weight: Approx. 605 g (1.33 lb.)
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • Language: English

Approval
  • Protection: IP66
