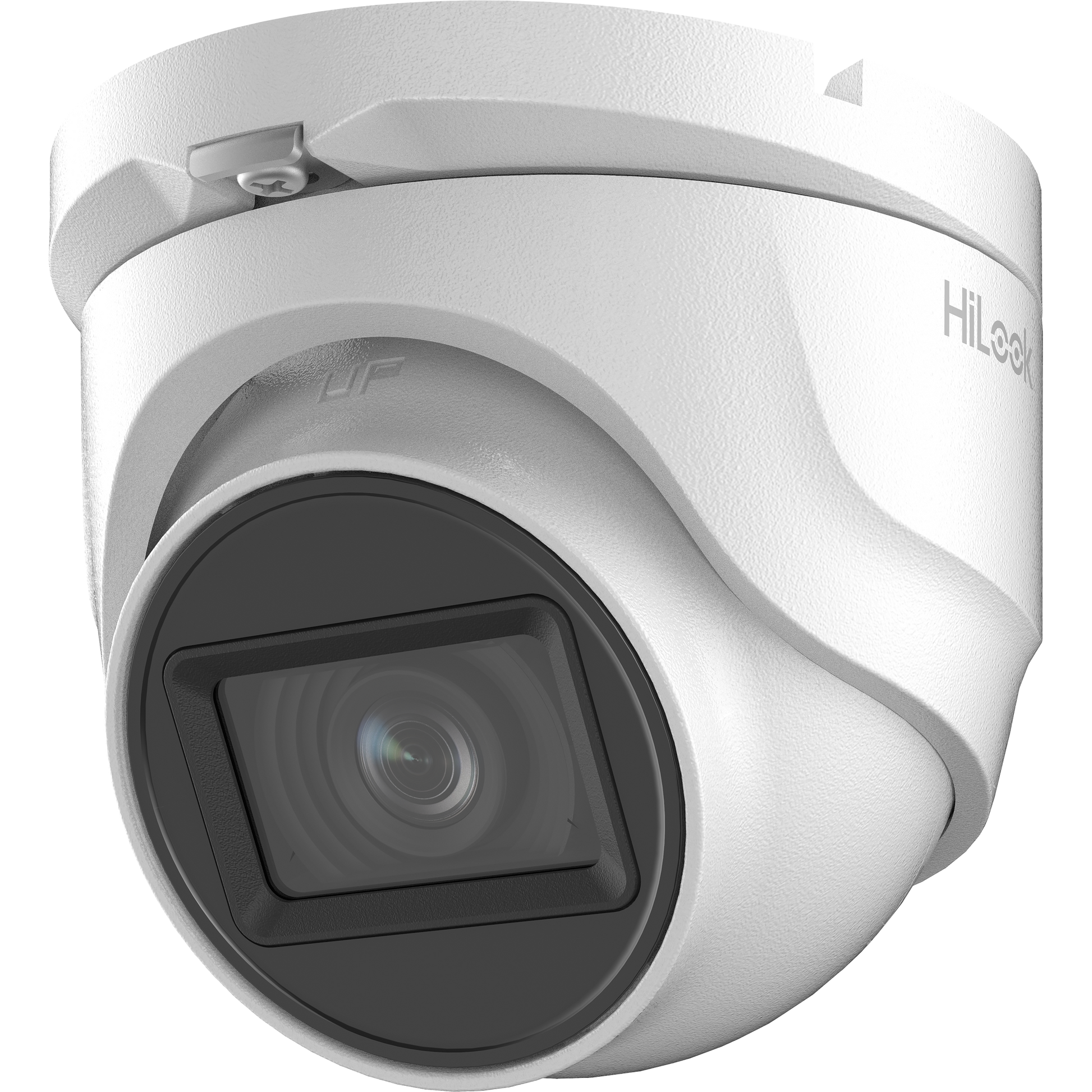

HiLook THC-T180-M(2.8mm) TVI | 8MP | Turret
HiLook THC-T180-M(2.8mm) TVI | 8MP | Turret
- HD COAX CCTV
- 3840 (H) × 2160 (V)
- Fixed
8 MP turret camera
EXIR 2.0: advanced infrared technology with 30 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook THC-T180-M(2.8mm) TVI | 8MP | Turret
Specifications
- Image Sensor: 8.29 MP CMOS
- Signal System: PAL/NTSC
- Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps AHD: 8MP@15fps CVI: 8MP@12.5fps, 8MP@15fps CVBS: PAL/NTSC
- Resolution: 3840 (H) × 2160 (V)
- Min. illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
- Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens
- Horizontal Field of View: 102.9° (2.8 mm), 79° (3.6 mm), 44.7° (6 mm)
- Lens Mount: M12
- Day & Night: ICR
- WDR (Wide Dynamic Range): Digital WDR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Image Mode: STD/HIGH-SAT
- AGC: Yes
- Day/Night Mode: Auto/Color/BW (Black and White)
- White Balance: Auto/Manual
- HLC: Yes
- BLC (Backlight Compensation): Yes
- Language: English
- Functions: Brightness, Sharpness, Smart IR
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Operating Condition: ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Power Supply: 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
- Power Consumption: Max. 2.9 W
- Protection Level: IP67
- Material: Metal
- IR Range: Up to 30 m
- Communication: HIKVISION-C
- Dimensions: 82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12")
- Weight: Approx. 300 g (0.66 lb.)
