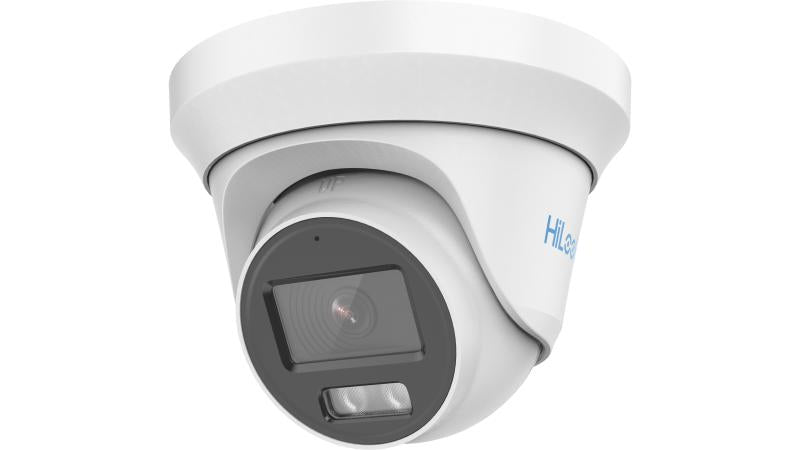

HiLook THC-T229-MS(2.8mm) TVI | 2MP | Turret

HiLook THC-T229-MS(2.8mm) TVI | 2MP | Turret

HiLook THC-T229-MS(2.8mm) TVI | 2MP | Turret

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 2 MP
  • Fixed Lens

2MP CMOS Sensor, Outdoor Turret,0.001Lux/F1.0,0 Lux with white Light,40m,3D DNR,12 VDC,Built-in Mic,Audio up Coaxial(Only TVI),OSD Menu(Up the Coax), IP66, 2.8/3.6mm Lens,24H Full Time Color，Support TVI/AHD/CVI/CVBS video signal output

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook THC-T229-MS(2.8mm) TVI | 2MP | Turret
Login to View Price

Specifications

  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Signal System: PAL/NTSC
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125° 3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°
  • Lens Mount: M12
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness, Sharpness, Anti-banding, AGC
  • Frame Rate: TVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fps AHD: 1080p @25 fps/30 fps CVBS: PAL/NTSC
  • Day/Night Mode: Color
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR, BLC, HLC, Global
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto, Manual
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Alarm: Solid Light Alarm (White Light)
  • Material: Metal
  • Power: 12 VDC ± 25%, max. 3.2 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø127.9 mm × 97.8 mm (5.04" × 3.86")
  • Weight: Approx. 473 g (1.04 lb.)
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
  • Language: English
  • Protection: IP66

Camera
  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Signal System: PAL/NTSC

Lens
  • Lens Type: 2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125° 3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes

  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • Image Settings: Brightness, Sharpness, Anti-banding, AGC
  • Frame Rate: TVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fps AHD: 1080p @25 fps/30 fps CVBS: PAL/NTSC
  • Day/Night Mode: Color
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: DWDR, BLC, HLC, Global
  • Noise Reduction: 3D DNR/2D DNR
  • White Balance: Auto, Manual

Interface
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Alarm: Solid Light Alarm (White Light)

General
  • Material: Metal
  • Power: 12 VDC ± 25%, max. 3.2 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Dimension: Ø127.9 mm × 97.8 mm (5.04" × 3.86")
  • Weight: Approx. 473 g (1.04 lb.)
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • Communication: HIKVISION-C
  • Language: English

Approval
  • Protection: IP66
