• THC-T250-MS#UK

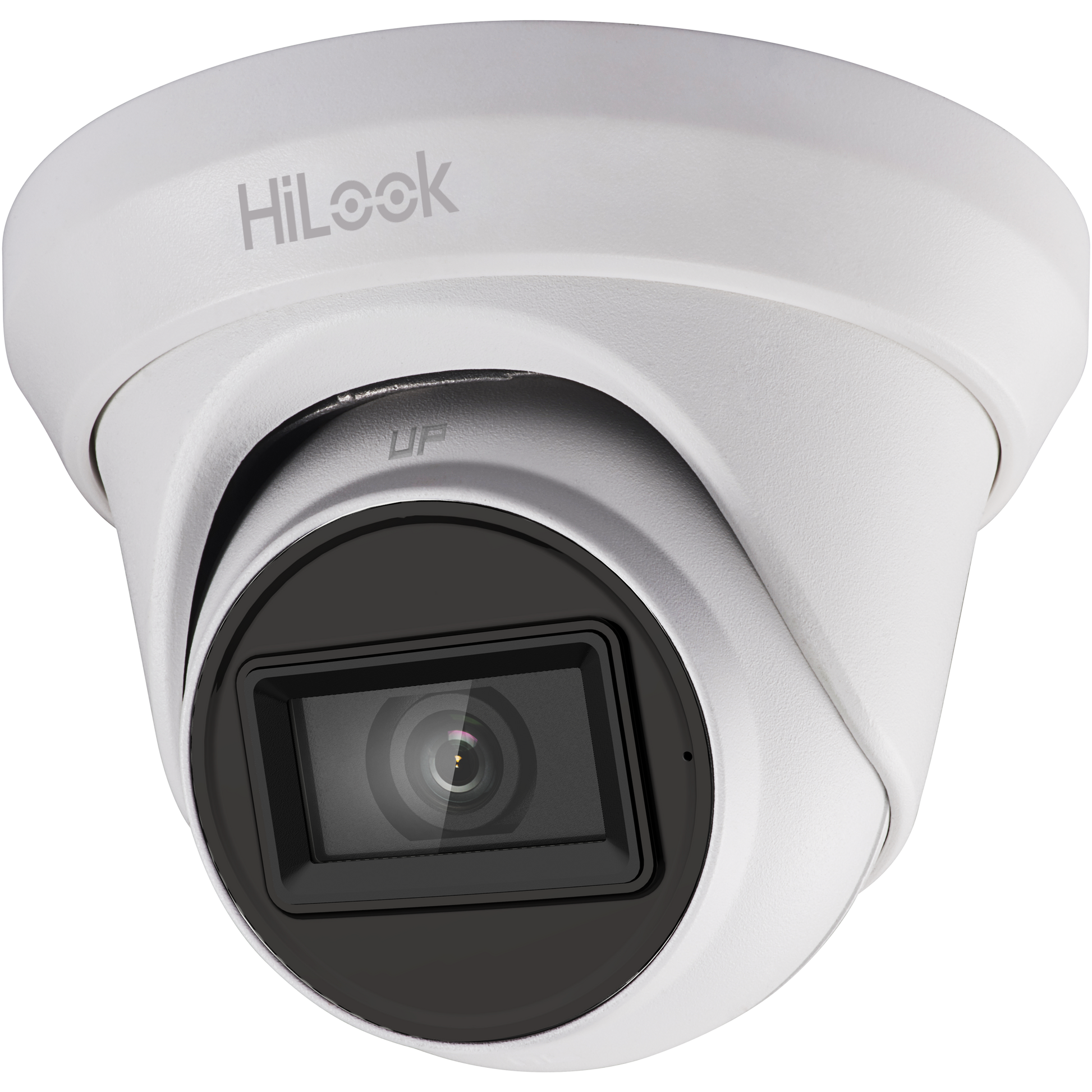

HiLook THC-T250-MS(2.8mm)(Hilook UK) TVI | 5MP | Turret

HiLook THC-T250-MS(2.8mm)(Hilook UK) TVI | 5MP | Turret

Category: HD COAX CCTV
|
Brand: HiLook
  • HD COAX CCTV
  • 2560 (H) × 1944 (V)
  • 2.8 mm, 3.6 mm fixed lens

5 MP coaxial audio camera, Enhanced safety with discreet and economical built-in microphone
2.8 mm, 3.6 mm fixed focal lens, EXIR 2.0: advanced infrared technology with 40 m IR distance, IP67, 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS), Digital WDR

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HiLook THC-T250-MS(2.8mm)(Hilook UK) TVI | 5MP | Turret
Login to View Price

Specifications

  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) × 1944 (V)
  • Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
  • Signal System: PAL/NTSC
  • Lens Type: 2.8 mm, 3.6 mm fixed lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
  • Lens Mount: M12
  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Frame Rate: TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR): Digital WDR
  • White Balance: ATW/MANUAL
  • AGC: Support
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Built-in Microphone: Yes
  • Material: Metal
  • Dimension: Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
  • Weight: Approx. 450 g (0.66 lb.)
  • Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Communication: HIKVISION-C
  • Language: English
  • Power Supply: 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • Consumption: Max. 3.7 W
  • IR Range: Up to 40 m
  • Protection: IP67

Camera
  • Image Sensor: 5 MP CMOS
  • Max. Resolution: 2560 (H) × 1944 (V)
  • Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & Night: ICR
  • Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
  • Signal System: PAL/NTSC

Lens
  • Lens Type: 2.8 mm, 3.6 mm fixed lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
  • Lens Mount: M12

  • Image Parameters Switch: STD/HIGH-SAT
  • Image Settings: Brightness, Sharpness, Mirror, Smart IR
  • Frame Rate: TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR): Digital WDR
  • White Balance: ATW/MANUAL
  • AGC: Support

Interface
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • Built-in Microphone: Yes

General
  • Material: Metal
  • Dimension: Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
  • Weight: Approx. 450 g (0.66 lb.)
  • Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Communication: HIKVISION-C
  • Language: English
  • Power Supply: 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • Consumption: Max. 3.7 W
  • IR Range: Up to 40 m

Approval
  • Protection: IP67
