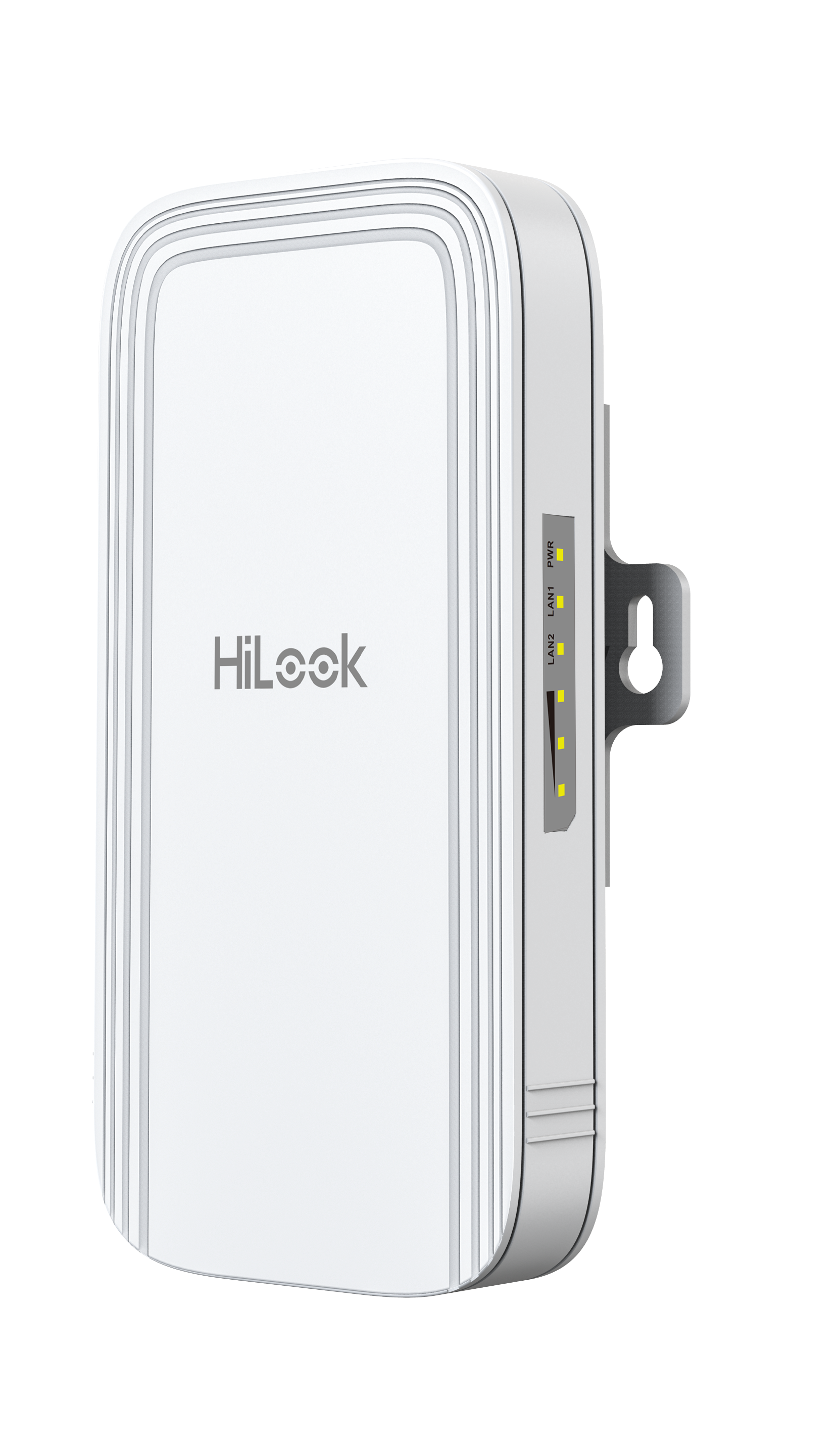

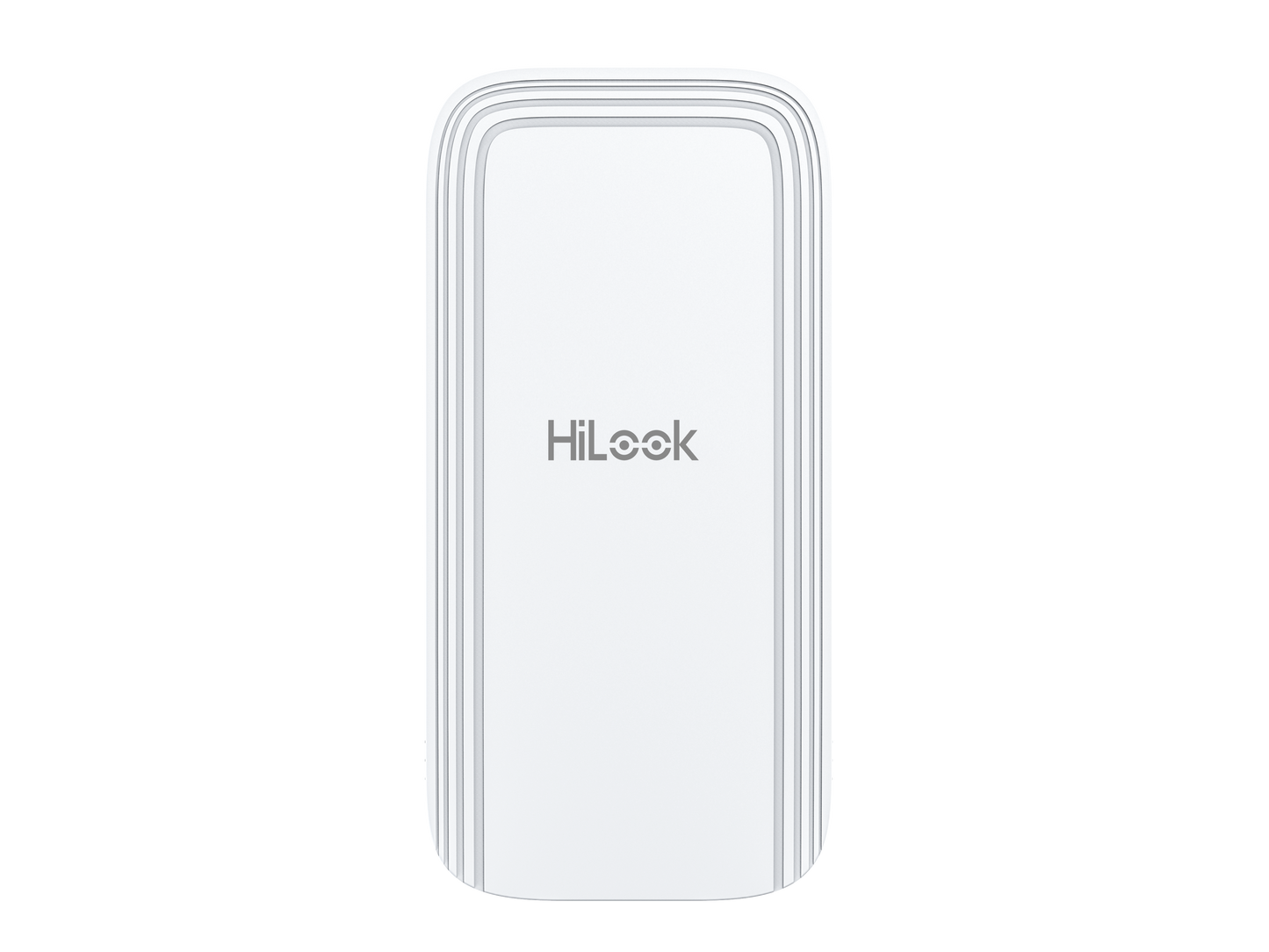

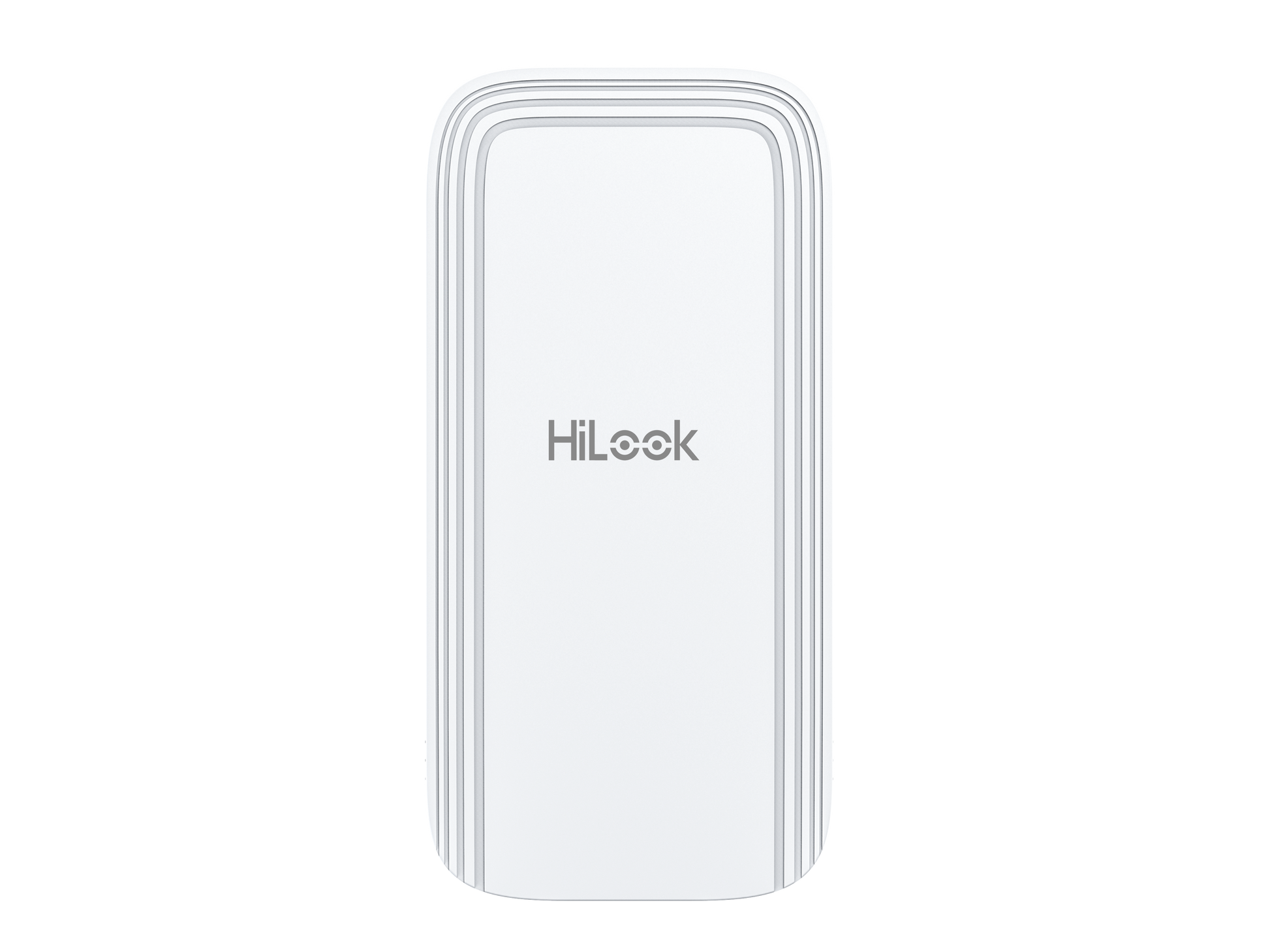

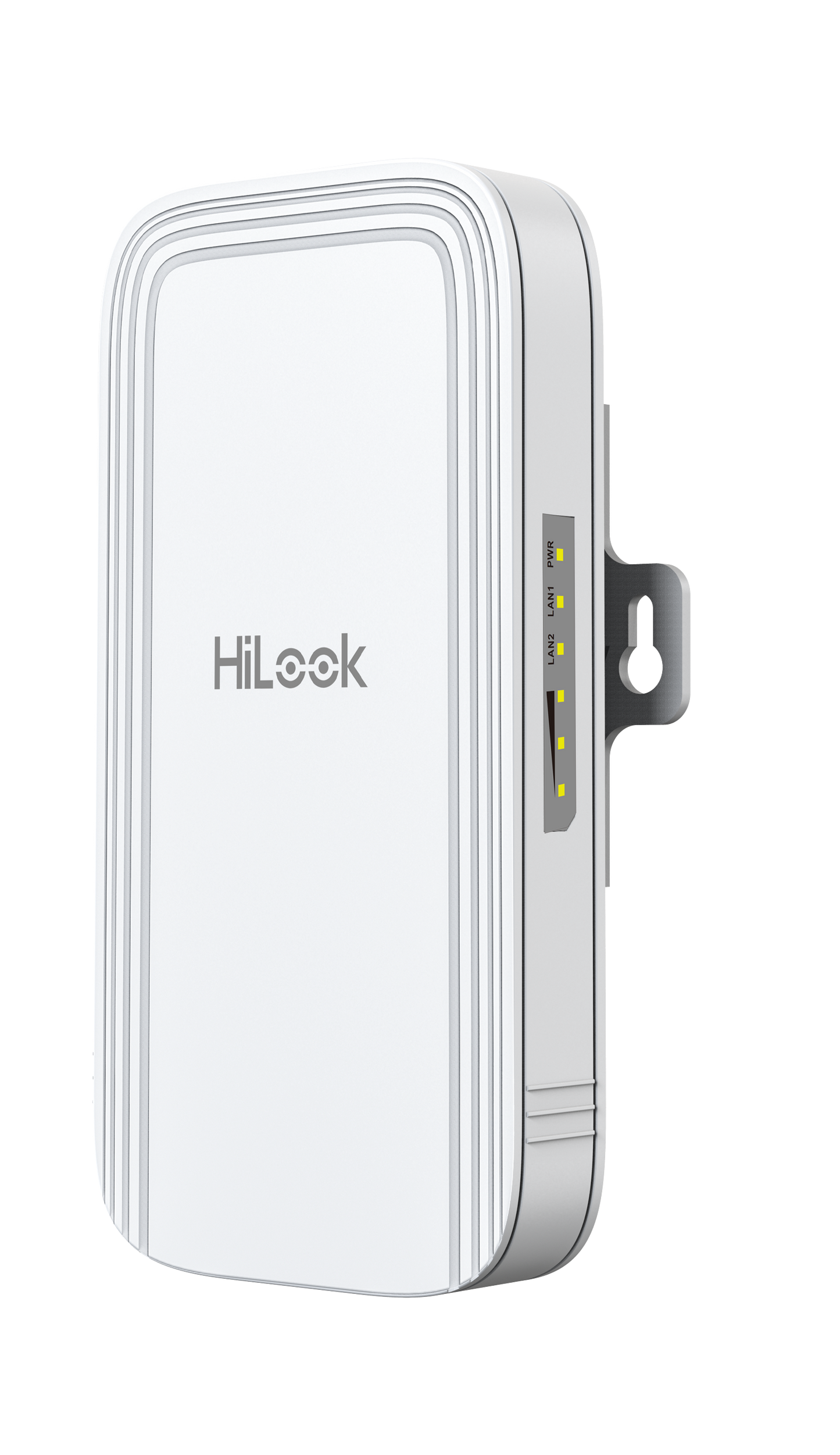

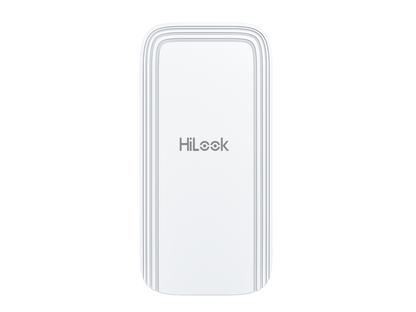

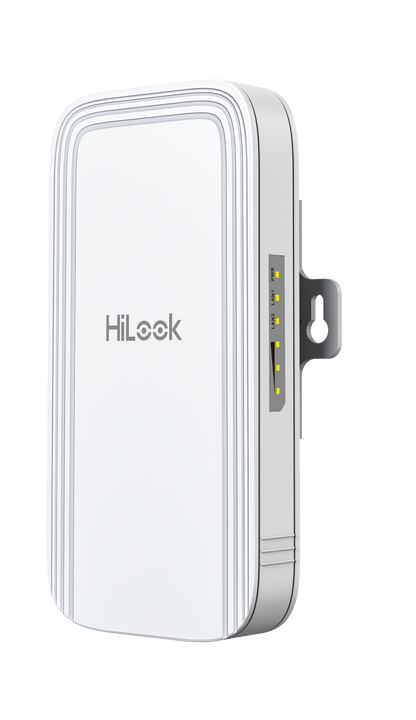

HiLook WB-0FC-2N/O
HiLook WB-0FC-2N/O
- Switches
- Wireless Bridge
- Outdoor Wireless Bridge
"Outdoor 2.4GHz wireless bridge CPE, Max.distance 1km, 2×2 MIMO antenna with 300Mbps thoughput, 7dBi gain, 802.11n, Angle H: 35°, 2 100Mbps RJ45 ports, Support 12 VDC or Passive PoE Power supply, Support Web, iVMS-4200, HCP
Point to point: Support up to 8-ch IPC (2MP) in Max. 1 KM distance and Max. 40 Mbps bandwidth
Point to multi-point: Support up to 4-ch IPC (2MP) in Max. 1 KM distance and Max. 20 Mbps bandwidth within 35° ± 5°, Max. 1 to 4 PTMP connection"
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
HiLook WB-0FC-2N/O
Specifications
- Product Dimensions (W × H × D): 81 mm × 52 mm × 165 mm (3.62'' × 2.28'' × 7.36'')
- Package Dimensions (W × H × D): 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
- Net Weight: 0.19 kg (0.42 lb)
- Gross Weight: 0.49 kg (1.08 lb)
- Packing List: Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
- Packing Method: Single unit packing
- Working Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
- Working Humidity: 5% to 95% (no condensation)
- Storage Temperature: -40 °C to 80 °C (-40 °F to 176 °F)
- Storage Humidity: 5% to 95% (no condensation)
- Installation Mode: Pole Mounting
- Ingress Protection: IP55
- Power Consumption: 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W
- Max. Transmission Rate of Air Interface: ≤ 300 Mbps
- Wireless Standard: IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
- Working Frequency Band: 2400 MHz ~ 2483.5 MHz
- Receiving Sensitivity: -87±2 dBm @HT40 MCS0
- Antenna Gain: 7 dBi
- Antenna Angle: (H) Beamwidth [3 dB] 35° , (V) Beamwidth [3 dB] 35°
- Transmitting Power: 23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
- Throughput Rate: PTP: 90 Mbps/0.2 KM(HT40),75 Mbps/0.5 KM(HT40),40 Mbps/1 KM(HT40),PTMP(1 to 4):20 Mbps/1 KM(HT40)
- Network Interface: 2 × 10/100 Mbps RJ45 ports
- LED Indicator: Power indicator,LAN indicator,Signal intensity indicator
- Reset: Hardware resetting button
- Power Supply: 12-24 VDC Passive PoE
- Application Function: TDMA,DFS,TPC,IFM,IPM
- Channel Width: 10/20/40 MHz
- Channel Selection: Auto/manual selection
- Network Protocol: NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
- Security Mode: WPA2-PSK
- Security Mechanism: Wireless network name hidden
- Management Method: Web
- Upgrade: Web
- System Log: Syslog,Control center information
- EMC: CE-EMC(EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3)
- Safety: CB (IEC 62368-1),CE-LVD (EN 62368-1)
- Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- Radio: EN 301 489-17,EN 301 489-1, EN 300 328, EN IEC 62311
