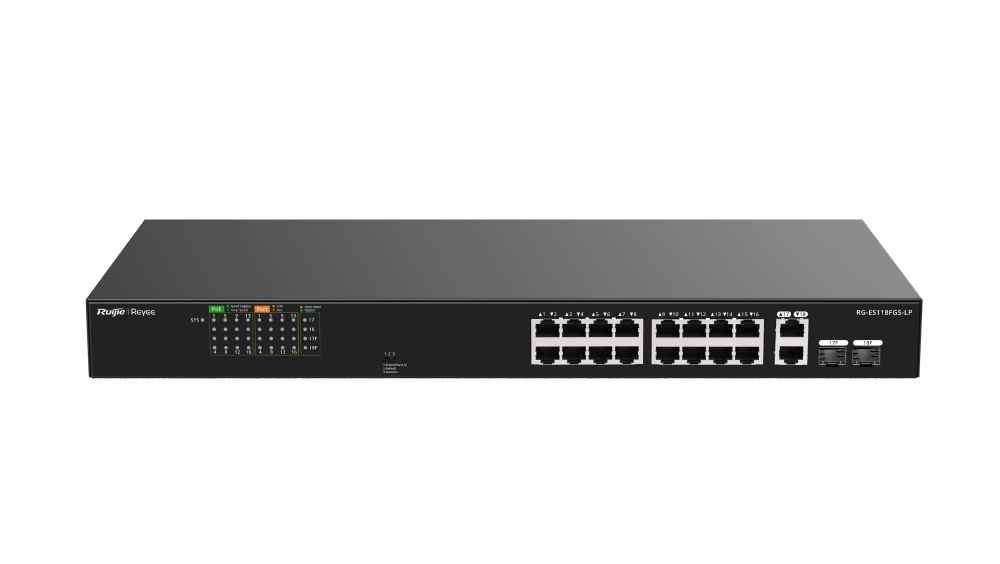

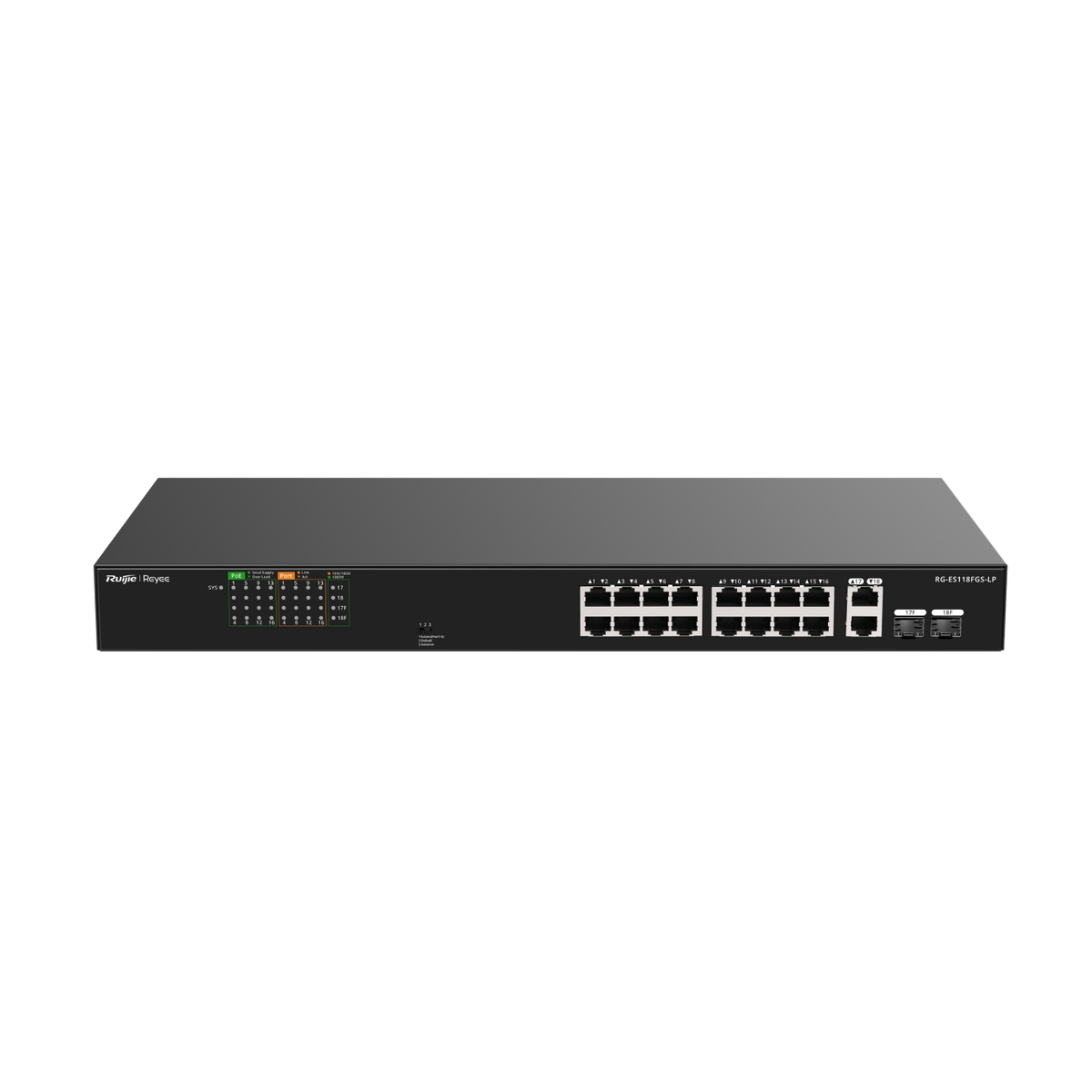

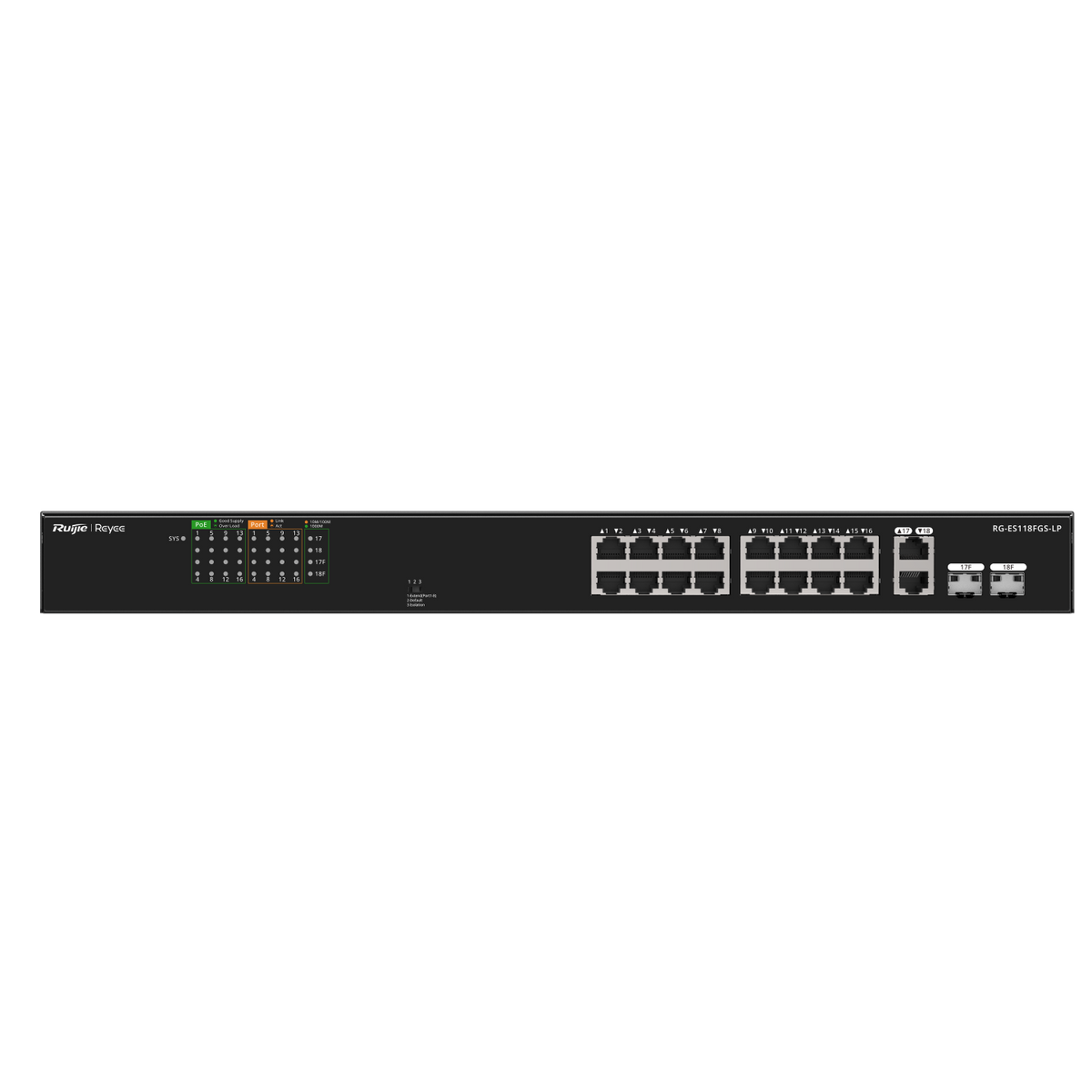

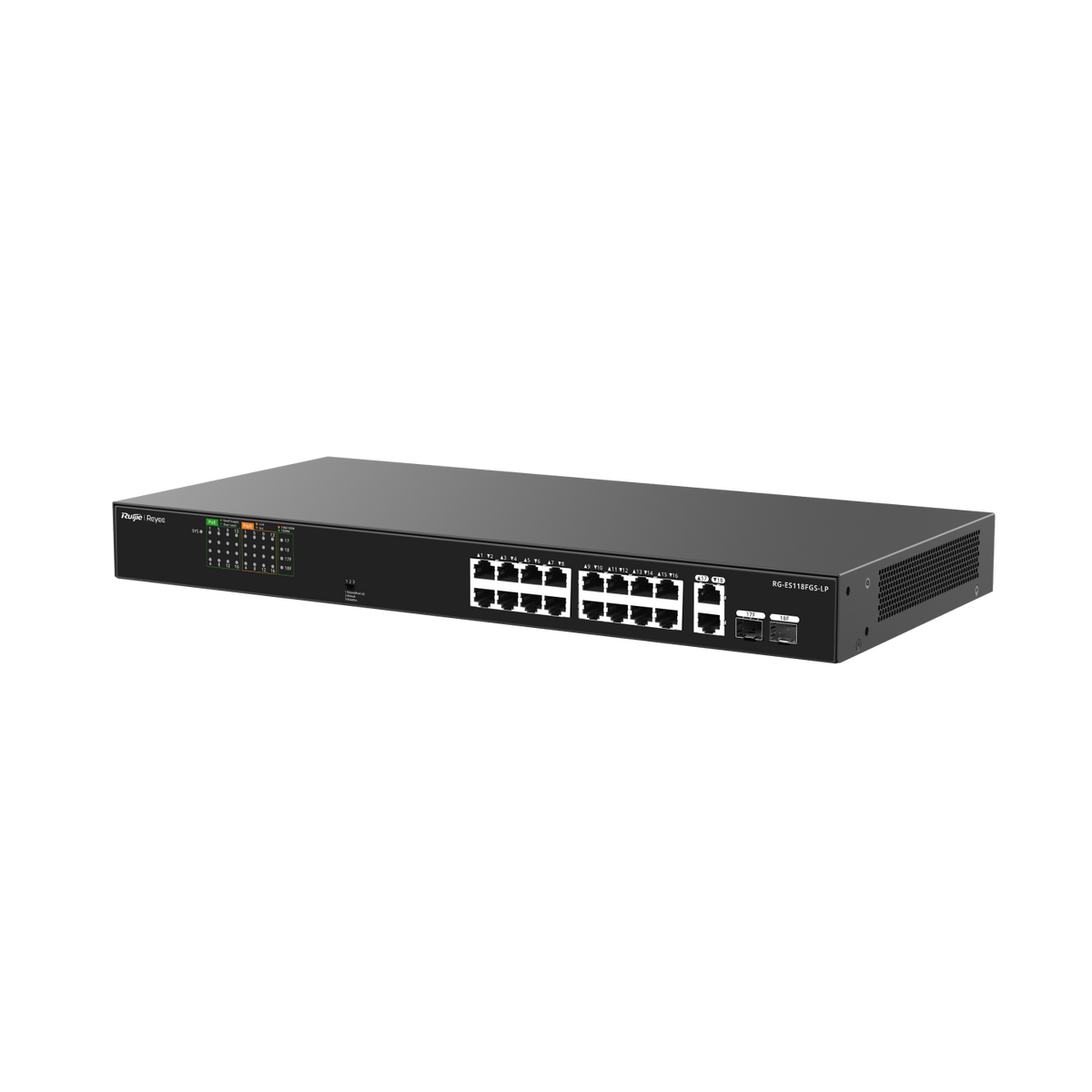

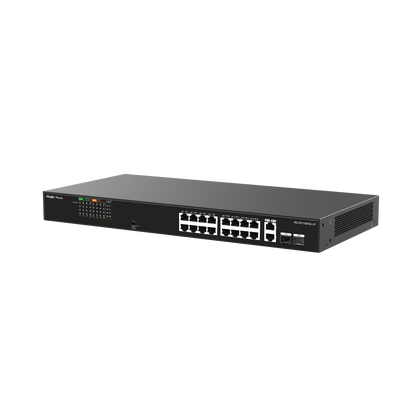

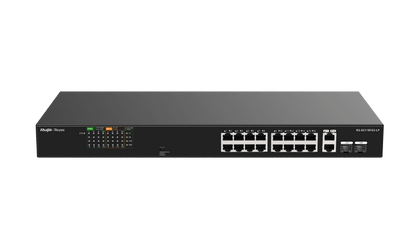

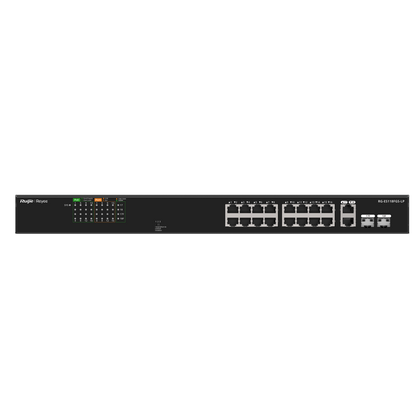

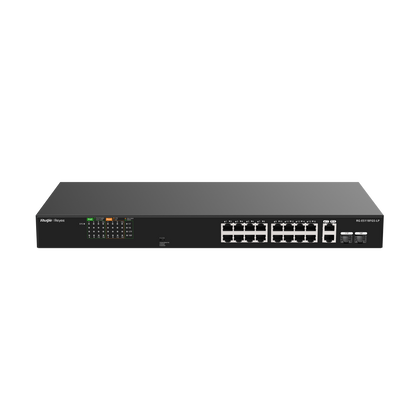

Reyee 10/100 Unmanaged Switch-Metal-PoE | RG-ES118FGS-LP
Reyee 10/100 Unmanaged Switch-Metal-PoE | RG-ES118FGS-LP
- Network Switches
- Unmanaged PoE Switches
- 16 Port
Unmanaged，16 FE, 2 GE, 120 W
Key Features
- Unmanaged，16 FE
- 2 GE
- 120 W
Model: RG-ES118FGS-LP
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Reyee 10/100 Unmanaged Switch-Metal-PoE | RG-ES118FGS-LP
Specifications
- Total number of RJ45 ports: 18
- Total number of optical ports: 2
- Number of 1GE combo ports: 2
- Number of 1GE SFP ports: 2
- Number of 10/100BASE-T ports: 16
- Number of 10/100/1000BASE-T ports: 2
- Number of PoE Out ports: 16
- Number of PoE/PoE+ Out ports: 16
- PoE budget: 120 W
- PoE power pins: 1–2 (+), 3–6 (-)
- Operating temperature: 0°C to 45°C (32°F to 113°F)
- PoE watchdog: Yes
- Port isolation: Yes
- Warranty: 3 years
- Forwarding rate: 5.3 Mpps
- Switching capacity: 7.2 Gbps(bit/s)
- MTBF: 200,000 hours
- Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
- Surge protection: Service port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode
- Safety compliance: EN 62368-1 IEC 62368-1
- Maximum number of MAC address entries: 8000
- Recommended camera limit: 200W H265: 40 400W H265: 20
