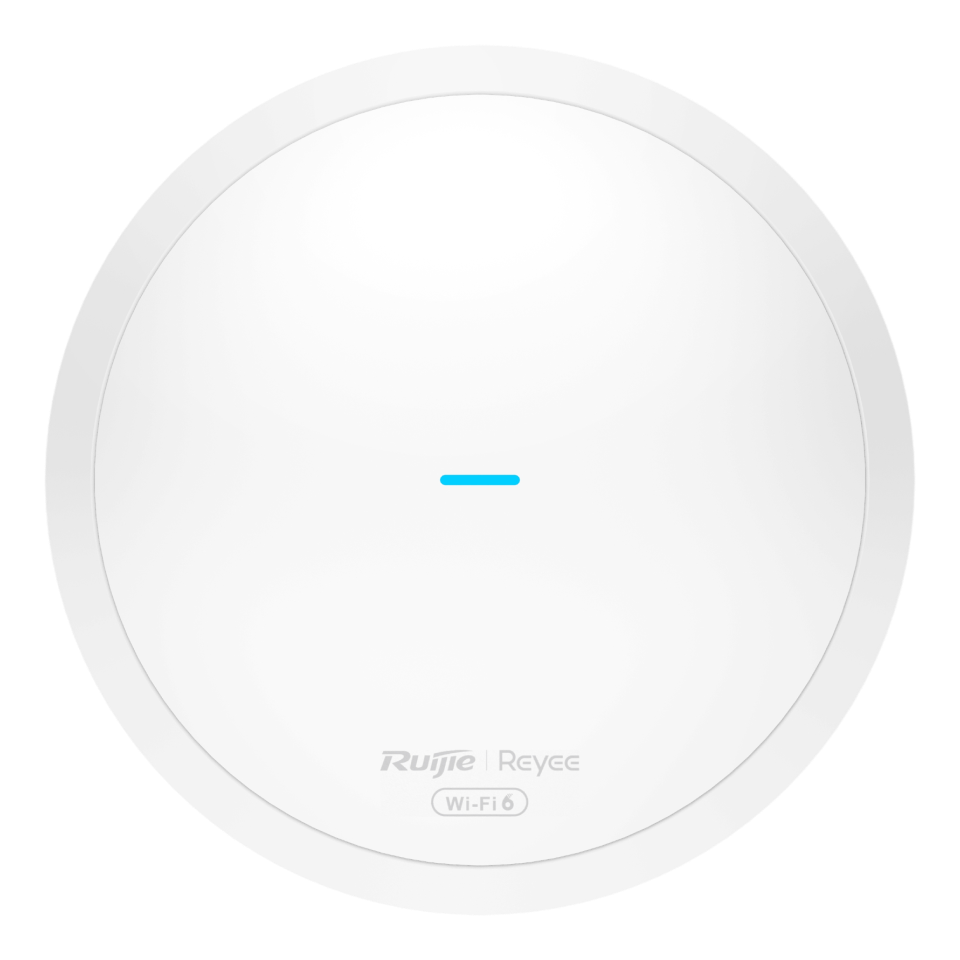

Reyee Ceiling Wi-Fi 6 AP, 1.774Gbps | RG-RAP62
Reyee Ceiling Wi-Fi 6 AP, 1.774Gbps | RG-RAP62
- Wireless Networking
- Wi-Fi 6 Access Points
- Ceiling Wi-Fi
Wi-Fi 6 AX1800 dual-band ceiling mount access point; Gigabit LAN uplink ports, 2.4 GHz/5 GHz dual-band, built-in antennas, 802.11ax, 802.11ac wave2/wave1, up to 1774 Mbps access rate per AP; support for AP and routing mode, Layer 3 roaming, unified networking and management via Ruijie Cloud and Ruijie Reyee App; support for PoE and local power supply (PoE module and DC adapter sold separately)
Key Features
- WiFi 6
- AX1800
- Ceiling
Model: RG-RAP62
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Reyee Ceiling Wi-Fi 6 AP, 1.774Gbps | RG-RAP62
Specifications
- Product dimensions (diameter x height): Ø175mm x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket)
- Package dimensions (W x D x H): 210 mm x 188 mm x 64 mm (8.27 in. x 7.40 in. x 2.52 in.)
- Color: White
- Weight: ≤ 0.4 kg (0.88 lbs) (without packaging materials)
- Shipping weight: ≤ 0.6 kg (1.32 lbs)
- Number of 10/100/1000BASE-T ports: 1
- Power supply: ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
- Local power supply: Yes, one DC power connector (12 V, 1.5 A)
- Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Length: 10 mm (0.39 in.)
- PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
- Maximum power consumption: 12.95 W
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: –40°C to +70°C (–40°F to +158°F)
- IP rating: IP41
- Certification: CE, CB
- Package Contents: 1 x AP 1 x Mounting bracket 4 x Cross pan head screws (ST4.2 x 20 mm) 4 x Plastic expansion anchors (φ9 x 25.4 mm) 1 x User Manual 1 x Warranty Card 1 x Key to security lock 1 x Alignment sticker
- 6 GHz Wi-Fi: No
- 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax)
- 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax)
- 6 GHz channel width: No
- 5 GHz channel width: Auto/20/40/80 MHz
- 2.4 GHz channel width: Auto/20/40 MHz
- Maximum wireless data rate: 1774 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 1201 Mbps
- 2.4 GHz wireless data rate: 573 Mbps
- Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas
- Antenna horizontal orientation: No
- Antenna vertical orientation: No
- Antenna gain (6 GHz): No
- Antenna gain (5 GHz): 4.58 dBi
- Antenna gain (2.4 GHz): 3.13 dBi
- Maximum number of associated wireless clients: 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)
- Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
- AP mode: Yes
- Routing mode: Yes
- AI roaming: Yes
- Wireless repeater mode: Yes
- Product Type: Ceiling AP
- Coverage range: 125 ㎡ (1345.49 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
- MLO: No
- 4K-QAM: No
- Maximum number of devices that can be managed: 300
