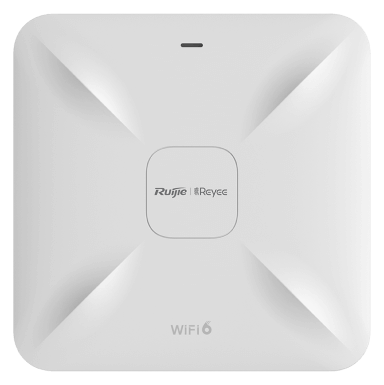

• RG-RAP2260(G) product image

Reyee Ceiling Wi-Fi 6 AP, 1.775Gbps | RG-RAP2260(G)

Reyee Ceiling Wi-Fi 6 AP, 1.775Gbps | RG-RAP2260(G)

Category: Wireless Networking
|
Brand: Ruijie Reyee
  • Wireless Networking
  • Wi-Fi 6 Access Points
  • Ceiling Wi-Fi

AX1800 Wi-Fi 6 dual-band Gigabit ceiling mount AP, dual Gigabit LAN uplink ports, built-in antennas, dual-band 2.4GHz/5GHz, 802.11ax, 802.11ac wave2/wave1, up to 1775Mbps access rate per AP; support AP and routing mode, Layer 3 roaming, Reyee unified networking and Ruijie Cloud app management; Support PoE and local power supply (PoE module and DC adapter are sold separately)

Key Features

  • Indoor
  • Wi-Fi 6
  • 1775Mbps
  • Recommended 100 clients
  • 2 GE LAN

Model: RG-RAP2260(G)

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Ceiling Wi-Fi 6 AP, 1.775Gbps | RG-RAP2260(G)
Login to View Price

Specifications

  • Product dimensions (W x D x H): 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
  • Package dimensions (W x D x H): 222 mm x 220 mm x 68 mm (8.74 in. x 8.66 in. x 2.68 in.)
  • Color: White
  • Weight: ≤ 0.55 kg (1.21 lbs.) (without packaging materials)
  • Shipping weight: ≤ 0.83 kg (1.83 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
  • Local power supply: Yes, one DC power connector (12 V, 1.5 A)
  • Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.)
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 15.5 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: IP41
  • Certification: CE, CB
  • Package Contents: 1 x AP 1 x Mounting bracket 2 x Cross pan head screws (ST4.2 x 20 mm) 2 x Plastic expansion anchors (φ9 x 25.4 mm) 1 x User Manual 1 x Warranty Card
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 1774 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 1201 Mbps
  • 2.4 GHz wireless data rate: 573 Mbps
  • Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 3.00 dBi
  • Antenna gain (2.4 GHz): 3.00 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes
  • Product Type: Ceiling AP
  • Coverage range: 120 ㎡ (1291.67 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 300

Hardware
  • Product dimensions (W x D x H): 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
  • Package dimensions (W x D x H): 222 mm x 220 mm x 68 mm (8.74 in. x 8.66 in. x 2.68 in.)
  • Color: White
  • Weight: ≤ 0.55 kg (1.21 lbs.) (without packaging materials)
  • Shipping weight: ≤ 0.83 kg (1.83 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
  • Local power supply: Yes, one DC power connector (12 V, 1.5 A)
  • Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.)
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 15.5 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: IP41
  • Certification: CE, CB
  • Package Contents: 1 x AP 1 x Mounting bracket 2 x Cross pan head screws (ST4.2 x 20 mm) 2 x Plastic expansion anchors (φ9 x 25.4 mm) 1 x User Manual 1 x Warranty Card

Wireless
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 1774 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 1201 Mbps
  • 2.4 GHz wireless data rate: 573 Mbps
  • Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 3.00 dBi
  • Antenna gain (2.4 GHz): 3.00 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)

Software
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes

Other
  • Product Type: Ceiling AP
  • Coverage range: 120 ㎡ (1291.67 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 300
