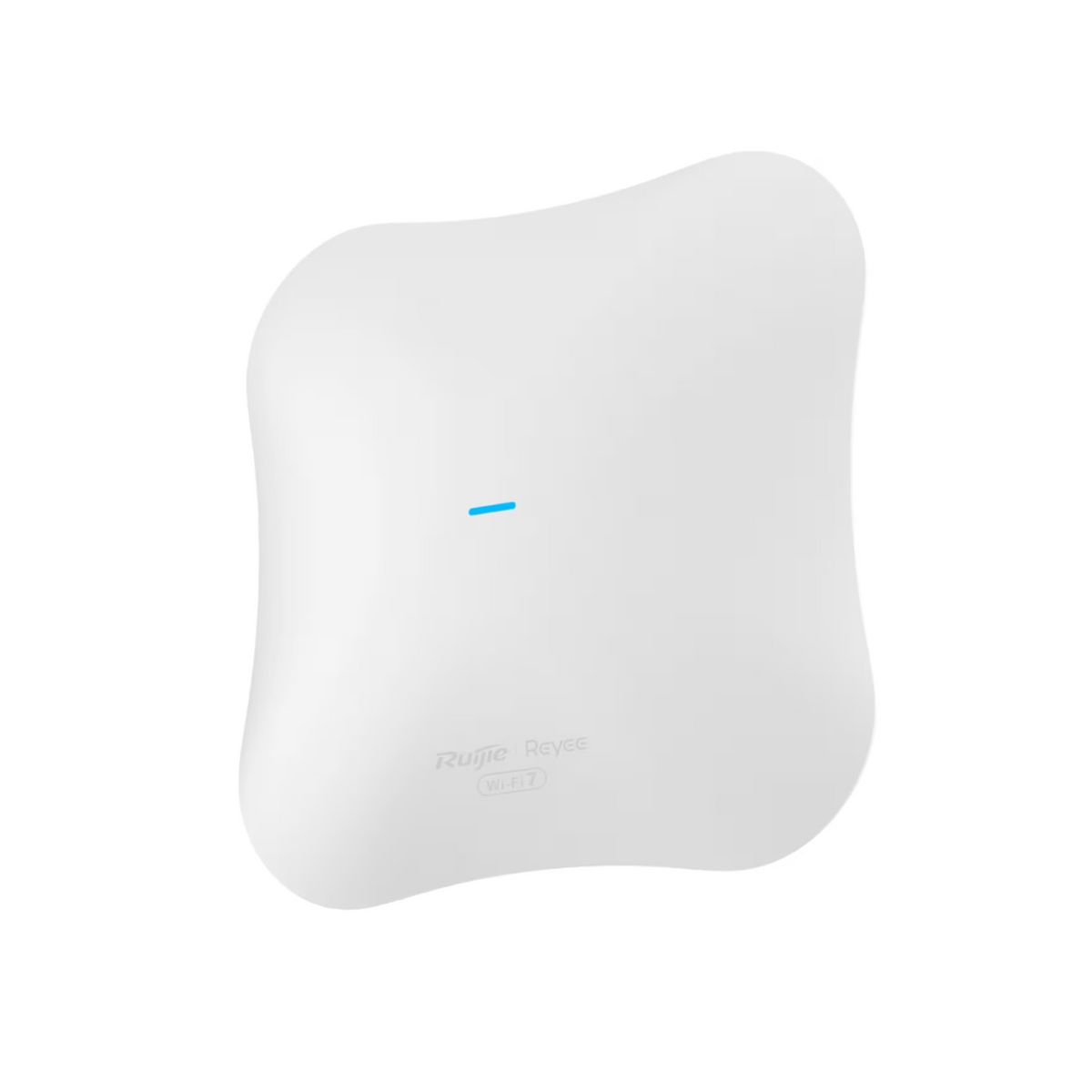

• RG-RAP72PRO product image
1/2

Reyee Ceiling Wi-Fi 7 AP, 5.011Gbps | RG-RAP72Pro

Reyee Ceiling Wi-Fi 7 AP, 5.011Gbps | RG-RAP72Pro

Category: Wireless Networking
|
Brand: Ruijie Reyee
  • Wireless Networking
  • Wi-Fi 7 Access Points
  • Ceiling Wi-Fi

Wi-Fi7 BE5040 dual-band ceiling access point;2.4GHz/5GHz dual-radio, high throughput with 5 spatial streams; 1 x 100/1000/2500BASE-T port;1 x 100/1000BASE-T port; Support AP and routing mode. Unified networking and management via Ruijie Cloud and Ruijie Reyee App. Maximum power consumption < 30W; Support 802.3at PoE and 12V DC power supply

Key Features

  • Wi-Fi 7
  • BE5040
  • 5 spatial streams; 4K-QAM
  • MLO
  • 160MHz

Model: RG-RAP72Pro

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Ceiling Wi-Fi 7 AP, 5.011Gbps | RG-RAP72Pro
Login to View Price

Specifications

  • Product dimensions (W x D x H): 208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.) (excluding the mounting bracket)
  • Package dimensions (W x D x H): 280 mm x 265 mm x 80 mm (11.02 in. x 10.43 in. x 3.15 in.)
  • Color: White
  • Weight: ≤ 0.75 kg (1.65 lbs.) (without packaging materials)
  • Shipping weight: ≤ 1.3 kg (2.87 lbs.)
  • Number of 10/100/1000BASE-T ports: 1
  • Number of 10/100/1000/2500BASE-T ports: 1
  • Power supply: ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
  • Local power supply: Yes, one DC power connector (12 V, 2.5 A)
  • Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Length: 10 mm (0.39 in.)
  • PoE In standard: ● IEEE 802.3af (PoE) Note: Radio transmission and reception is limited to 1T1R at 2.4 GHz and 5 GHz. ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 30 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: IP41
  • Certification: CE, FCC, CB, ISED, cTUVus
  • Package Contents: 1 x AP 1 x Mounting bracket 4 x Cross pan head screws (ST4.2 x 20 mm) 4 x Plastic expansion anchors (φ9 x 25.4 mm) 1 x User Manual 1 x Warranty Card 1 x Key to security lock 1 x Alignment sticker
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80/160 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 5011 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 4323 Mbps
  • 2.4 GHz wireless data rate: 688 Mbps
  • Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.00 dBi
  • Antenna gain (2.4 GHz): 3.00 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes
  • Product Type: Ceiling AP
  • Coverage range: 145 ㎡ (1560.77 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: Yes
  • 4K-QAM: Yes
  • Maximum number of devices that can be managed: 300

Hardware
  • Product dimensions (W x D x H): 208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.) (excluding the mounting bracket)
  • Package dimensions (W x D x H): 280 mm x 265 mm x 80 mm (11.02 in. x 10.43 in. x 3.15 in.)
  • Color: White
  • Weight: ≤ 0.75 kg (1.65 lbs.) (without packaging materials)
  • Shipping weight: ≤ 1.3 kg (2.87 lbs.)
  • Number of 10/100/1000BASE-T ports: 1
  • Number of 10/100/1000/2500BASE-T ports: 1
  • Power supply: ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
  • Local power supply: Yes, one DC power connector (12 V, 2.5 A)
  • Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Length: 10 mm (0.39 in.)
  • PoE In standard: ● IEEE 802.3af (PoE) Note: Radio transmission and reception is limited to 1T1R at 2.4 GHz and 5 GHz. ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 30 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: IP41
  • Certification: CE, FCC, CB, ISED, cTUVus
  • Package Contents: 1 x AP 1 x Mounting bracket 4 x Cross pan head screws (ST4.2 x 20 mm) 4 x Plastic expansion anchors (φ9 x 25.4 mm) 1 x User Manual 1 x Warranty Card 1 x Key to security lock 1 x Alignment sticker

Wireless
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80/160 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 5011 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 4323 Mbps
  • 2.4 GHz wireless data rate: 688 Mbps
  • Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.00 dBi
  • Antenna gain (2.4 GHz): 3.00 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)

Software
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes

Other
  • Product Type: Ceiling AP
  • Coverage range: 145 ㎡ (1560.77 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: Yes
  • 4K-QAM: Yes
  • Maximum number of devices that can be managed: 300
