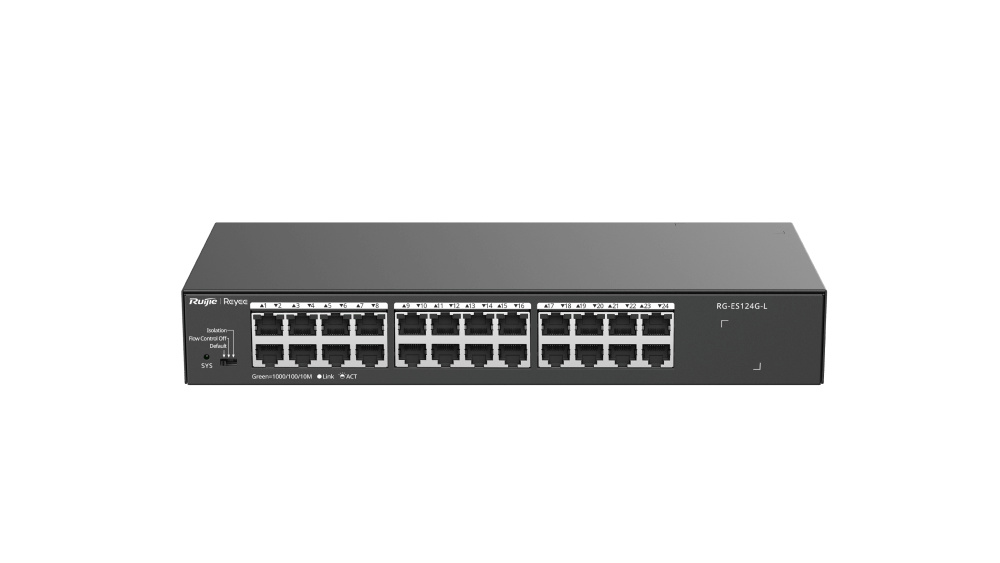

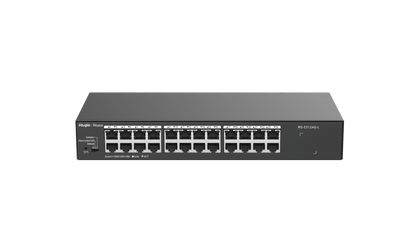

• RG-ES124G-L product image
1/4

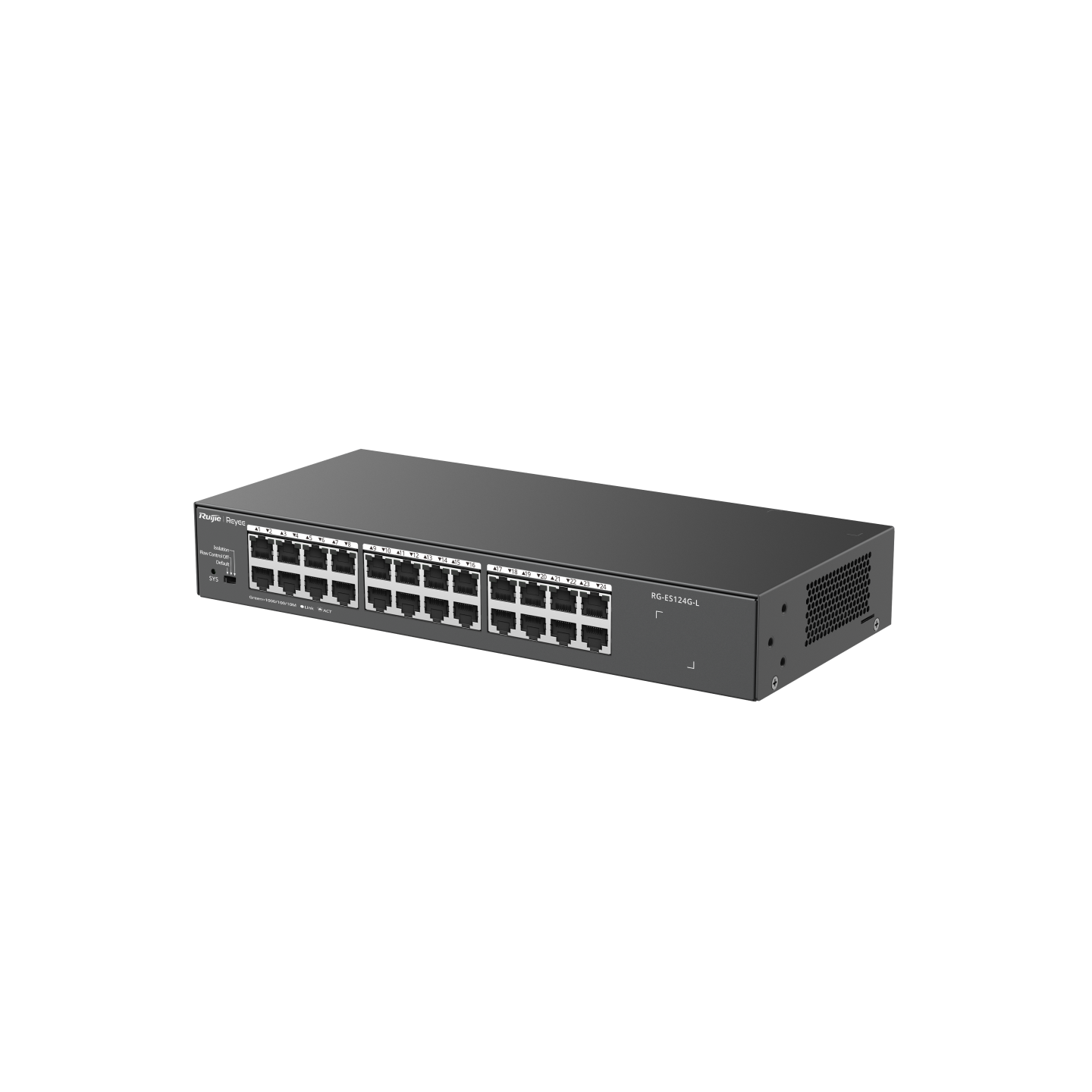

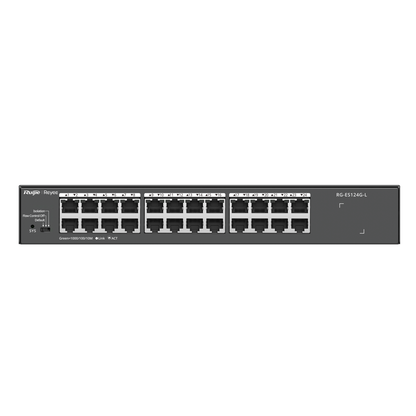

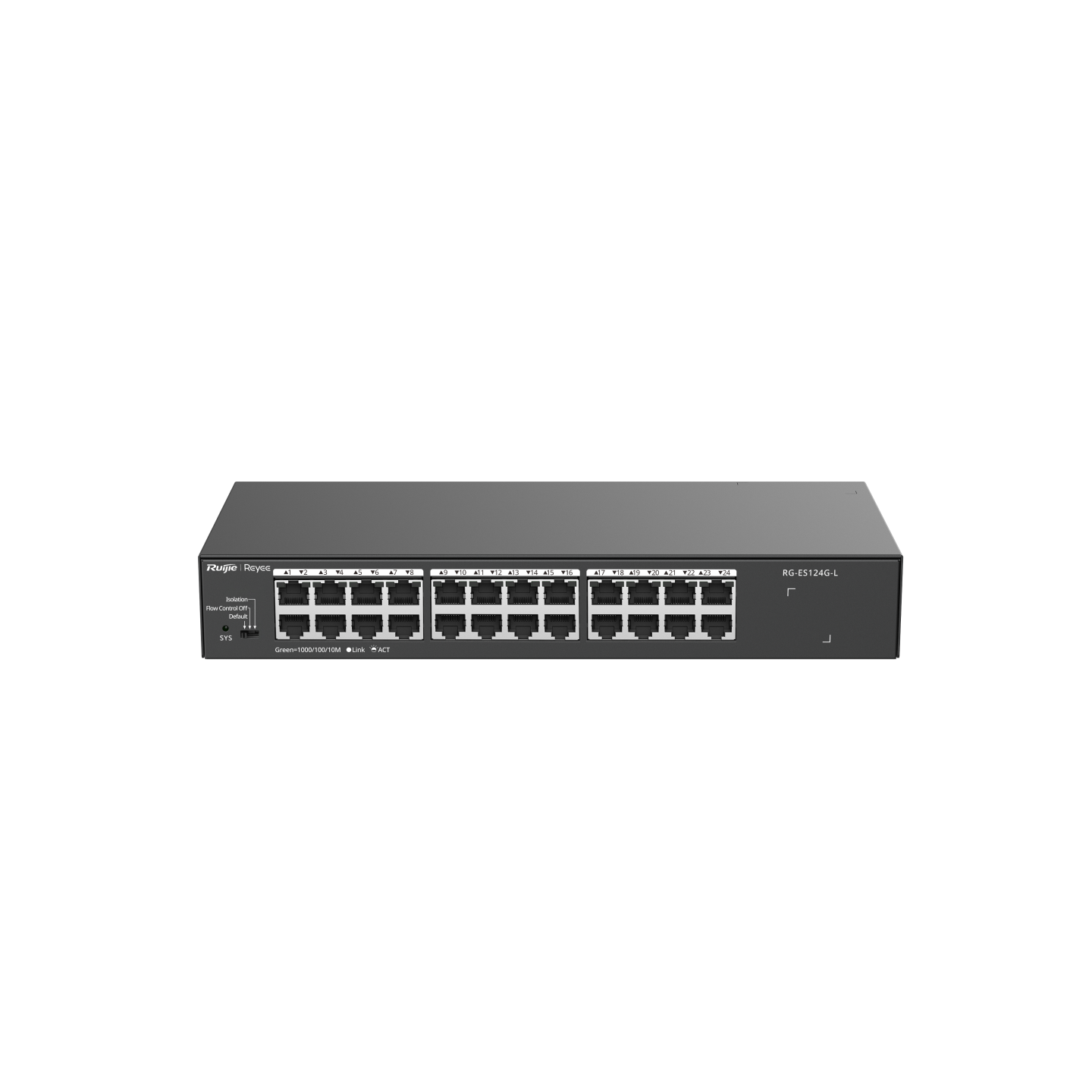

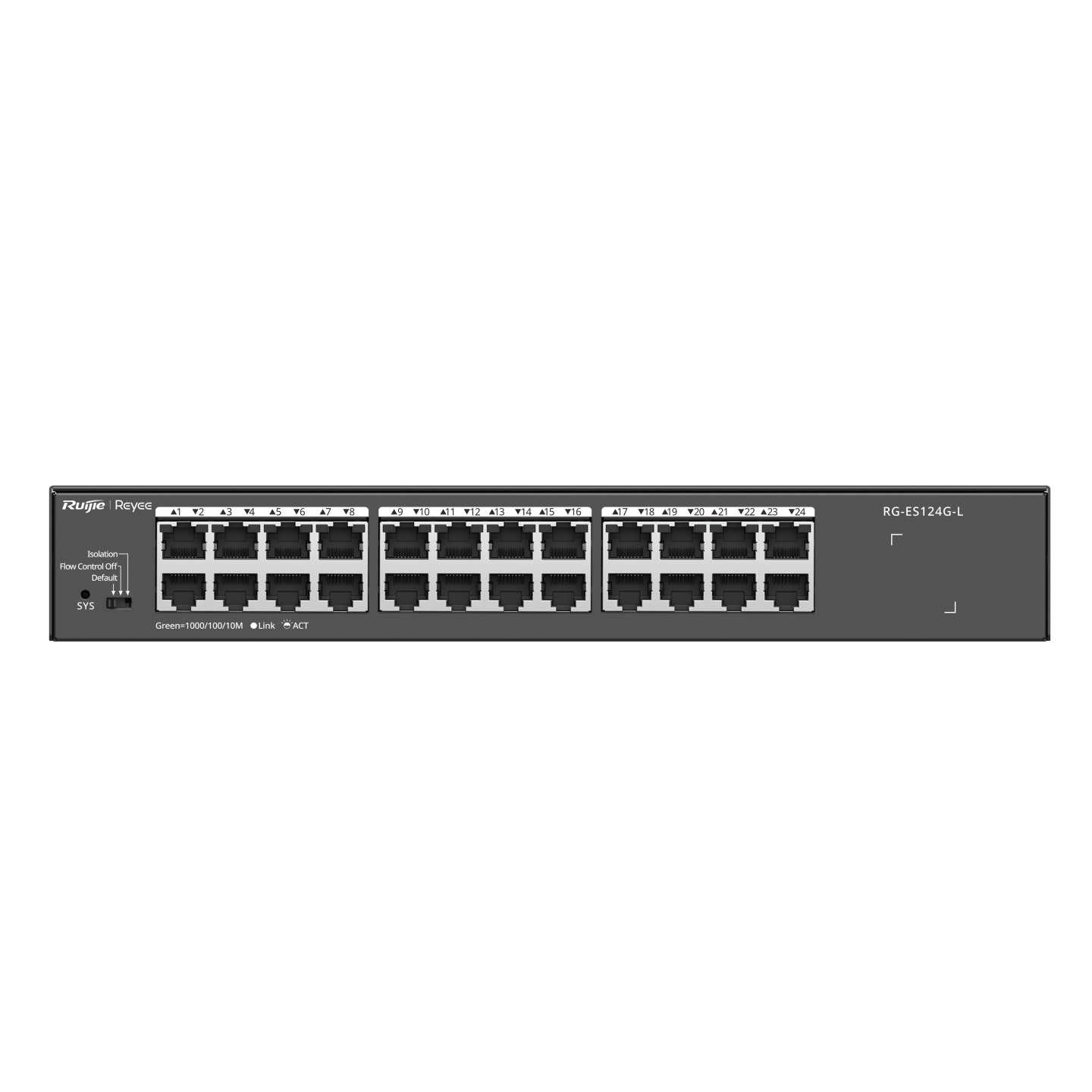

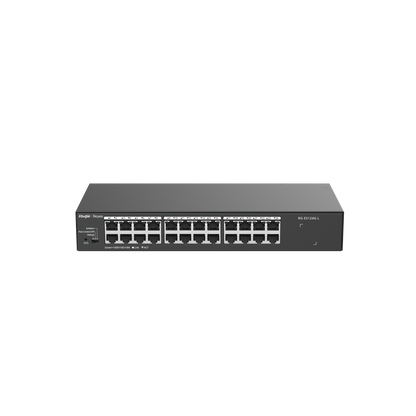

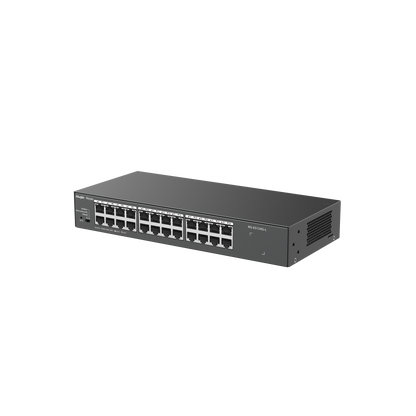

Reyee Gigabit Unmanaged Switch-Metal | RG-ES124G-L

Reyee Gigabit Unmanaged Switch-Metal | RG-ES124G-L

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Unmanaged Non-PoE Switches
  • 24 Port

Unmanaged，24 GE

Key Features

  • Unmanaged，24 GE

Model: RG-ES124G-L

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Gigabit Unmanaged Switch-Metal | RG-ES124G-L
Login to View Price

Specifications

  • Total number of RJ45 ports: 24
  • Number of 10/100/1000BASE-T ports: 24
  • Operating temperature: 0°C to 45°C (32°F to 113°F)
  • Port isolation: Yes
  • Warranty: 3 years
  • Forwarding rate: 35.7 Mpps
  • Switching capacity: 48 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of MAC address entries: 8000
  • Recommended camera limit: 200W H265: 40 400W H265: 20

Hardware
  • Total number of RJ45 ports: 24
  • Number of 10/100/1000BASE-T ports: 24
  • Operating temperature: 0°C to 45°C (32°F to 113°F)
  • Port isolation: Yes

Other
  • Warranty: 3 years
  • Forwarding rate: 35.7 Mpps
  • Switching capacity: 48 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of MAC address entries: 8000
  • Recommended camera limit: 200W H265: 40 400W H265: 20
