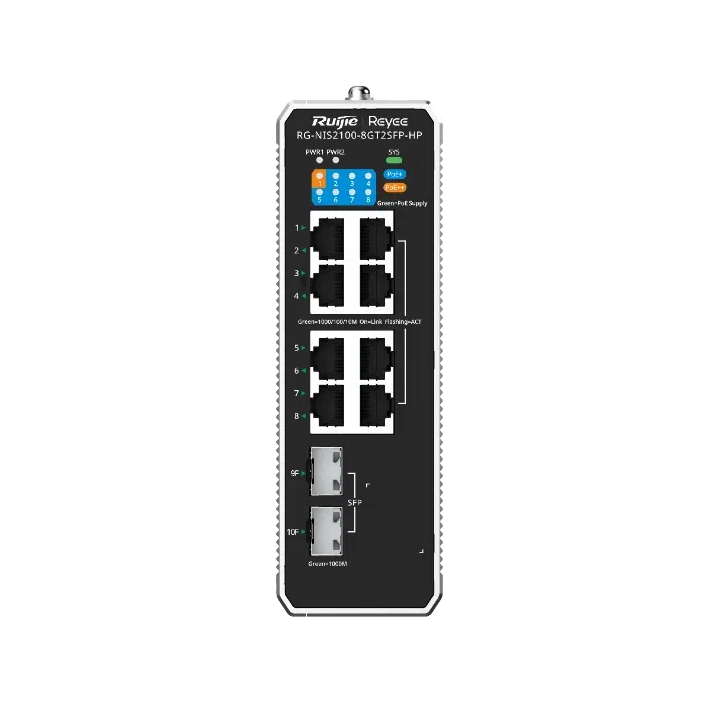

Reyee L2 Industrial Switch | RG-NIS2100-8GT2SFP-HP

Reyee L2 Industrial Switch | RG-NIS2100-8GT2SFP-HP

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Industrial Switch
  • Industrial PoE

Layer2, 8GT, 2SFP, PoE++, 300W

Key Features

  • Layer2
  • 8GT
  • 2SFP
  • PoE++
  • 300W

Model: RG-NIS2100-8GT2SFP-HP

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee L2 Industrial Switch | RG-NIS2100-8GT2SFP-HP
Login to View Price

Specifications

  • Total number of RJ45 ports: 8
  • Total number of optical ports: 2
  • Number of 1GE SFP ports: 2
  • Number of 10/100/1000BASE-T ports: 8
  • Number of PoE Out ports: 8
  • Number of PoE/PoE+ Out ports: 8
  • Number of PoE/PoE+/PoE++ Out ports: 1
  • PoE budget: Default: 228 W MAX: 300 W (web reserved adjustable interface)
  • PoE power pins: Port 1: 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 2–8: 1–2 (+), 3–6 (-)
  • Operating temperature: -40℃ to +75℃ (–40°F to +167°F)
  • PoE watchdog: Yes
  • Port isolation: Yes
  • Warranty: 5 years
  • Forwarding rate: 14.8 Mpps
  • Switching capacity: 20 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: EN 62638-1
  • Maximum number of VLANs: 16
  • Maximum number of MAC address entries: 8000
  • Cable test: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 90 400W H265: 45

Hardware
  • Total number of RJ45 ports: 8
  • Total number of optical ports: 2
  • Number of 1GE SFP ports: 2
  • Number of 10/100/1000BASE-T ports: 8
  • Number of PoE Out ports: 8
  • Number of PoE/PoE+ Out ports: 8
  • Number of PoE/PoE+/PoE++ Out ports: 1
  • PoE budget: Default: 228 W MAX: 300 W (web reserved adjustable interface)
  • PoE power pins: Port 1: 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 2–8: 1–2 (+), 3–6 (-)
  • Operating temperature: -40℃ to +75℃ (–40°F to +167°F)
  • PoE watchdog: Yes
  • Port isolation: Yes

Other
  • Warranty: 5 years
  • Forwarding rate: 14.8 Mpps
  • Switching capacity: 20 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: EN 62638-1
  • Maximum number of VLANs: 16
  • Maximum number of MAC address entries: 8000
  • Cable test: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 90 400W H265: 45
