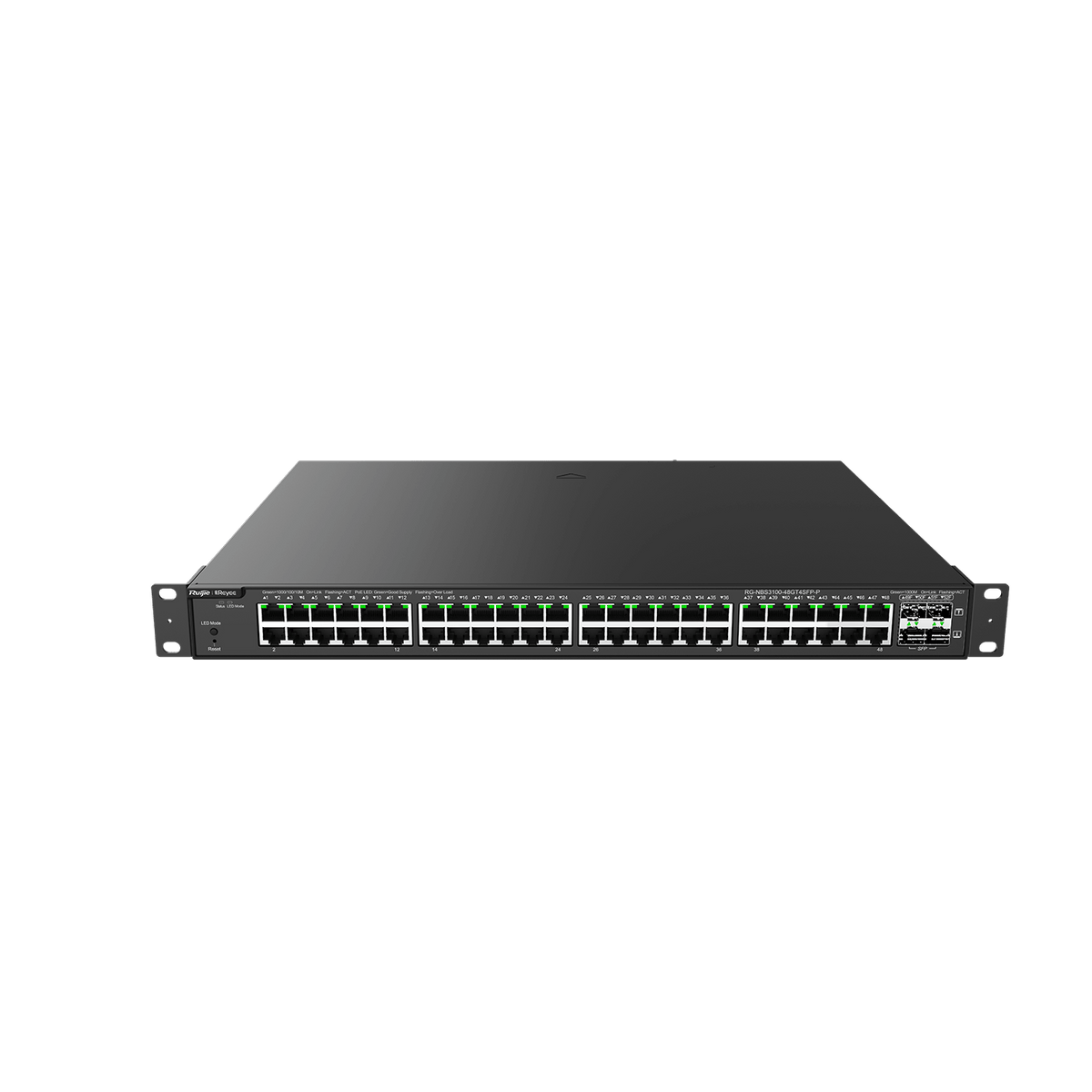

• RG-NBS3100-48GT4SFP-P product image

Reyee L2 NBS3100 Cloud Managed Switch-PoE-1G Up | RG-NBS3100-48GT4SFP-P

Reyee L2 NBS3100 Cloud Managed Switch-PoE-1G Up | RG-NBS3100-48GT4SFP-P

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed PoE Switches
  • 48 Port

52-Port Gigabit Layer 2 Cloud Managed PoE Switch

Key Features

  • 48 x 10/100/1000Base-T PoE+ ports
  • 4 SFP uplink

Model: RG-NBS3100-48GT4SFP-P

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee L2 NBS3100 Cloud Managed Switch-PoE-1G Up | RG-NBS3100-48GT4SFP-P
Login to View Price

Specifications

  • Total number of RJ45 ports: 48
  • Total number of optical ports: 4
  • Number of 1GE combo ports: No
  • Number of 1GE SFP ports: 4
  • Number of 10GE SFP+ ports: No
  • Number of 10/100BASE-T ports: No
  • Number of 10/100/1000BASE-T ports: 48
  • Number of 10/100/1000/2500BASE-T ports: No
  • Number of 100/1000/2.5G/5G/10GBASE-T ports: No
  • Number of PoE Out ports: 48
  • Number of PoE/PoE+ Out ports: 48
  • Number of PoE/PoE+/PoE++ Out ports: No
  • PoE budget: 370 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: 0°C to +50°C (32°F to 122°F)
  • PoE watchdog: Yes
  • Port isolation: Yes
  • Warranty: 5 years
  • Forwarding rate: 77.38 Mpps
  • Switching capacity: 104 Gbps(bit/s)
  • MTBF: 400,000 hours
  • Altitude: Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode
  • Safety compliance: IEC 62368-1
  • Maximum number of VLANs: 4094
  • Maximum number of MAC address entries: 16000
  • Cable test: Yes
  • Maximum number of ARP entries: 1000
  • IPv6: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200 W H265: 200 400 W H265: 100

Hardware
  • Total number of RJ45 ports: 48
  • Total number of optical ports: 4
  • Number of 1GE combo ports: No
  • Number of 1GE SFP ports: 4
  • Number of 10GE SFP+ ports: No
  • Number of 10/100BASE-T ports: No
  • Number of 10/100/1000BASE-T ports: 48
  • Number of 10/100/1000/2500BASE-T ports: No
  • Number of 100/1000/2.5G/5G/10GBASE-T ports: No
  • Number of PoE Out ports: 48
  • Number of PoE/PoE+ Out ports: 48
  • Number of PoE/PoE+/PoE++ Out ports: No
  • PoE budget: 370 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: 0°C to +50°C (32°F to 122°F)
  • PoE watchdog: Yes
  • Port isolation: Yes

Other
  • Warranty: 5 years
  • Forwarding rate: 77.38 Mpps
  • Switching capacity: 104 Gbps(bit/s)
  • MTBF: 400,000 hours
  • Altitude: Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode
  • Safety compliance: IEC 62368-1
  • Maximum number of VLANs: 4094
  • Maximum number of MAC address entries: 16000
  • Cable test: Yes
  • Maximum number of ARP entries: 1000
  • IPv6: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200 W H265: 200 400 W H265: 100
