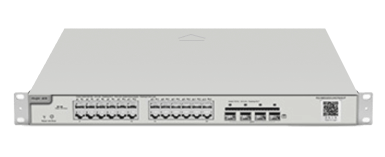

• RG-NBS3200-24GT4XS product image

Reyee L2+ NBS3200 Cloud Managed Switch-10G Up | RG-NBS3200-24GT4XS

Reyee L2+ NBS3200 Cloud Managed Switch-10G Up | RG-NBS3200-24GT4XS

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed Non-PoE Switches
  • 24 Port

24-Port L2 Managed 10G Switch, 24 Gigabit RJ45 Ports, 4 *10G SFP+ Slots,19-inch Rack-mountable Steel Case

Key Features

  • Layer 2
  • 24GT 4SFP+

Model: RG-NBS3200-24GT4XS

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee L2+ NBS3200 Cloud Managed Switch-10G Up | RG-NBS3200-24GT4XS
Login to View Price

Specifications

  • Total number of RJ45 ports: 24
  • Total number of optical ports: 4
  • Number of 1GE combo ports: No
  • Number of 1GE SFP ports: No
  • Number of 10GE SFP+ ports: 4
  • Number of 10/100BASE-T ports: No
  • Number of 10/100/1000BASE-T ports: 24
  • Number of 10/100/1000/2500BASE-T ports: No
  • Number of 100/1000/2.5G/5G/10GBASE-T ports: No
  • Operating temperature: 0°C to +50°C (32°F to 122°F)
  • PoE watchdog: No
  • Port isolation: Yes
  • Warranty: 5 years
  • Forwarding rate: 95.23 Mpps
  • Switching capacity: 128 Gbps(bit/s)
  • MTBF: 400,000 hours
  • Altitude: Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode
  • Safety compliance: IEC 62368-1
  • Maximum number of VLANs: 4094
  • Maximum number of MAC address entries: 16000
  • Cable test: Yes
  • Maximum number of ARP entries: 1000
  • IPv6: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200 W H265: 280 400 W H265: 140

Hardware
  • Total number of RJ45 ports: 24
  • Total number of optical ports: 4
  • Number of 1GE combo ports: No
  • Number of 1GE SFP ports: No
  • Number of 10GE SFP+ ports: 4
  • Number of 10/100BASE-T ports: No
  • Number of 10/100/1000BASE-T ports: 24
  • Number of 10/100/1000/2500BASE-T ports: No
  • Number of 100/1000/2.5G/5G/10GBASE-T ports: No
  • Operating temperature: 0°C to +50°C (32°F to 122°F)
  • PoE watchdog: No
  • Port isolation: Yes

Other
  • Warranty: 5 years
  • Forwarding rate: 95.23 Mpps
  • Switching capacity: 128 Gbps(bit/s)
  • MTBF: 400,000 hours
  • Altitude: Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode
  • Safety compliance: IEC 62368-1
  • Maximum number of VLANs: 4094
  • Maximum number of MAC address entries: 16000
  • Cable test: Yes
  • Maximum number of ARP entries: 1000
  • IPv6: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200 W H265: 280 400 W H265: 140
