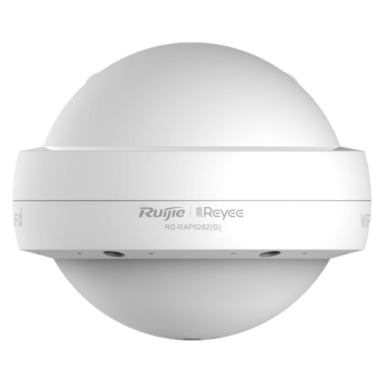

• RG-RAP6202(G) product image

Reyee Outdoor Wi-Fi 5 AP, 1.267Gbps | RG-RAP6202(G)

Reyee Outdoor Wi-Fi 5 AP, 1.267Gbps | RG-RAP6202(G)

Category: Wireless Networking
|
Brand: Ruijie Reyee
  • Wireless Networking
  • Wi-Fi 6 Access Points
  • Outdoor Wi-Fi

AC1300 Dual Band Outdoor Access Point, IP68 waterproof, 867Mbps at 5GHz + 400Mbps at 2.4GHz, 2 10/100/1000base-t Ethernet uplink port, Internal omnidirectional antennas，support 802.11a/b/g/n/ac;802.3at/af PoE Local power supply, DC 12V/1.5A

Key Features

  • IP68
  • Wi-Fi5
  • 1267Mbps
  • Recommended 80 Client
  • 2 GE ports

Model: RG-RAP6202(G)

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Outdoor Wi-Fi 5 AP, 1.267Gbps | RG-RAP6202(G)
Login to View Price

Specifications

  • Product dimensions (diameter x height): Ø200 mm x 166 mm (Ø7.87 in. x 6.54 in.) (spherical device, excluding the mounting bracket)
  • Package dimensions (W x D x H): 472 mm x 257 mm x 223 mm (18.58 in. x 10.12 in. x 8.78 in.)
  • Color: White
  • Weight: ≤ 1 kg (2.20 lbs.) (without packaging materials)
  • Shipping weight: ≤ 2.73 kg (6.02 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
  • Local power supply: Yes, one DC power connector (12 V, 1.5 A)
  • Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.)
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 12.95 W
  • Operating temperature: –30°C to +65°C (–22°F to +149°F)
  • Storage temperature: –40°C to +85°C (–40°F to +185°F)
  • IP rating: IP68
  • Certification: CE, FCC, CB, ISED, cTUVus
  • Package Contents: 1 x AP 2 x Pole clamps 1 x Mounting bracket 4 x Expansion anchors (M8 x 60 mm) 2 x Internal/External hex machine screws (M8 x 20 mm) 2 x Cable glands (pre-installed) 1 x Connecting rod (pre-installed) 1 x User Manual 1 x Warranty Card
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 1266 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 866 Mbps
  • 2.4 GHz wireless data rate: 400 Mbps
  • Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.00 dBi
  • Antenna gain (2.4 GHz): 3.00 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes
  • Product Type: Outdoor AP
  • Coverage range: 5 GHz max: 400 m (1312.34 ft.) 2.4 GHz max: 150 m (492.13 ft.) 5 GHz recommended: 200 m (656.17 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 300

Hardware
  • Product dimensions (diameter x height): Ø200 mm x 166 mm (Ø7.87 in. x 6.54 in.) (spherical device, excluding the mounting bracket)
  • Package dimensions (W x D x H): 472 mm x 257 mm x 223 mm (18.58 in. x 10.12 in. x 8.78 in.)
  • Color: White
  • Weight: ≤ 1 kg (2.20 lbs.) (without packaging materials)
  • Shipping weight: ≤ 2.73 kg (6.02 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
  • Local power supply: Yes, one DC power connector (12 V, 1.5 A)
  • Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.)
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 12.95 W
  • Operating temperature: –30°C to +65°C (–22°F to +149°F)
  • Storage temperature: –40°C to +85°C (–40°F to +185°F)
  • IP rating: IP68
  • Certification: CE, FCC, CB, ISED, cTUVus
  • Package Contents: 1 x AP 2 x Pole clamps 1 x Mounting bracket 4 x Expansion anchors (M8 x 60 mm) 2 x Internal/External hex machine screws (M8 x 20 mm) 2 x Cable glands (pre-installed) 1 x Connecting rod (pre-installed) 1 x User Manual 1 x Warranty Card

Wireless
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 1266 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 866 Mbps
  • 2.4 GHz wireless data rate: 400 Mbps
  • Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.00 dBi
  • Antenna gain (2.4 GHz): 3.00 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)

Software
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes

Other
  • Product Type: Outdoor AP
  • Coverage range: 5 GHz max: 400 m (1312.34 ft.) 2.4 GHz max: 150 m (492.13 ft.) 5 GHz recommended: 200 m (656.17 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 300
