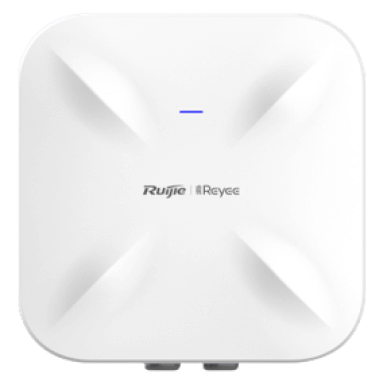

Reyee Outdoor Wi-Fi 6 AP, 1.775Gbps | RG-RAP6260(G)
Reyee Outdoor Wi-Fi 6 AP, 1.775Gbps | RG-RAP6260(G)
- Wireless Networking
- Wi-Fi 6 Access Points
- Outdoor Wi-Fi
AX1800 Wi-Fi 6 Outdoor Access Point. IP68, 1775M Dual band dual radio AP. Internal antenna; 1 10/100/1000 Base-T Ethernet ports supports PoE In; 1 100/1000 Base-X SFP Gigabit port; 2.4GHz/5GHz dual-radio; 802.11a/b/g/n/ac Wave1/Wave2/ax protocol, 2x2 MIMO, Max throughput with 1775Mbps. Support AP and routing mode, Support layer 2 and layer 3 roaming. Unified networking and Ruijie Cloud app management; Maximum power consumption <18W. The power supply output should higher than AP max power consumption.
Key Features
- IP68
- Wi-Fi 6 1775Mbps
- 1xGE+1xSFP
- Recommended 100 Clients
Model: RG-RAP6260(G)
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Reyee Outdoor Wi-Fi 6 AP, 1.775Gbps | RG-RAP6260(G)
Specifications
- Product dimensions (W x D x H): 298 mm x 298 mm x 65 mm (11.73 in. x 11.73 in. x 2.56 in.) (excluding the mounting bracket)
- Package dimensions (W x D x H): 435 mm x 385 mm x 182 mm (17.13 in. x 15.16 in. x 7.17 in.)
- Color: White
- Weight: ≤ 1.35 kg (2.98 lbs.) (without packaging materials)
- Shipping weight: ≤ 3.32 kg (7.32 lbs.)
- Number of 10/100/1000BASE-T ports: 1
- Number of 1GE SFP ports: 1
- Power supply: PoE+
- Local power supply: No
- Dimensions of the DC connector: No
- PoE In standard: IEEE 802.3at (PoE+)
- Maximum power consumption: 18 W
- Operating temperature: –40°C to +65°C (–40°F to +149°F)
- Storage temperature: –40°C to +85°C (–40°F to +185°F)
- IP rating: IP68
- Certification: CE, CB
- Package Contents: 1 x AP 2 x Pole clamps 1 x Mounting bracket 2 x Cross pan head screws (M4 x 10 mm) 2 x Internal/External hex machine screws (M8 x 20 mm) 4 x Expansion anchors (M8 x 60 mm) 1 x Cable gland for an SFP port 1 x Cable gland for an Ethernet port (pre-installed) 1 x SFP port plug (pre-installed) 1 x Mounting arm (pre-installed) 1 x User Manual 1 x Warranty Card
- 6 GHz Wi-Fi: No
- 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax)
- 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax)
- 6 GHz channel width: No
- 5 GHz channel width: Auto/20/40/80 MHz
- 2.4 GHz channel width: Auto/20/40 MHz
- Maximum wireless data rate: 1774 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 1201 Mbps
- 2.4 GHz wireless data rate: 573 Mbps
- Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
- Antenna horizontal orientation: No
- Antenna vertical orientation: No
- Antenna gain (6 GHz): No
- Antenna gain (5 GHz): 6.00 dBi
- Antenna gain (2.4 GHz): 4.00 dBi
- Maximum number of associated wireless clients: 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)
- Recommended number of associated wireless clients: ● Support for IEEE 802.11ax: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
- AP mode: Yes
- Routing mode: Yes
- AI roaming: Yes
- Wireless repeater mode: Yes
- Product Type: Outdoor AP
- Coverage range: 5 GHz max: 400 m (1312.34 ft.) 2.4 GHz max: 150 m (492.13 ft.) 5 GHz recommended: 200 m (656.17 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
- MLO: No
- 4K-QAM: No
- Maximum number of devices that can be managed: 300
