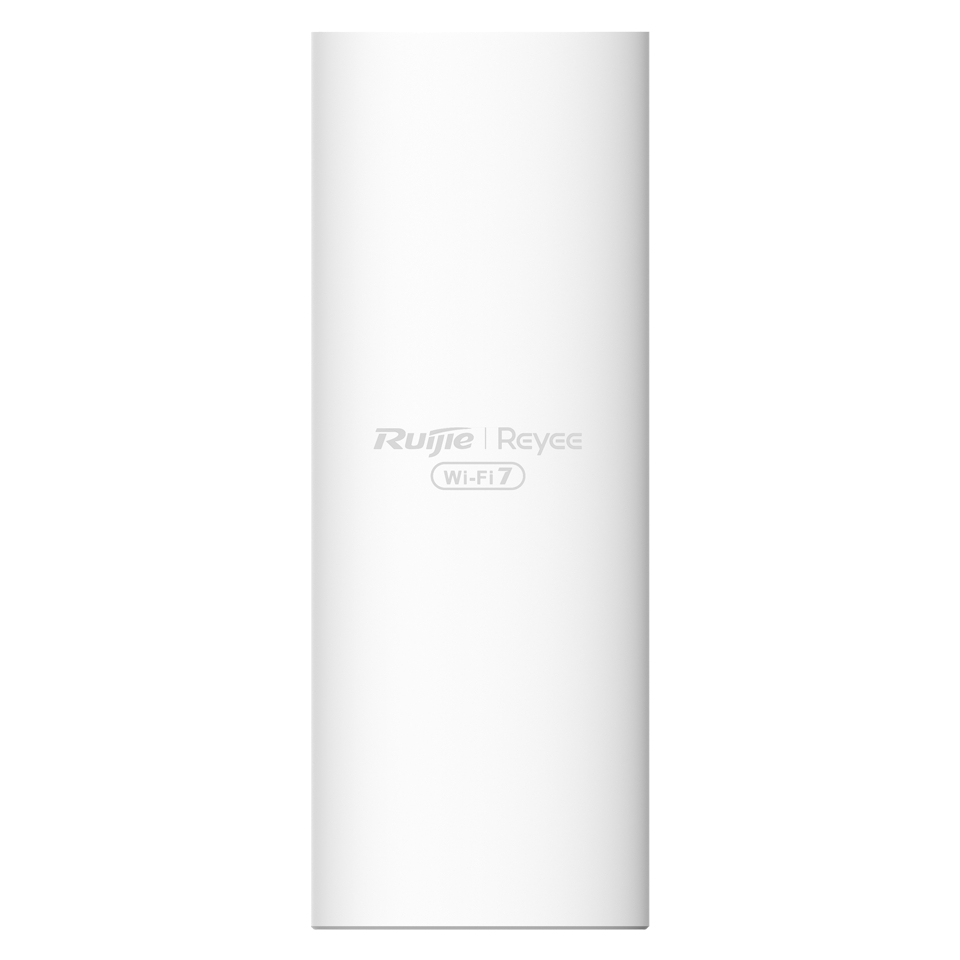

• RG-RAP72PRO-OD product image

Reyee Outdoor Wi-Fi 7 AP, 5.011Gbps | RG-RAP72Pro-OD

Reyee Outdoor Wi-Fi 7 AP, 5.011Gbps | RG-RAP72Pro-OD

Category: Wireless Networking
|
Brand: Ruijie Reyee
  • Wireless Networking
  • Wi-Fi 7 Access Points
  • Outdoor Wi-Fi

Wi-Fi 7 BE5040 dual-band outdoor access point; Up to 5 spatial streams; 1 x 100/1000/2500BASE-T port; Unified networking and management via Ruijie Cloud and Ruijie Reyee App. Maximum power consumption < 18 W; IEEE 802.3af/at-compliant PoE power supply

Key Features

  • WiFi7
  • BE5040
  • Outdoor

Model: RG-RAP72Pro-OD

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Outdoor Wi-Fi 7 AP, 5.011Gbps | RG-RAP72Pro-OD
Login to View Price

Specifications

  • Product dimensions (W x D x H): 90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in.) (excluding the mounting bracket)
  • Package dimensions (W x D x H): 131 mm x 73 mm x 288 mm (5.16 in. x 2.87 in. x 11.34 in.)
  • Color: White
  • Weight: ≤ 0.7 kg (1.54 lbs.) (without packaging materials)
  • Shipping weight: ≤ 1 kg (2.20 lbs)
  • Number of 10/100/1000/2500BASE-T ports: 1
  • Power supply: PoE/PoE+
  • Local power supply: No
  • Dimensions of the DC connector: No
  • PoE In standard: ● IEEE 802.3af (PoE) Note: Radio transmission and reception is limited to 1T1R at 2.4 GHz and 2T2R at 5 GHz. ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 21 W
  • Operating temperature: –30°C to +65°C (–22°F to +149°F)
  • Storage temperature: –40°C to +85°C (–40°F to +185°F)
  • IP rating: IP65
  • Certification: CE, FCC, CB, ISED, cTUVus
  • Package Contents: 1 x AP 1 x Mounting bracket 1 x Metal hose clamp 2 x Cross pan head screws (ST3.5 x 25 mm) 2 x Plastic expansion anchors (φ6 x 25 mm) 1 x User Manual 1 x Warranty Card
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80/160 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 5011 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 4323 Mbps
  • 2.4 GHz wireless data rate: 688 Mbps
  • Antenna: 5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 6.28 dBi
  • Antenna gain (2.4 GHz): 3.62 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes
  • Product Type: Outdoor
  • Coverage range: 5 GHz max: 300 m (984.25 ft.) 2.4 GHz max: 100 m (328.08 ft.) 5 GHz recommended: 150 m (492.13 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: Yes
  • 4K-QAM: Yes
  • Maximum number of devices that can be managed: 300

Hardware
  • Product dimensions (W x D x H): 90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in.) (excluding the mounting bracket)
  • Package dimensions (W x D x H): 131 mm x 73 mm x 288 mm (5.16 in. x 2.87 in. x 11.34 in.)
  • Color: White
  • Weight: ≤ 0.7 kg (1.54 lbs.) (without packaging materials)
  • Shipping weight: ≤ 1 kg (2.20 lbs)
  • Number of 10/100/1000/2500BASE-T ports: 1
  • Power supply: PoE/PoE+
  • Local power supply: No
  • Dimensions of the DC connector: No
  • PoE In standard: ● IEEE 802.3af (PoE) Note: Radio transmission and reception is limited to 1T1R at 2.4 GHz and 2T2R at 5 GHz. ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 21 W
  • Operating temperature: –30°C to +65°C (–22°F to +149°F)
  • Storage temperature: –40°C to +85°C (–40°F to +185°F)
  • IP rating: IP65
  • Certification: CE, FCC, CB, ISED, cTUVus
  • Package Contents: 1 x AP 1 x Mounting bracket 1 x Metal hose clamp 2 x Cross pan head screws (ST3.5 x 25 mm) 2 x Plastic expansion anchors (φ6 x 25 mm) 1 x User Manual 1 x Warranty Card

Wireless
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80/160 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 5011 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 4323 Mbps
  • 2.4 GHz wireless data rate: 688 Mbps
  • Antenna: 5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 6.28 dBi
  • Antenna gain (2.4 GHz): 3.62 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)

Software
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes

Other
  • Product Type: Outdoor
  • Coverage range: 5 GHz max: 300 m (984.25 ft.) 2.4 GHz max: 100 m (328.08 ft.) 5 GHz recommended: 150 m (492.13 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: Yes
  • 4K-QAM: Yes
  • Maximum number of devices that can be managed: 300
