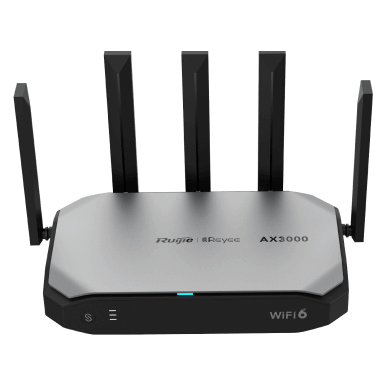

• RG-EG105GW-X product image

Reyee Router EG100 Series-Wireless | RG-EG105GW-X

Reyee Router EG100 Series-Wireless | RG-EG105GW-X

Category: Router
|
Brand: Ruijie Reyee
  • Router
  • Wi-Fi Routers

Wi-Fi 6 AX3000 all-in-one enterprise-class wireless router, including 5 Gigabit copper ports, support 1 WAN port, 1 LAN port, and 3 LAN/WAN ports; Maximum of 160 concurrent users are recommended, include wired and wireless clients; With a maximum throughput of 1.2Gbps; Supports cloud remote management and Reyee Mesh.

Key Features

  • Wi-Fi 6
  • AX3000
  • 160 Clients
  • Reyee Mesh
  • VPN
  • Load Balancing
  • Multi-VLAN

Model: RG-EG105GW-X

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Router EG100 Series-Wireless | RG-EG105GW-X
Login to View Price

Specifications

  • Maximum number of LAN ports: 4
  • Number of fixed LAN ports: 1
  • Number of fixed WAN ports: 1
  • Number of LAN/WAN ports: 3
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Load balancing by link weight: Yes
  • Wi-Fi standard: Wi-Fi 6 (IEEE 802.11ax) standard, compatible with IEEE 802.11a/b/g/n/ac standards
  • 2.4 GHz wireless data rate: 573 Mbps
  • 5 GHz wireless data rate: 2401 Mbps
  • Maximum transmit power (2.4 GHz): Combined power: 29 dBm (single-stream power: 26 dBm) Note: The transmit power varies according to regulations in different countries and regions.
  • Maximum transmit power (5 GHz): Combined power: 30.7 dBm (single-stream power: 26 dBm) Note: The transmit power varies according to regulations in different countries and regions.
  • Maximum wireless data rate: 2974 Mbps
  • Product Type: Wireless router
  • CPU: Dual-core processor, 1.3 GHz clock frequency
  • Flash memory: 128 MB SPI NAND Flash
  • RAM: 512 MB DDR3
  • Coverage range: 145 ㎡ (1560.77 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • Log upload: Yes
  • Password authentication: Yes
  • Maximum number of VLANs: 16
  • Route selection by link quality: Yes
  • Web login information: Default IP Address: 192.168.110.1 Default password: admin
  • SD-WAN: Yes
  • Network detection switching time: ≤ 10s
  • Multi-WAN bandwidth aggregation efficiency (lab data): ≥ 80%
  • Security zone: Yes
  • User group-based connection limiting: Yes
  • OpenVPN: Yes
  • Maximum number of branches in OpenVPN networking: 32
  • Maximum number of branches in PPTP VPN networking: 32

Hardware
  • Maximum number of LAN ports: 4
  • Number of fixed LAN ports: 1
  • Number of fixed WAN ports: 1
  • Number of LAN/WAN ports: 3
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Load balancing by link weight: Yes

Wireless
  • Wi-Fi standard: Wi-Fi 6 (IEEE 802.11ax) standard, compatible with IEEE 802.11a/b/g/n/ac standards
  • 2.4 GHz wireless data rate: 573 Mbps
  • 5 GHz wireless data rate: 2401 Mbps
  • Maximum transmit power (2.4 GHz): Combined power: 29 dBm (single-stream power: 26 dBm) Note: The transmit power varies according to regulations in different countries and regions.
  • Maximum transmit power (5 GHz): Combined power: 30.7 dBm (single-stream power: 26 dBm) Note: The transmit power varies according to regulations in different countries and regions.
  • Maximum wireless data rate: 2974 Mbps

Other
  • Product Type: Wireless router
  • CPU: Dual-core processor, 1.3 GHz clock frequency
  • Flash memory: 128 MB SPI NAND Flash
  • RAM: 512 MB DDR3
  • Coverage range: 145 ㎡ (1560.77 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • Log upload: Yes
  • Password authentication: Yes
  • Maximum number of VLANs: 16
  • Route selection by link quality: Yes
  • Web login information: Default IP Address: 192.168.110.1 Default password: admin
  • SD-WAN: Yes
  • Network detection switching time: ≤ 10s
  • Multi-WAN bandwidth aggregation efficiency (lab data): ≥ 80%
  • Security zone: Yes
  • User group-based connection limiting: Yes
  • OpenVPN: Yes
  • Maximum number of branches in OpenVPN networking: 32
  • Maximum number of branches in PPTP VPN networking: 32
