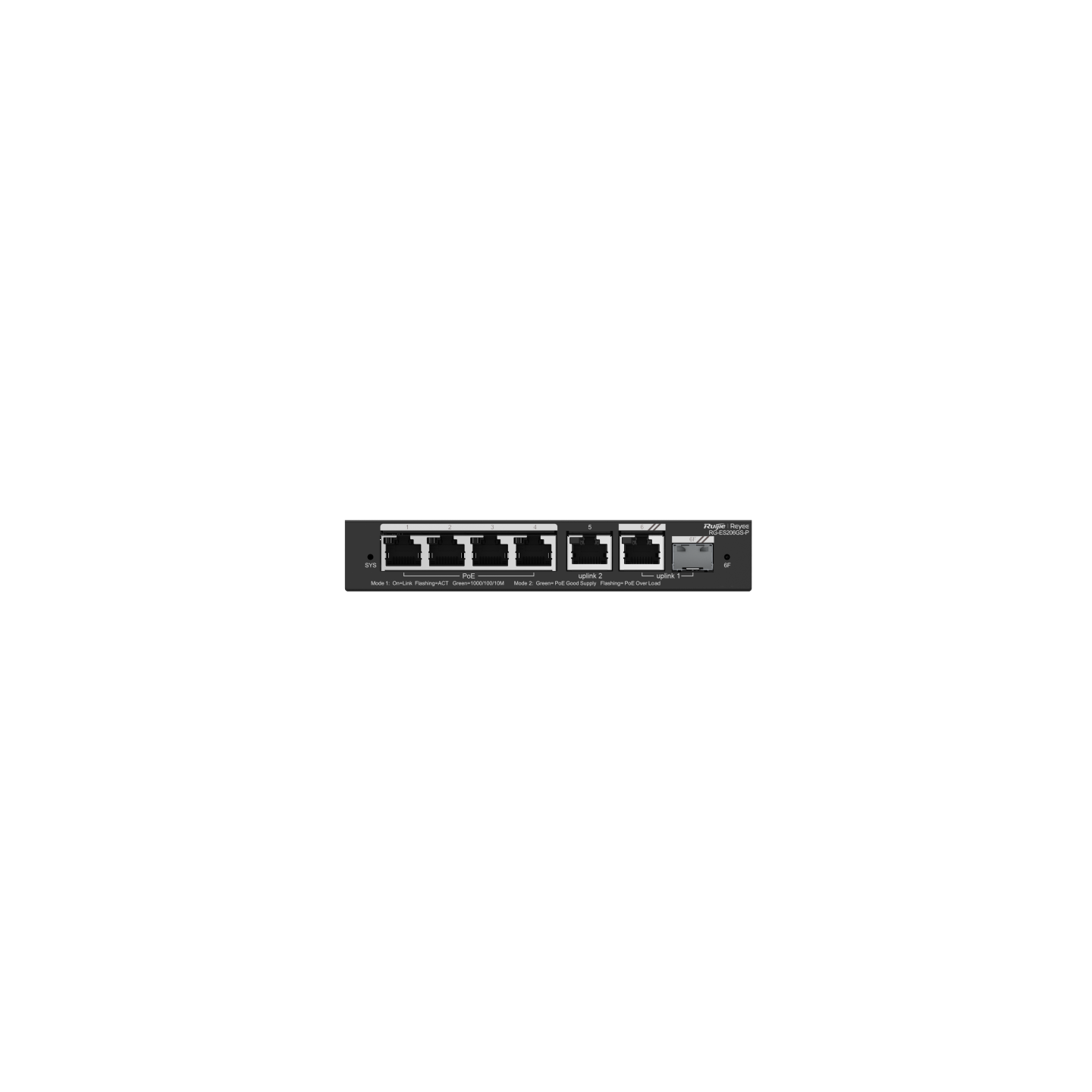

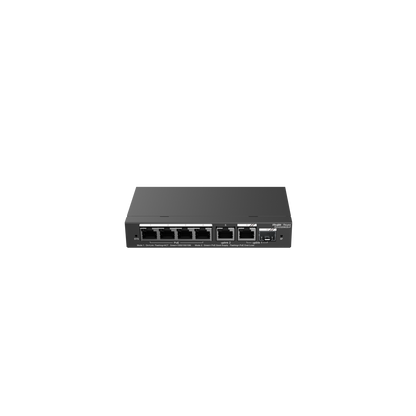

Reyee Smart CCTV Switch-PoE | RG-ES206GS-P
Reyee Smart CCTV Switch-PoE | RG-ES206GS-P
- Network Switches
- Managed PoE Switches
- 4 Port
6-Port Gigabit Smart Cloud Mananged PoE Switch
Key Features
- 6-Port Gigabit Managed Switch with 4 PoE+ Ports
- 1 Combo Port
Model: RG-ES206GS-P
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Reyee Smart CCTV Switch-PoE | RG-ES206GS-P
Specifications
- Total number of RJ45 ports: 6
- Total number of optical ports: 1
- Number of 1GE combo ports: 1
- Number of 1GE SFP ports: 1
- Number of 10/100/1000BASE-T ports: 6
- Number of PoE Out ports: 4
- Number of PoE/PoE+ Out ports: 4
- PoE budget: 54 W
- PoE power pins: 1–2 (+), 3–6 (-)
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- PoE watchdog: Yes
- Port isolation: Yes
- Warranty: 3 years
- Forwarding rate: 8.9 Mpps
- Switching capacity: 12 Gbps(bit/s)
- MTBF: 200,000 hours
- Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
- Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
- Safety compliance: EN 62368-1 IEC 62368-1
- Maximum number of VLANs: 16
- Maximum number of MAC address entries: 2000
- Cable test: Yes
- DHCP snooping: Yes
- Recommended camera limit: 200W H265: 40 400W H265: 20
