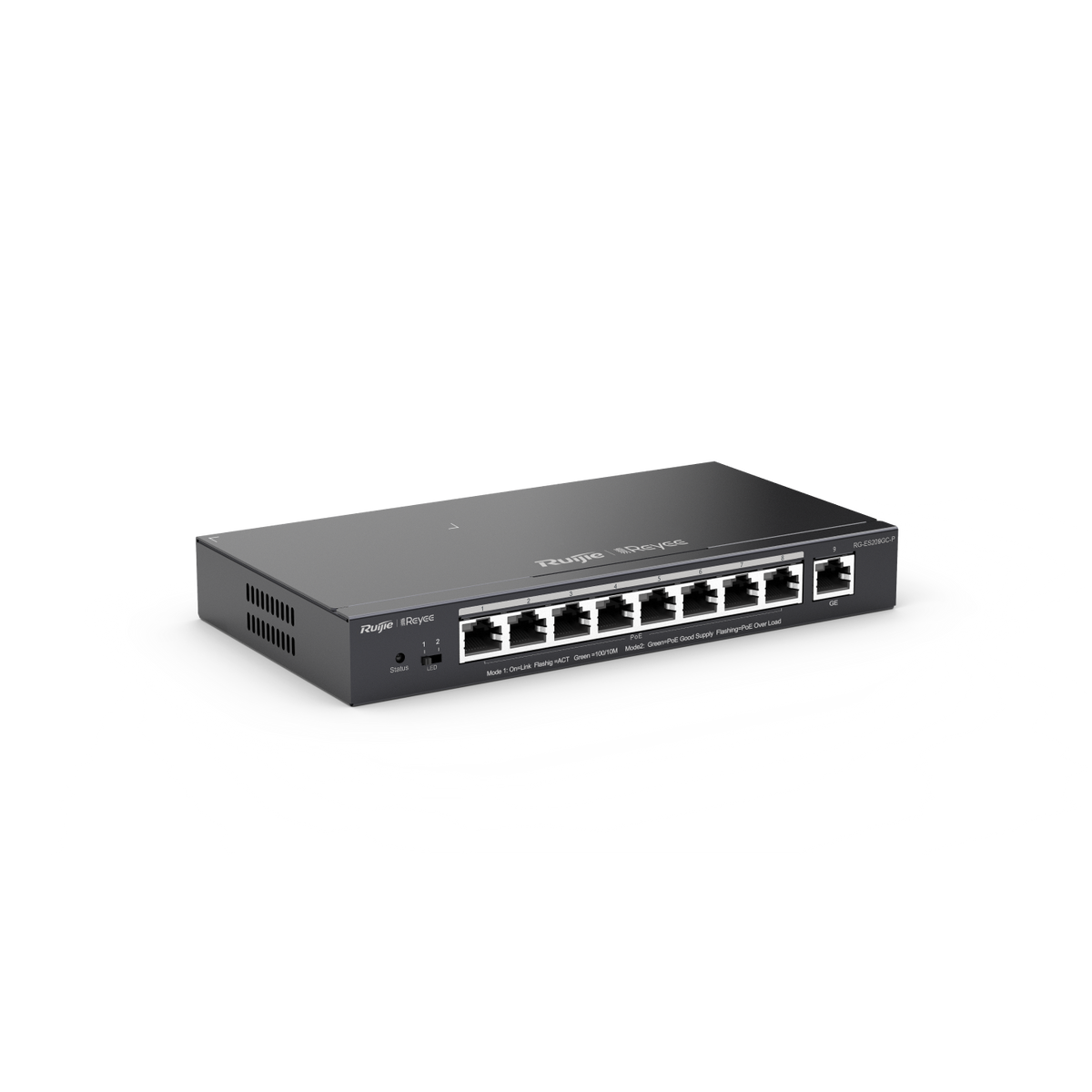

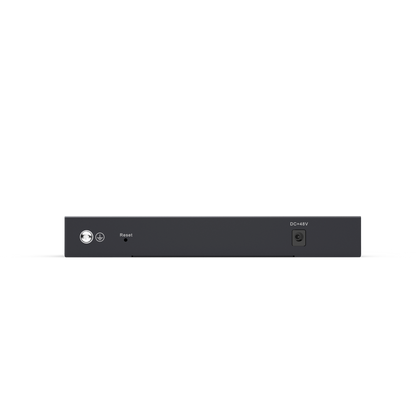

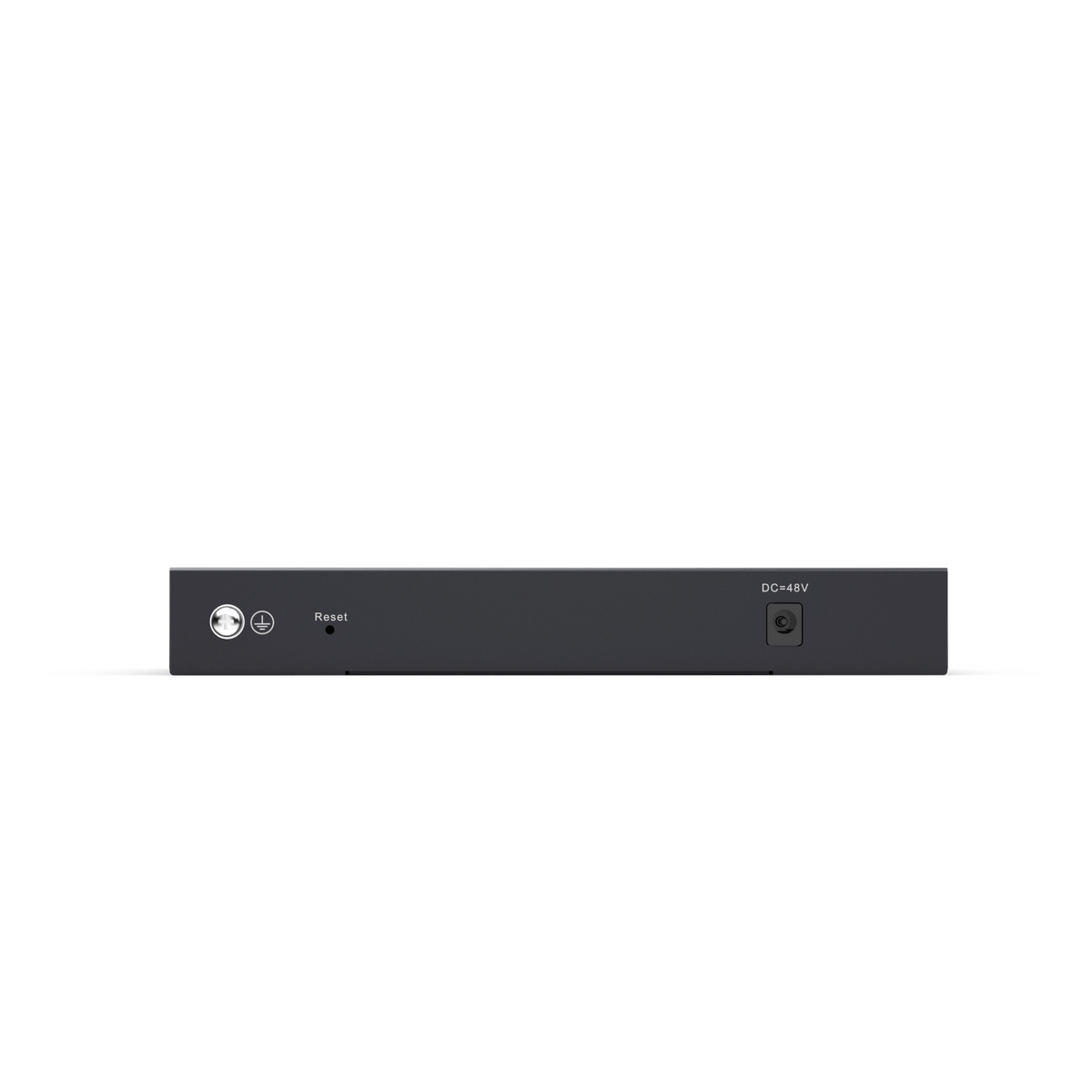

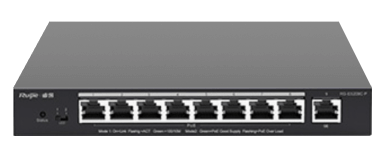

Reyee Smart CCTV Switch-PoE | RG-ES209GC-P

Reyee Smart CCTV Switch-PoE | RG-ES209GC-P

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed PoE Switches
  • 8 Port
  • 9-Port gigabit cloud managed switch with 8 PoE+ ports
  • Cost-Effective Smart Cloud Managed Switches
  • IP Camera Recognition, Unique Value for CCTV Network
  • Automatic Loop Prevention Ensures Service Continuity
  • Lifetime management on Ruijie Cloud at anytime anywhere
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Smart CCTV Switch-PoE | RG-ES209GC-P
Login to View Price

Specifications

  • Product Category: Layer 2
  • Warranty: 3 years
  • Total Number of RJ45 Ports: 9
  • Number of 10/100/1000BASE-T Ports: 9
  • Number of PoE Out Ports: 8
  • Number of PoE/PoE+ Out Ports: 8
  • PoE Budget: 120 W
  • PoE Power Pins: 1-2 (+), 3-6 (-)
  • Forwarding Rate: 13.4 Mpps
  • Switching Capacity: 18 Gbps (bit/s)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • PoE Watchdog: Yes
  • Port Isolation: Yes

Product Information
  • Product Category: Layer 2
  • Warranty: 3 years

Hardware
  • Total Number of RJ45 Ports: 9
  • Number of 10/100/1000BASE-T Ports: 9
  • Number of PoE Out Ports: 8
  • Number of PoE/PoE+ Out Ports: 8
  • PoE Budget: 120 W
  • PoE Power Pins: 1-2 (+), 3-6 (-)

System
  • Forwarding Rate: 13.4 Mpps
  • Switching Capacity: 18 Gbps (bit/s)

Environment
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)

Software
  • PoE Watchdog: Yes
  • Port Isolation: Yes
