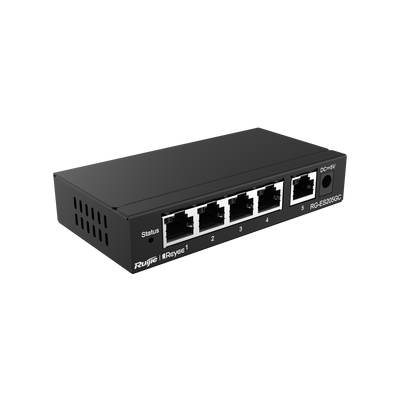

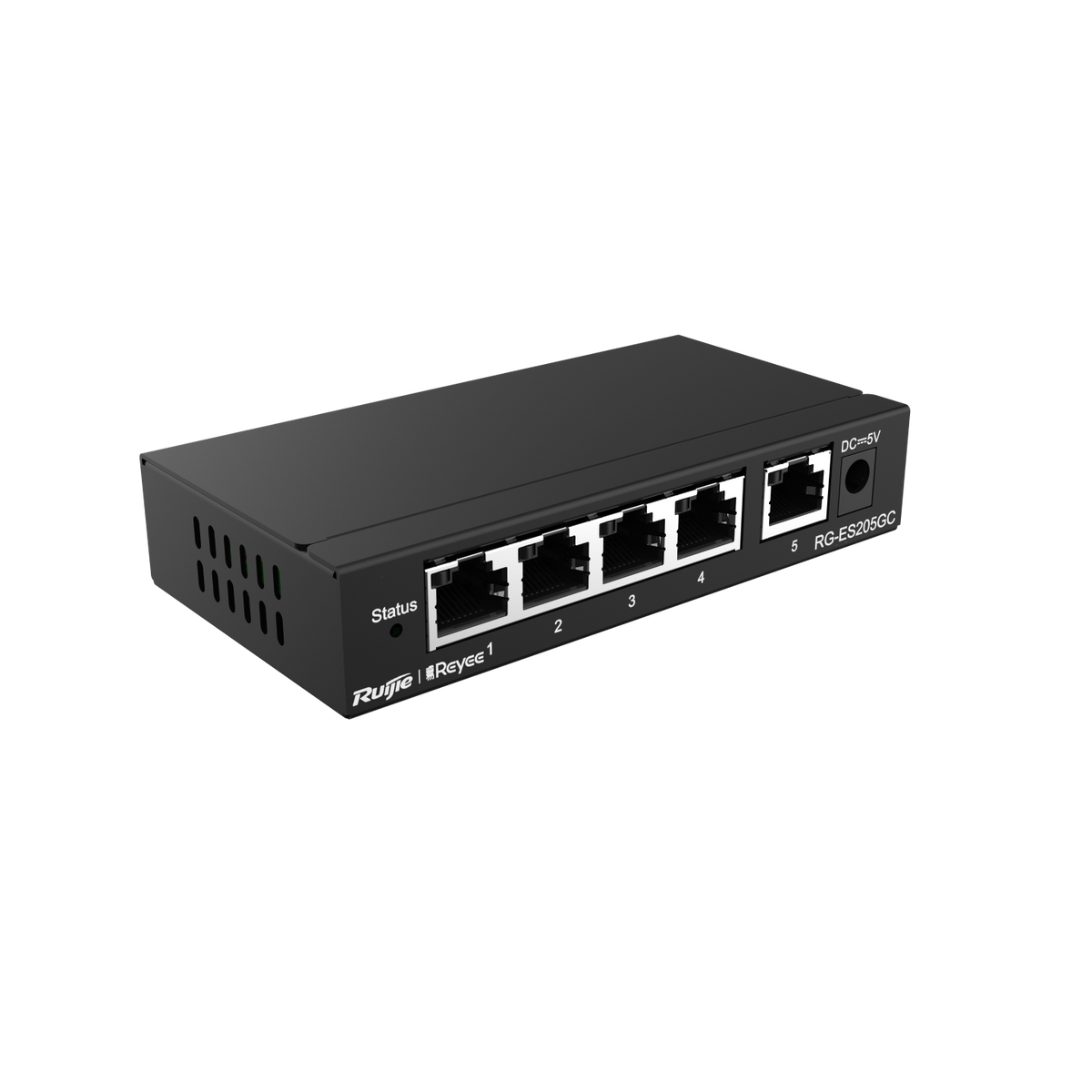

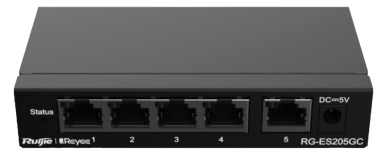

Reyee Smart CCTV Switch | RG-ES205GC

Reyee Smart CCTV Switch | RG-ES205GC

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed Non-PoE Switches
  • 5 Port

5-Port Gigabit Cloud Management Switch

Key Features

  • Smart Cloud Managed
  • 5GT

Model: RG-ES205GC

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Smart CCTV Switch | RG-ES205GC
Login to View Price

Specifications

  • Total number of RJ45 ports: 5
  • Number of 10/100/1000BASE-T ports: 5
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Port isolation: Yes
  • Warranty: 3 years
  • Forwarding rate: 7.4 Mpps
  • Switching capacity: 10 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±4 kV for common mode Power connector: ±2 kV for common mode and ±1 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 16
  • Maximum number of MAC address entries: 2000
  • Cable test: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 40 400W H265: 20

Hardware
  • Total number of RJ45 ports: 5
  • Number of 10/100/1000BASE-T ports: 5
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Port isolation: Yes

Other
  • Warranty: 3 years
  • Forwarding rate: 7.4 Mpps
  • Switching capacity: 10 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±4 kV for common mode Power connector: ±2 kV for common mode and ±1 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 16
  • Maximum number of MAC address entries: 2000
  • Cable test: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 40 400W H265: 20
