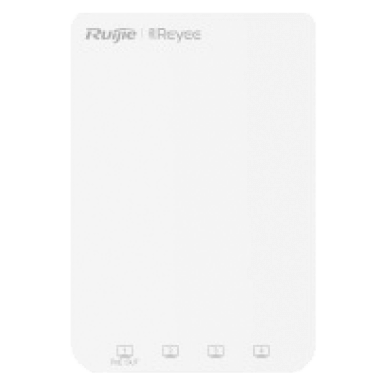

Reyee Wall-Mount Wi-Fi 5 AP, 1.267Gbps | RG-RAP1200(P)
Reyee Wall-Mount Wi-Fi 5 AP, 1.267Gbps | RG-RAP1200(P)
- Wireless Networking
- Wi-Fi 5 Access Points
- Wall-Mount Wi-Fi
AC1300 Dual Band gigabit wall plate AP, 4 front LAN ports, including 1 standard 802.3af PoE out port, built-in antennas, 1 gigabit uplink port, dual-band 2.4GHz/5GHz, 802.11a/b/g/n/ac Wave1/Wave2, up to 1267Mbps access rate per AP; support AP/ routing mode, Layer 3 roaming, Ruijie Cloud app management; Support 802.3af/at PoE (PoE and local power adapters sold separately)
- Wall-mounted
- PoE Out
- Wi-Fi 5
- 1267Mbps
- Recommended 80 clients
- 5 GE ports
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Reyee Wall-Mount Wi-Fi 5 AP, 1.267Gbps | RG-RAP1200(P)
Specifications
- Product Type: Wall AP
- 6 GHz Wi-Fi: No
- 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac)
- 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
- 6 GHz channel width: No
- 5 GHz channel width: Auto/20/40/80 MHz
- 2.4 GHz channel width: Auto/20/40 MHz
- Maximum wireless data rate: 1266 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 866 Mbps
- 2.4 GHz wireless data rate: 400 Mbps
- Coverage range: 40 ㎡ (430.56 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
- Antenna: 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas
- Antenna horizontal orientation: No
- Antenna vertical orientation: No
- Antenna gain (6 GHz): No
- Antenna gain (5 GHz): 2.00 dBi
- Antenna gain (2.4 GHz): 2.00 dBi
- Product dimensions (W x D x H): 86 mm x 50 mm x 126 mm (3.39 in. x 1.97 in. x 4.96 in.)
- Package dimensions (W x D x H): 150 mm x 110 mm x 65 mm (5.91 in. x 4.33 in. x 2.56 in.)
- Color: White
- Weight: ≤ 0.24 kg (0.53 lbs.) (without packaging materials)
- Shipping weight: ≤ 0.31 kg (0.68 lbs.)
- Number of 10/100/1000BASE-T ports: 5
- Power supply: PoE/PoE+
- Local power supply: No
- Dimensions of the DC connector: No
- PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
- Maximum power consumption: 8 W (excluding PoE output)
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: –40°C to +70°C (–40°F to +158°F)
- IP rating: IP41
- Certification: CE, FCC, CB, ISED, cTUVus
- Package Contents: 1 x AP 2 x Cross pan head screws (M4 x 40 mm) 1 x User Manual 1 x Warranty Card
- AP mode: Yes
- Routing mode: Yes
- Maximum number of associated wireless clients: 64 (2.4 GHz) 110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled)
- Recommended number of associated wireless clients: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
- MLO: No
- 4K-QAM: No
- AI roaming: Yes
- Maximum number of devices that can be managed: 300
- Wireless repeater mode: Yes
