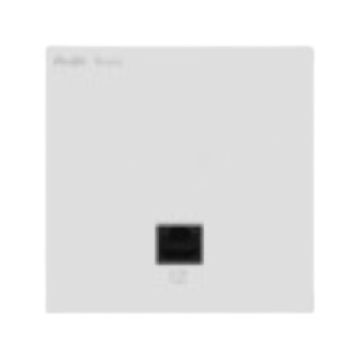

• RG-RAP1201 product image

Reyee Wall-Mount Wi-Fi 5 AP, 1.267Gbps | RG-RAP1201

Reyee Wall-Mount Wi-Fi 5 AP, 1.267Gbps | RG-RAP1201

Category: Wireless Networking
|
Brand: Ruijie Reyee
  • Wireless Networking
  • Wi-Fi 6 Access Points
  • Wall-Mount Wi-Fi

AC1300 Dual Band Wall Access Point, 867Mbps at 5GHz + 400Mbps at 2.4GHz, 2 10/100/1000 base-t Ethernet port include 1 uplink port ，Internal Antennas，support 802.11a/b/g/n/ac Wave1/Wave2, 2x2 MIMO,Maximum power consumption ≤9W. The power supply output should higher than AP max power consumption.

Key Features

  • Wi-Fi 5
  • 1267Mbps
  • 2* GE

Model: RG-RAP1201

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Wall-Mount Wi-Fi 5 AP, 1.267Gbps | RG-RAP1201
Login to View Price

Specifications

  • Product dimensions (W x D x H): 86 mm x 42.4 mm x 86 mm (3.39 in. x 1.67 in. x 3.39 in.)
  • Package dimensions (W x D x H): 113 mm x 91 mm x 52 mm (4.45 in. x 3.58 in. x 2.05 in.)
  • Color: White
  • Weight: ≤ 0.16 kg (0.35 lbs.) (without packaging materials)
  • Shipping weight: ≤ 0.19 kg (0.42 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: PoE/PoE+
  • Local power supply: No
  • Dimensions of the DC connector: No
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 9 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: IP41
  • Certification: CE, CB
  • Package Contents: 1 x AP 2 x Cross pan head screws (M4 x 40 mm) 1 x User Manual 1 x Warranty Card
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 1266 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 866 Mbps
  • 2.4 GHz wireless data rate: 400 Mbps
  • Antenna: Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.10 dBi
  • Antenna gain (2.4 GHz): 3.82 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes
  • Product Type: Wall AP
  • Coverage range: 30 ㎡ (322.92 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 150

Hardware
  • Product dimensions (W x D x H): 86 mm x 42.4 mm x 86 mm (3.39 in. x 1.67 in. x 3.39 in.)
  • Package dimensions (W x D x H): 113 mm x 91 mm x 52 mm (4.45 in. x 3.58 in. x 2.05 in.)
  • Color: White
  • Weight: ≤ 0.16 kg (0.35 lbs.) (without packaging materials)
  • Shipping weight: ≤ 0.19 kg (0.42 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: PoE/PoE+
  • Local power supply: No
  • Dimensions of the DC connector: No
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 9 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: IP41
  • Certification: CE, CB
  • Package Contents: 1 x AP 2 x Cross pan head screws (M4 x 40 mm) 1 x User Manual 1 x Warranty Card

Wireless
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 1266 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 866 Mbps
  • 2.4 GHz wireless data rate: 400 Mbps
  • Antenna: Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.10 dBi
  • Antenna gain (2.4 GHz): 3.82 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)

Software
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes

Other
  • Product Type: Wall AP
  • Coverage range: 30 ㎡ (322.92 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 150
