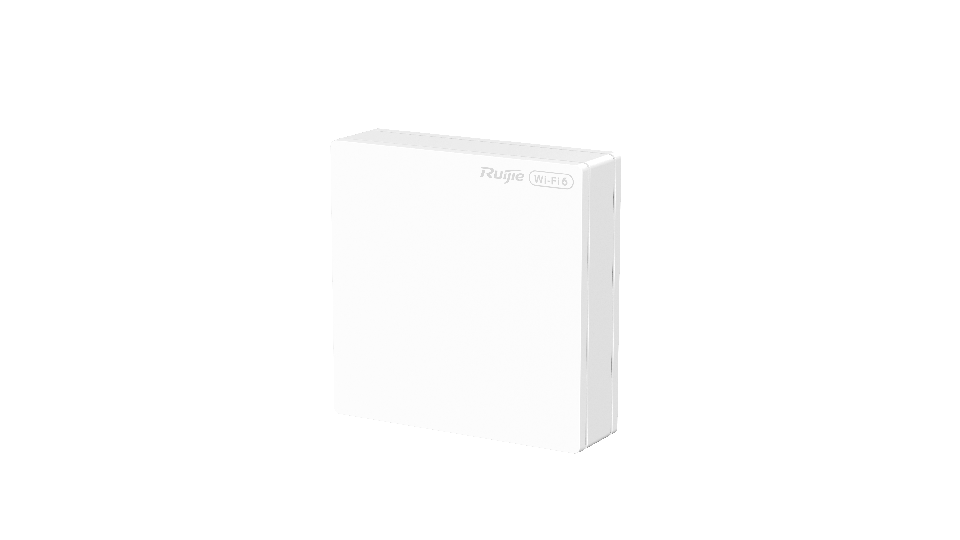

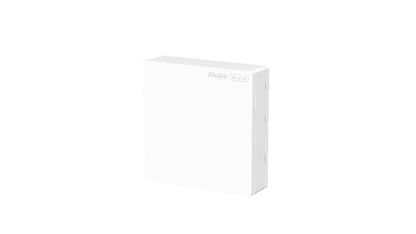

• RG-RAP62-WALL-LITE product image
1/4

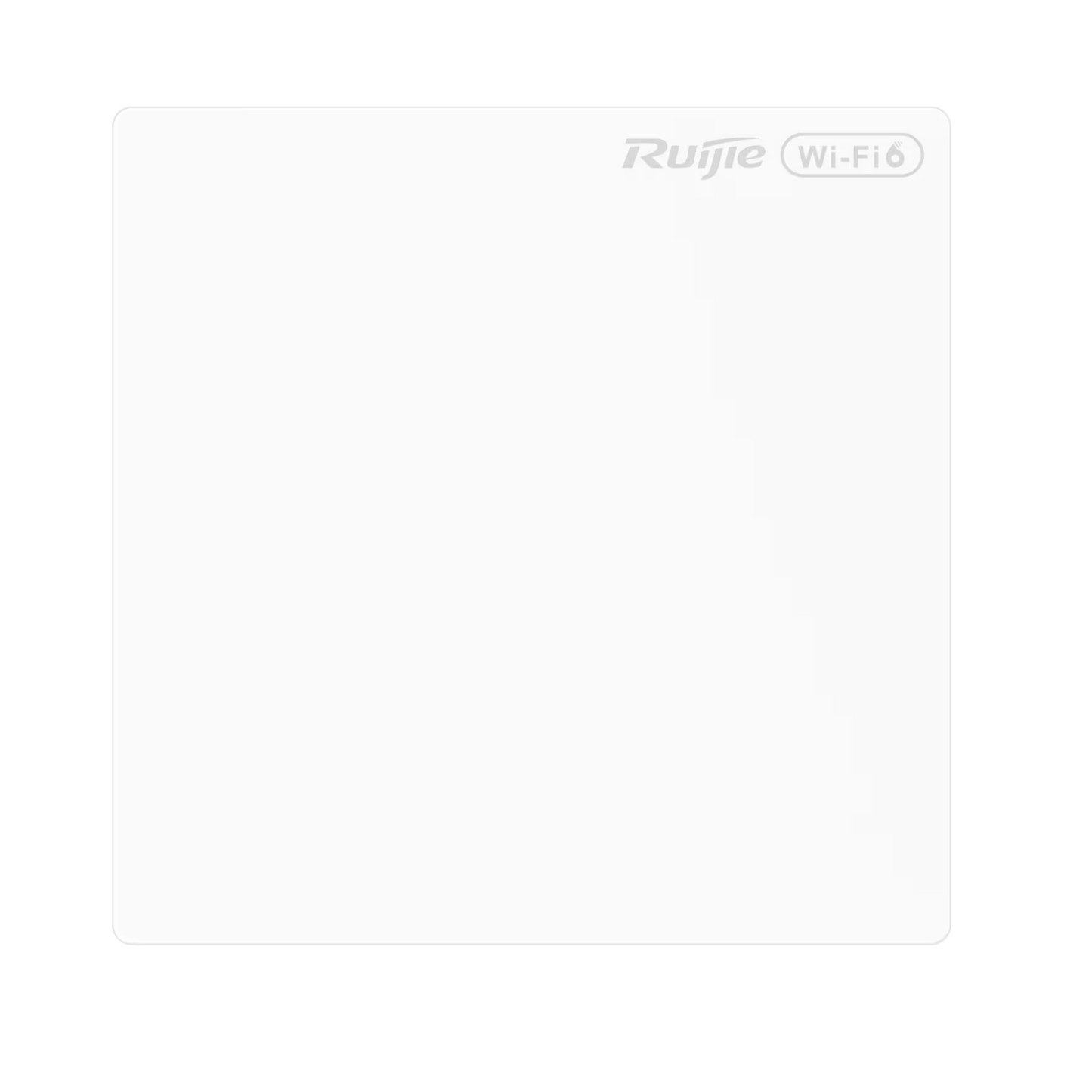

Reyee Wall-Mount Wi-Fi 6 AP, 2.974Gbps | RG-RAP62-Wall-Lite

Reyee Wall-Mount Wi-Fi 6 AP, 2.974Gbps | RG-RAP62-Wall-Lite

Category: Wireless Networking
|
Brand: Ruijie Reyee
  • Wireless Networking
  • Wi-Fi 6 Access Points
  • Wall-Mount Wi-Fi

Wi-Fi 6 dual-band wall-plate AP with built-in omnidirectional antennas; 1 x 1GE WAN port and 1 x 1GE LAN port; peak data rate of 2974 Mbps; 160 MHz channel width; wall mount with high installation adaptability; routing and AP modes; 802.11k/v roaming; self-organizing network (SON); network management based on Ruijie Cloud and Ruijie Reyee App; 802.3af/at PoE In (PoE injector sold separately)

Key Features

  • Suitable for five-star hotels
  • offices
  • and other similar scenarios.

Model: RG-RAP62-Wall-Lite

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Wall-Mount Wi-Fi 6 AP, 2.974Gbps | RG-RAP62-Wall-Lite
Login to View Price

Specifications

  • Product dimensions (W x D x H): 86mm x 38mm x 86mm (3.39 in. x 1.50 in. x 3.39 in.)
  • Package dimensions (W x D x H): 144 mm x 107 mm x 54 mm (5.67 in x 4.21 in x 2.13 in.)
  • Color: White
  • Weight: ≤ 0.25 kg (0.55 lbs.) (without packaging materials)
  • Shipping weight: ≤ 0.35 kg (0.77 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: PoE/PoE+
  • Local power supply: No
  • Dimensions of the DC connector: No
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 11.2 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: No
  • Certification: CE, CB
  • Package Contents: 1 x AP 2 x Machine screws (M4 x 40 mm) 2 x Machine screws (M3.5 x 30 mm) 2 x Tapping screws (ST3 x 30 mm) 1 x User Manual 1 x Warranty Card
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80/160 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 2974 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 2401 Mbps
  • 2.4 GHz wireless data rate: 573 Mbps
  • Antenna: 5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.42 dBi
  • Antenna gain (2.4 GHz): 3.07 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes
  • Product Type: Wall AP
  • Coverage range: 45 ㎡ (484.38 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 300

Hardware
  • Product dimensions (W x D x H): 86mm x 38mm x 86mm (3.39 in. x 1.50 in. x 3.39 in.)
  • Package dimensions (W x D x H): 144 mm x 107 mm x 54 mm (5.67 in x 4.21 in x 2.13 in.)
  • Color: White
  • Weight: ≤ 0.25 kg (0.55 lbs.) (without packaging materials)
  • Shipping weight: ≤ 0.35 kg (0.77 lbs.)
  • Number of 10/100/1000BASE-T ports: 2
  • Power supply: PoE/PoE+
  • Local power supply: No
  • Dimensions of the DC connector: No
  • PoE In standard: ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
  • Maximum power consumption: 11.2 W
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: –40°C to +70°C (–40°F to +158°F)
  • IP rating: No
  • Certification: CE, CB
  • Package Contents: 1 x AP 2 x Machine screws (M4 x 40 mm) 2 x Machine screws (M3.5 x 30 mm) 2 x Tapping screws (ST3 x 30 mm) 1 x User Manual 1 x Warranty Card

Wireless
  • 6 GHz Wi-Fi: No
  • 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax)
  • 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax)
  • 6 GHz channel width: No
  • 5 GHz channel width: Auto/20/40/80/160 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 2974 Mbps
  • 6 GHz wireless data rate: No
  • 5 GHz wireless data rate: 2401 Mbps
  • 2.4 GHz wireless data rate: 573 Mbps
  • Antenna: 5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna horizontal orientation: No
  • Antenna vertical orientation: No
  • Antenna gain (6 GHz): No
  • Antenna gain (5 GHz): 4.42 dBi
  • Antenna gain (2.4 GHz): 3.07 dBi
  • Maximum number of associated wireless clients: 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)

Software
  • AP mode: Yes
  • Routing mode: Yes
  • AI roaming: Yes
  • Wireless repeater mode: Yes

Other
  • Product Type: Wall AP
  • Coverage range: 45 ㎡ (484.38 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
  • MLO: No
  • 4K-QAM: No
  • Maximum number of devices that can be managed: 300
