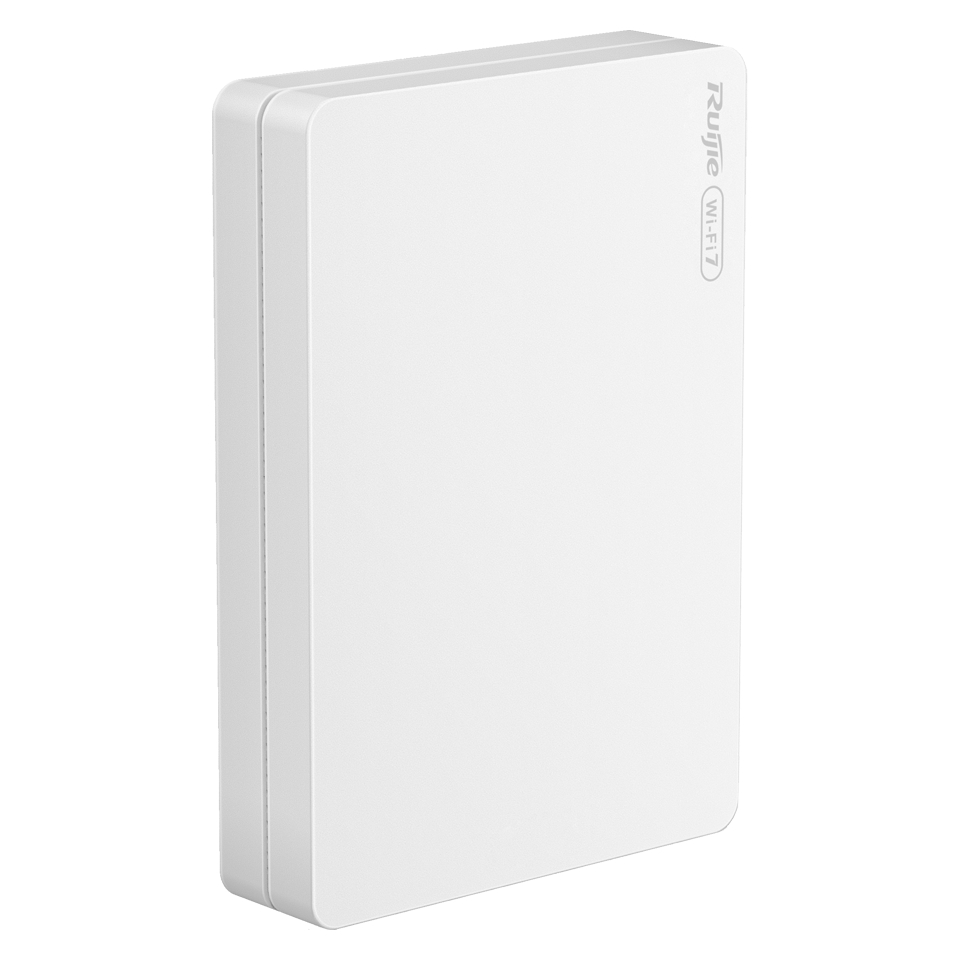

Reyee Wall-Mount Wi-Fi 7 AP, 3.570Gbps | RG-RAP72-Wall
Reyee Wall-Mount Wi-Fi 7 AP, 3.570Gbps | RG-RAP72-Wall
- Wireless Networking
- Wi-Fi 7 Access Points
- Wall-Mount Wi-Fi
Wi-Fi 7 BE3600 dual-band wall-plate access point; Up to 4 spatial streams; 1 x 100/1000/2500BASE-T port; 4 x 10/100/1000BASE-T ports (1 port supports PoE-Out ); Unified networking and management via Ruijie Cloud and Ruijie Reyee App. Maximum power consumption < 15 W（when the PoE output of LAN 4 port is disabled）; IEEE 802.3af/at-compliant PoE power supply
Key Features
- WiFi 7
- BE3600
- Wall-plate
Model: RG-RAP72-Wall
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Reyee Wall-Mount Wi-Fi 7 AP, 3.570Gbps | RG-RAP72-Wall
Specifications
- Product dimensions (W x D x H): 86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket)
- Package dimensions (W x D x H): 129 mm x 102 mm x 51 mm (5.08 in. x 4.02 in. x 2.01 in.)
- Color: White
- Weight: ≤ 0.27 kg (0.60 lbs.) (without packaging materials)
- Shipping weight: ≤ 0.45 kg (0.99 lbs.)
- Number of 10/100/1000BASE-T ports: 4
- Number of 10/100/1000/2500BASE-T ports: 1
- Power supply: PoE/PoE+
- Local power supply: No
- Dimensions of the DC connector: No
- PoE In standard: ● IEEE 802.3af (PoE) Note: The standard does not support PoE Out. ● IEEE 802.3at (PoE+)
- Maximum power consumption: 15 W (excluding PoE output)
- Operating temperature: 0°C to +40°C (32°F to +104°F)
- Storage temperature: –40°C to +70°C (–40°F to +158°F)
- IP rating: IP41
- Certification: CE, FCC, CB, ISED, cTUVus
- Package Contents: 1 x AP 1 x Mounting bracket 4 x Cross pan head screws (M4 x 25 mm) 1 x User Manual 1 x Warranty Card 1 x Key to security lock
- 6 GHz Wi-Fi: No
- 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
- 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be)
- 6 GHz channel width: No
- 5 GHz channel width: Auto/20/40/80/160 MHz
- 2.4 GHz channel width: Auto/20/40 MHz
- Maximum wireless data rate: 3570 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 2882 Mbps
- 2.4 GHz wireless data rate: 688 Mbps
- Antenna: 5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
- Antenna horizontal orientation: No
- Antenna vertical orientation: No
- Antenna gain (6 GHz): No
- Antenna gain (5 GHz): 4.56 dBi
- Antenna gain (2.4 GHz): 2.84 dBi
- Maximum number of associated wireless clients: 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
- Recommended number of associated wireless clients: ● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)
- AP mode: Yes
- Routing mode: Yes
- AI roaming: Yes
- Wireless repeater mode: Yes
- Product Type: Wall AP
- Coverage range: 55 ㎡ (592.02 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
- MLO: Yes
- 4K-QAM: Yes
- Maximum number of devices that can be managed: 300
