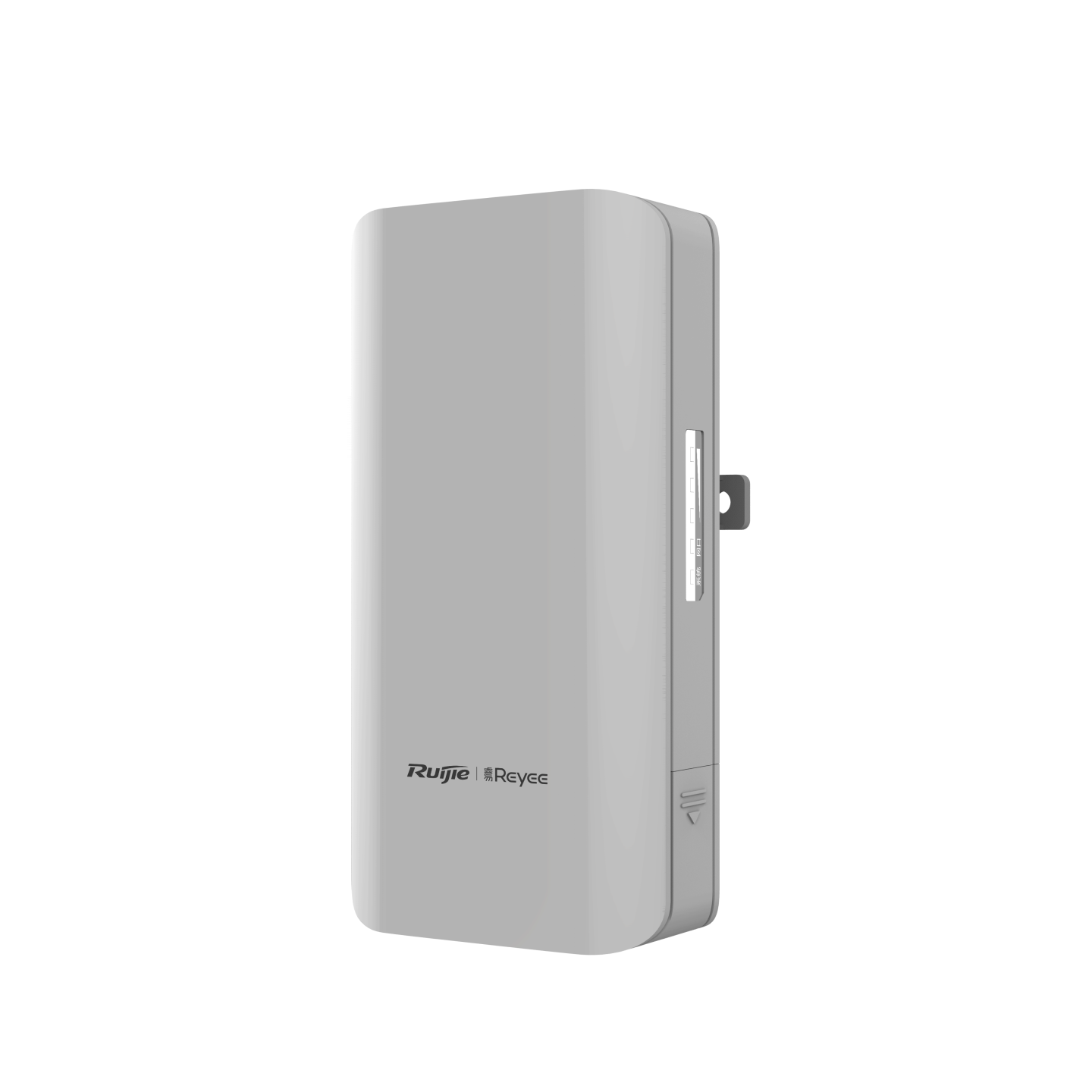

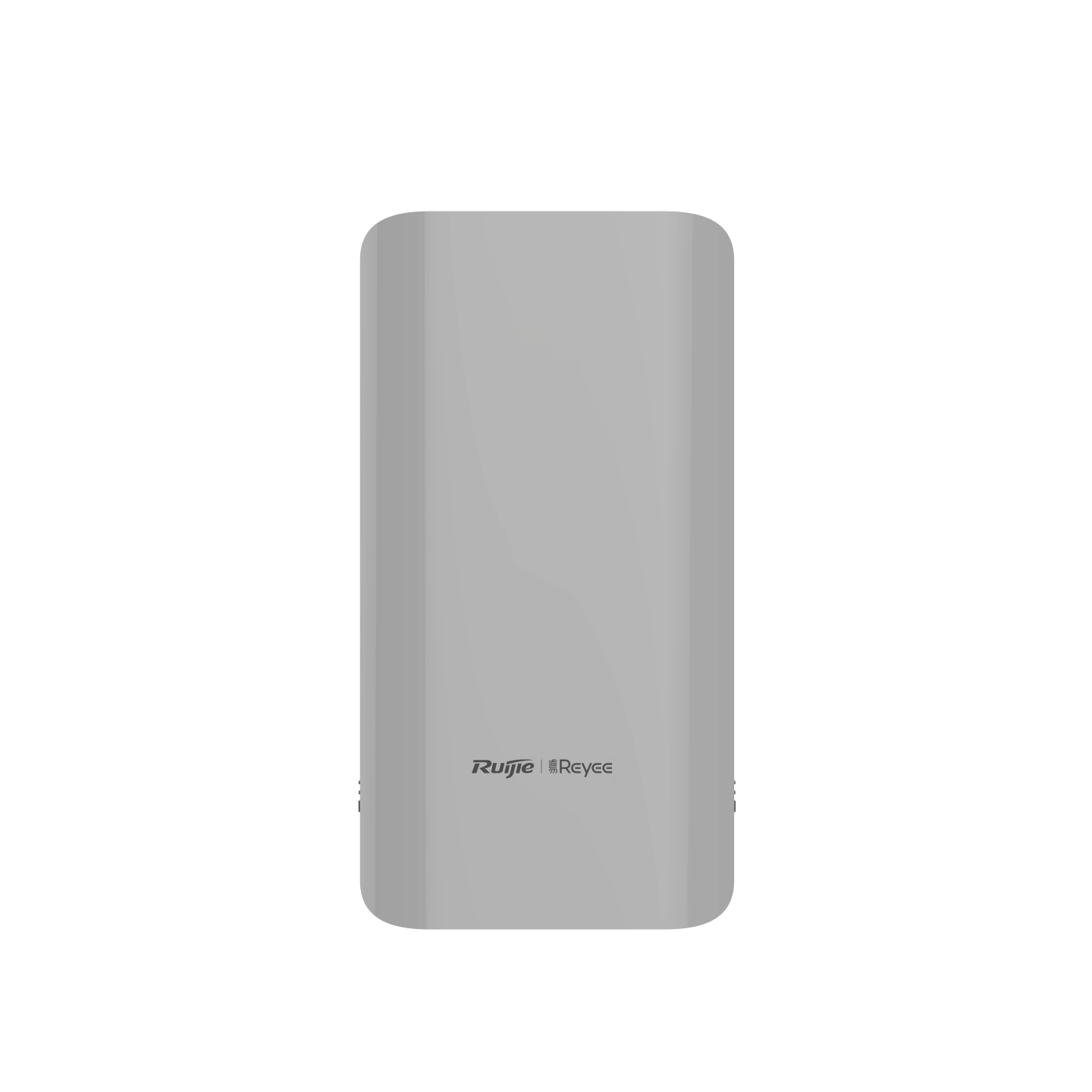

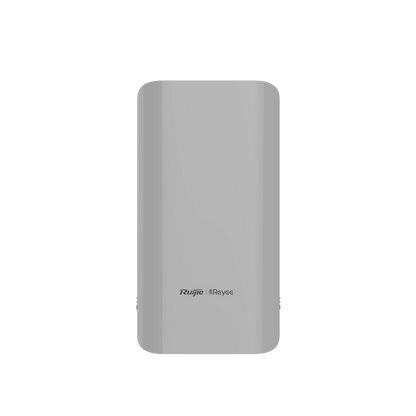

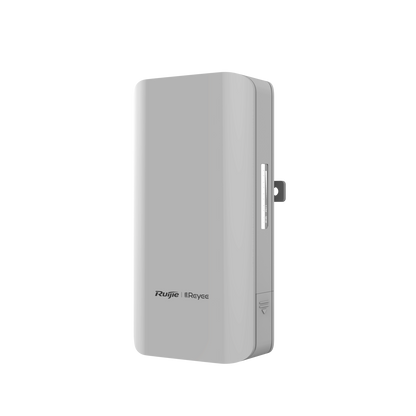

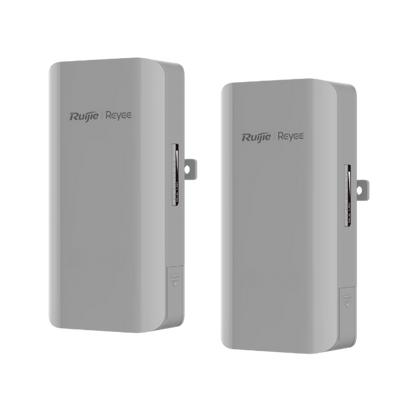

Reyee Wireless Bridge-1KM(PTP/PTMP) | RG-EST310 V2

Reyee Wireless Bridge-1KM(PTP/PTMP) | RG-EST310 V2

Category: Wireless Bridge
|
Brand: Ruijie Reyee
  • Wireless Bridge
  • Wireless Bridge
  • Point-to-Point
  • RG-EST310 V2 provides stable traffic transmission from 1KM away
  • Factory-paired, auto-rebridge upon power restoration
  • IP54 Weatherproof, -30°C to 55°C ensures stable operating
  • Cost-effective wireless solution for elevator CCTV to avoid cable loss
  • 5GHz 2x2 MIMO, up to 867 Mbps wireless transmit rate
  • V0 Level Flame Retardant construction
  • Supports PTP and PTMP modes
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Reyee Wireless Bridge-1KM(PTP/PTMP) | RG-EST310 V2
Login to View Price

Specifications

  • Radio Design: Single-radio, 2 spatial streams; Radio 1: 5 GHz, 2x2 MIMO
  • 5 GHz Channel Width: Auto/20/40/80 MHz
  • Max Wireless Rate: 867 Mbps
  • Antenna Horizontal Orientation: 60°
  • Antenna Vertical Orientation: 30°
  • Product Dimensions (W x D x H): 76 mm x 37 mm x 147 mm (excluding mounting bracket)
  • Number of PoE In Ports: 1
  • Bridging Performance: 90 Mbps at 100 m; 80 Mbps at 500 m; 80 Mbps at 1 km; 40 Mbps at 2 km (HT40)
  • RSSI: -52 dBm at 100 m; -65 dBm at 500 m; -68 dBm at 1 km; -75 dBm at 2 km
  • 3MP Camera Limit: 16 at 100 m; 16 at 500 m; 16 at 1 km; 6 at 2 km
  • Operating Temperature: -30°C to +55°C (-22°F to +131°F)
  • Operating Humidity: 5% RH to 95% RH (non-condensing)
  • MTBF: 400,000 hours (about 45 years)
  • IP Rating: IP54
  • Bridge Speed Test: Yes
  • SON: Yes
  • Restart via Ruijie Reyee App: Yes

Wi-Fi Radio
  • Radio Design: Single-radio, 2 spatial streams; Radio 1: 5 GHz, 2x2 MIMO
  • 5 GHz Channel Width: Auto/20/40/80 MHz
  • Max Wireless Rate: 867 Mbps

Antenna
  • Antenna Horizontal Orientation: 60°
  • Antenna Vertical Orientation: 30°

Hardware
  • Product Dimensions (W x D x H): 76 mm x 37 mm x 147 mm (excluding mounting bracket)
  • Number of PoE In Ports: 1

Performance
  • Bridging Performance: 90 Mbps at 100 m; 80 Mbps at 500 m; 80 Mbps at 1 km; 40 Mbps at 2 km (HT40)
  • RSSI: -52 dBm at 100 m; -65 dBm at 500 m; -68 dBm at 1 km; -75 dBm at 2 km
  • 3MP Camera Limit: 16 at 100 m; 16 at 500 m; 16 at 1 km; 6 at 2 km

Environment
  • Operating Temperature: -30°C to +55°C (-22°F to +131°F)
  • Operating Humidity: 5% RH to 95% RH (non-condensing)
  • MTBF: 400,000 hours (about 45 years)
  • IP Rating: IP54

Software
  • Bridge Speed Test: Yes
  • SON: Yes
  • Restart via Ruijie Reyee App: Yes
