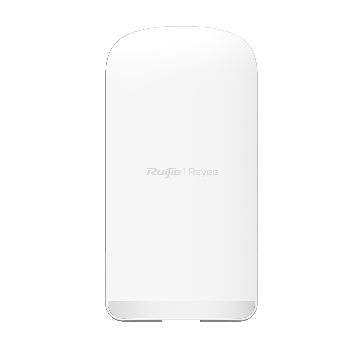

Reyee Wireless Bridge-5KM(PTP/PTMP) - (Single) | RG-EST330F-P
Reyee Wireless Bridge-5KM(PTP/PTMP) - (Single) | RG-EST330F-P
- Wireless Bridge
- Wireless Bridge
- Point-to-Point
5 GHz wireless bridge; peak data rate of 867 Mbps; 13 dBi high-gain directional antenna; 3 km long-distance data transmission with two PoE Out ports directly supplying power to the downlink cameras; 802.3af/at standard PoE, 12 V DC, and 24 V passive PoE; IP55 rating; single-unit sale; network management based on eWeb and Ruijie Cloud; one 24 V PoE adapter included
Key Features
- 5G
- Wireless Bridge
- IP55
- 2*PoE out
Model: RG-EST330F-P
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Reyee Wireless Bridge-5KM(PTP/PTMP) - (Single) | RG-EST330F-P
Specifications
- Number of PoE In ports: 1
- Number of PoE/PoE+ In ports: 1
- Number of PoE Out ports: 2
- 2.4 GHz channel width: Auto/20/40 MHz
- 5 GHz channel width: Auto/20/40/80 MHz
- Radio design: Dual-radio 3 spatial streams ● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO ● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
- Receive sensitivity: 802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps) 802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps) 802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15 802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9) 802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9) 802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
- Bridge speed test: Yes
- Link aggregation: No
- SON: Yes
- AI heatmap: Yes
- Restarting devices through Ruijie Reyee App: Yes
- SNMPv1, v2c, and v3: No
