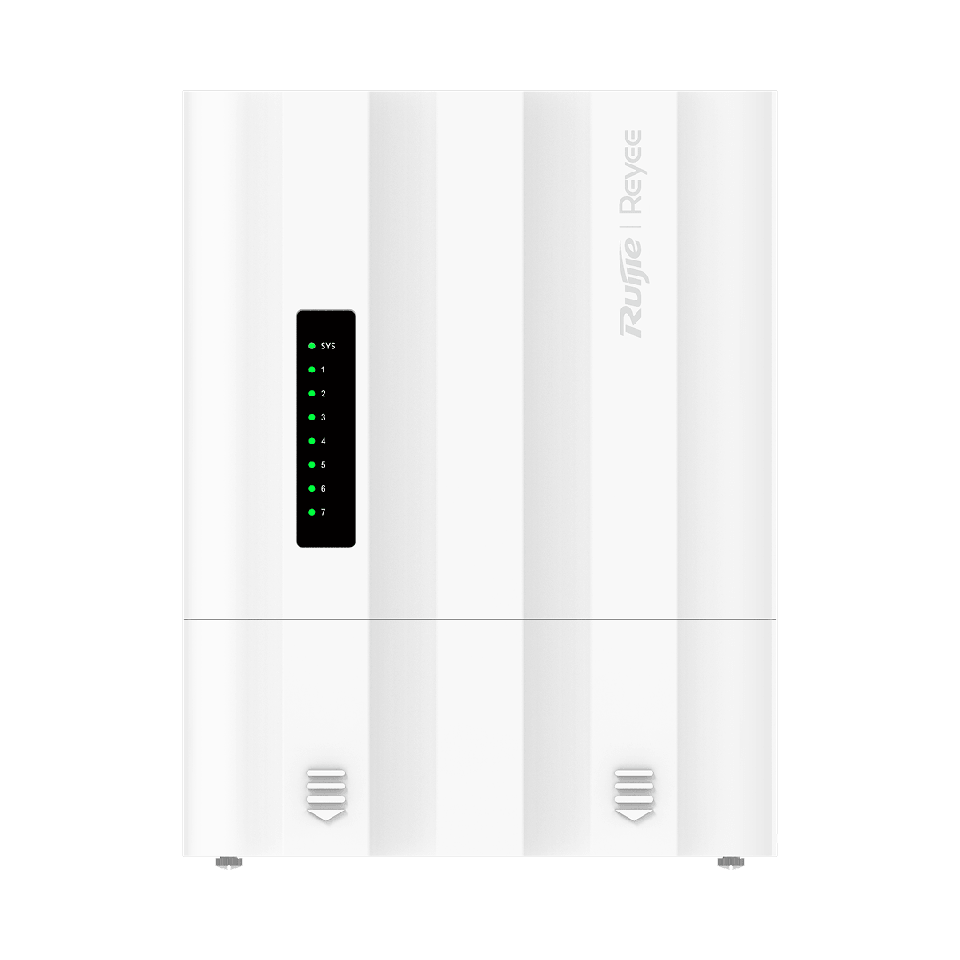

• RG-ES207GS-PI-OD product image

RG-ES207GS-PI-OD | 4-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 1-Port Gigabit (802.3bt PoE In) and 2-Port SFP, 60 W, IP65

RG-ES207GS-PI-OD | 4-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 1-Port Gigabit (802.3bt PoE In) and 2-Port SFP, 60 W, IP65

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed PoE Switches
  • 4 Port

4-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 1-Port Gigabit (802.3bt PoE In) and 2-Port SFP, 60 W, IP65

Key Features

  • Cloud-Managed
  • 5GT 2SFP
  • PoE In
  • 60W
  • IP65

Model: RG-ES207GS-PI-OD

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
RG-ES207GS-PI-OD | 4-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 1-Port Gigabit (802.3bt PoE In) and 2-Port SFP, 60 W, IP65
Login to View Price

Specifications

  • Total number of RJ45 ports: 5
  • Total number of optical ports: 2
  • Number of 1GE SFP ports: 2
  • Number of 10/100/1000BASE-T ports: 5
  • Number of PoE Out ports: 4
  • Number of PoE/PoE+ Out ports: 4
  • PoE budget: PoE input (PoE++) at 90 W: 60 W PoE input (PoE++) at 60 W: 40 W PoE input (PoE+) at 30 W: 19 W PoE input (PoE) at 15.4 W: 6 W DC input: 0 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: –30°C to +65°C (-22°F to 149°F)
  • PoE watchdog: Yes
  • Port isolation: Yes
  • Warranty: 3 years
  • Forwarding rate: 10.42 Mpps
  • Switching capacity: 14 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±8 kV for common mode (ports 1–4) ±2 kV for common mode (port 5) Power connector: ±2 kV for common mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 32
  • Maximum number of MAC address entries: 2000
  • Cable test: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 40 400W H265: 20

Hardware
  • Total number of RJ45 ports: 5
  • Total number of optical ports: 2
  • Number of 1GE SFP ports: 2
  • Number of 10/100/1000BASE-T ports: 5
  • Number of PoE Out ports: 4
  • Number of PoE/PoE+ Out ports: 4
  • PoE budget: PoE input (PoE++) at 90 W: 60 W PoE input (PoE++) at 60 W: 40 W PoE input (PoE+) at 30 W: 19 W PoE input (PoE) at 15.4 W: 6 W DC input: 0 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: –30°C to +65°C (-22°F to 149°F)
  • PoE watchdog: Yes
  • Port isolation: Yes

Other
  • Warranty: 3 years
  • Forwarding rate: 10.42 Mpps
  • Switching capacity: 14 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±8 kV for common mode (ports 1–4) ±2 kV for common mode (port 5) Power connector: ±2 kV for common mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 32
  • Maximum number of MAC address entries: 2000
  • Cable test: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 40 400W H265: 20
