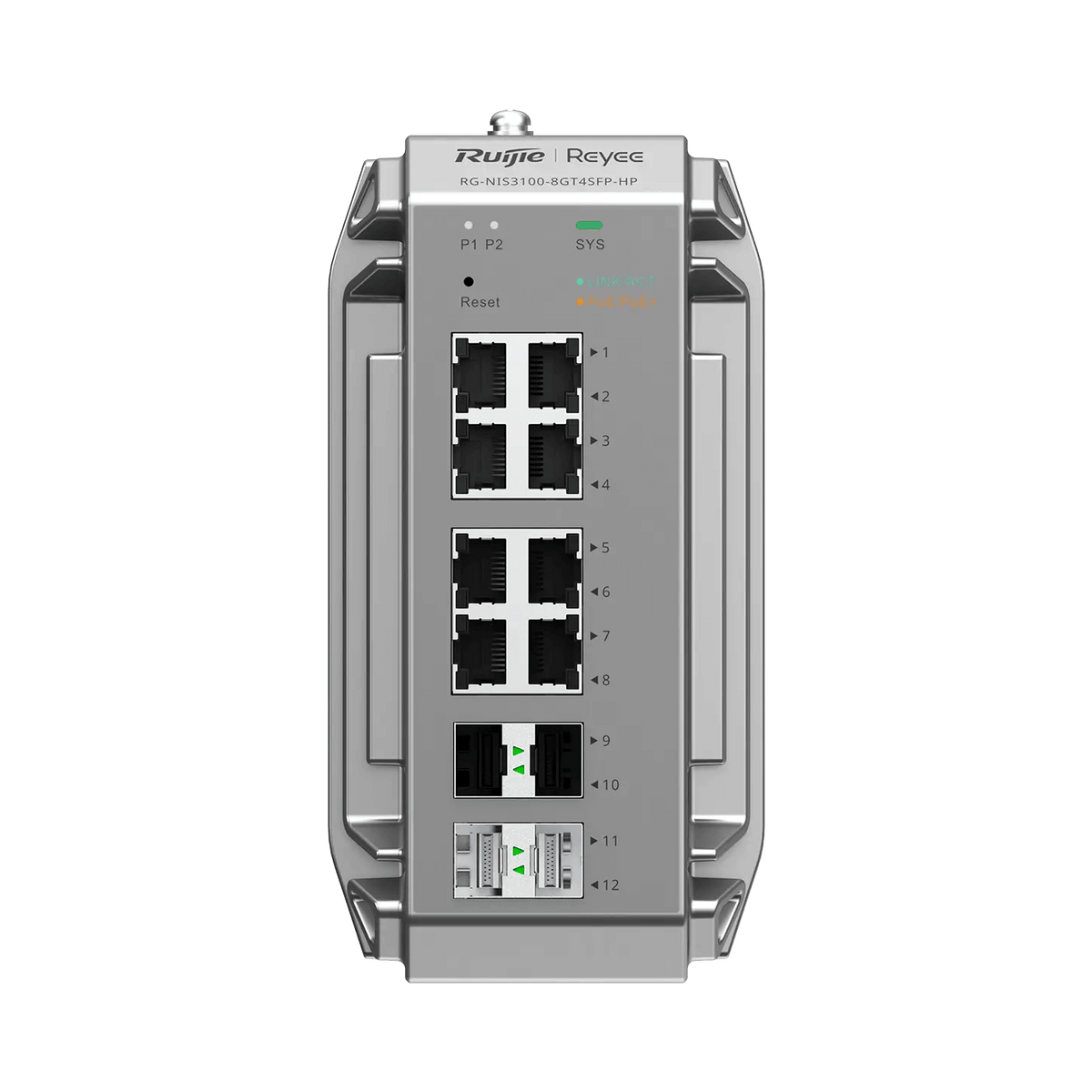

• RG-NIS3100-8GT4SFP-HP product image

RG-NIS3100-8GT4SFP-HP | 12-Port Gigabit Managed Switch with 8 PoE+ Ports, 4 SFP Uplink Ports

RG-NIS3100-8GT4SFP-HP | 12-Port Gigabit Managed Switch with 8 PoE+ Ports, 4 SFP Uplink Ports

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed PoE Switches
  • 8 Port

12-Port Gigabit Managed Switch with 8 PoE+ Ports, 4 SFP Uplink Ports

Key Features

  • Layer 2
  • 8GT
  • 4SFP
  • 240W

Model: RG-NIS3100-8GT4SFP-HP

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
RG-NIS3100-8GT4SFP-HP | 12-Port Gigabit Managed Switch with 8 PoE+ Ports, 4 SFP Uplink Ports
Login to View Price

Specifications

  • Total number of RJ45 ports: 8
  • Total number of optical ports: 4
  • Number of 1GE combo ports: No
  • Number of 1GE SFP ports: 4
  • Number of 10GE SFP+ ports: No
  • Number of 10/100BASE-T ports: No
  • Number of 10/100/1000BASE-T ports: 8
  • Number of 10/100/1000/2500BASE-T ports: No
  • Number of 100/1000/2.5G/5G/10GBASE-T ports: No
  • Number of PoE Out ports: 8
  • Number of PoE/PoE+ Out ports: 8
  • Number of PoE/PoE+/PoE++ Out ports: No
  • PoE budget: 240 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: -40ºC to +65ºC (-40°F to 149°F) (installed in a sealed cabinet) -40ºC to +70ºC (-40°F to 158°F) (installed in a fume hood with a ventilation speed of at least 80LFM (Line Feet Minute)) -40ºC to +75ºC (-40°F to 167°F) (installed in a fume hood with a ventilation speed of at least 200LFM (Line Feet Minute)) -40ºC to +80ºC (-40°F to 176°F) (installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute))
  • PoE watchdog: Yes
  • Port isolation: Yes
  • Warranty: 5 years
  • Forwarding rate: 17.86 Mpps
  • Switching capacity: 24 Gbps(bit/s)
  • MTBF: 400,000 hours
  • Altitude: Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: IEC 62368-1
  • Maximum number of VLANs: 4094
  • Maximum number of MAC address entries: 8000
  • Cable test: Yes
  • Maximum number of ARP entries: 1000
  • IPv6: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200 W H265: 80 400 W H265: 40

Hardware
  • Total number of RJ45 ports: 8
  • Total number of optical ports: 4
  • Number of 1GE combo ports: No
  • Number of 1GE SFP ports: 4
  • Number of 10GE SFP+ ports: No
  • Number of 10/100BASE-T ports: No
  • Number of 10/100/1000BASE-T ports: 8
  • Number of 10/100/1000/2500BASE-T ports: No
  • Number of 100/1000/2.5G/5G/10GBASE-T ports: No
  • Number of PoE Out ports: 8
  • Number of PoE/PoE+ Out ports: 8
  • Number of PoE/PoE+/PoE++ Out ports: No
  • PoE budget: 240 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: -40ºC to +65ºC (-40°F to 149°F) (installed in a sealed cabinet) -40ºC to +70ºC (-40°F to 158°F) (installed in a fume hood with a ventilation speed of at least 80LFM (Line Feet Minute)) -40ºC to +75ºC (-40°F to 167°F) (installed in a fume hood with a ventilation speed of at least 200LFM (Line Feet Minute)) -40ºC to +80ºC (-40°F to 176°F) (installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute))
  • PoE watchdog: Yes
  • Port isolation: Yes

Other
  • Warranty: 5 years
  • Forwarding rate: 17.86 Mpps
  • Switching capacity: 24 Gbps(bit/s)
  • MTBF: 400,000 hours
  • Altitude: Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: IEC 62368-1
  • Maximum number of VLANs: 4094
  • Maximum number of MAC address entries: 8000
  • Cable test: Yes
  • Maximum number of ARP entries: 1000
  • IPv6: Yes
  • ERPS: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200 W H265: 80 400 W H265: 40
