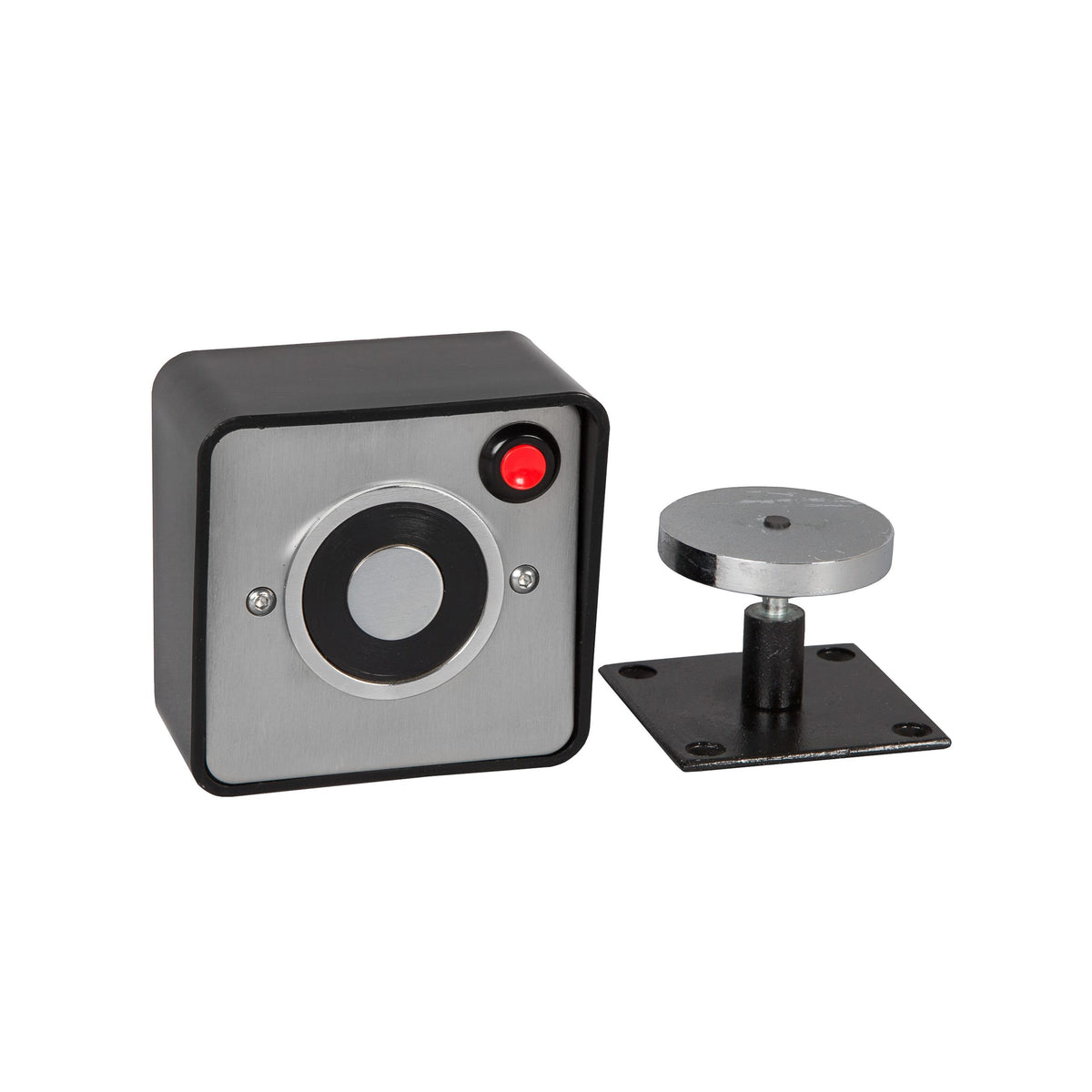

RGL DR-01-BK | Door Retainers

Door Hold Open Magnet 24vdc supplied with a Black hooded back box for surface mounting, with release button (see Floor bracket) - holding force to hold up to Door type 3 . Size 90w x 90h x 40/50d
main unit, armature 65w x 65w x 46d (all mm).

• Holding force: 25kg (250N)
• Voltage: 24Vdc
• Current draw: 70mA
• 2mm Stainless Steel Face Plate
• Extra high impact/strength ABS enclosure
• Successfully fire tested to BSEN1634-1
• – (30 & 60 minute fire doors)
