RGL DR-01/SS | Door Retainers

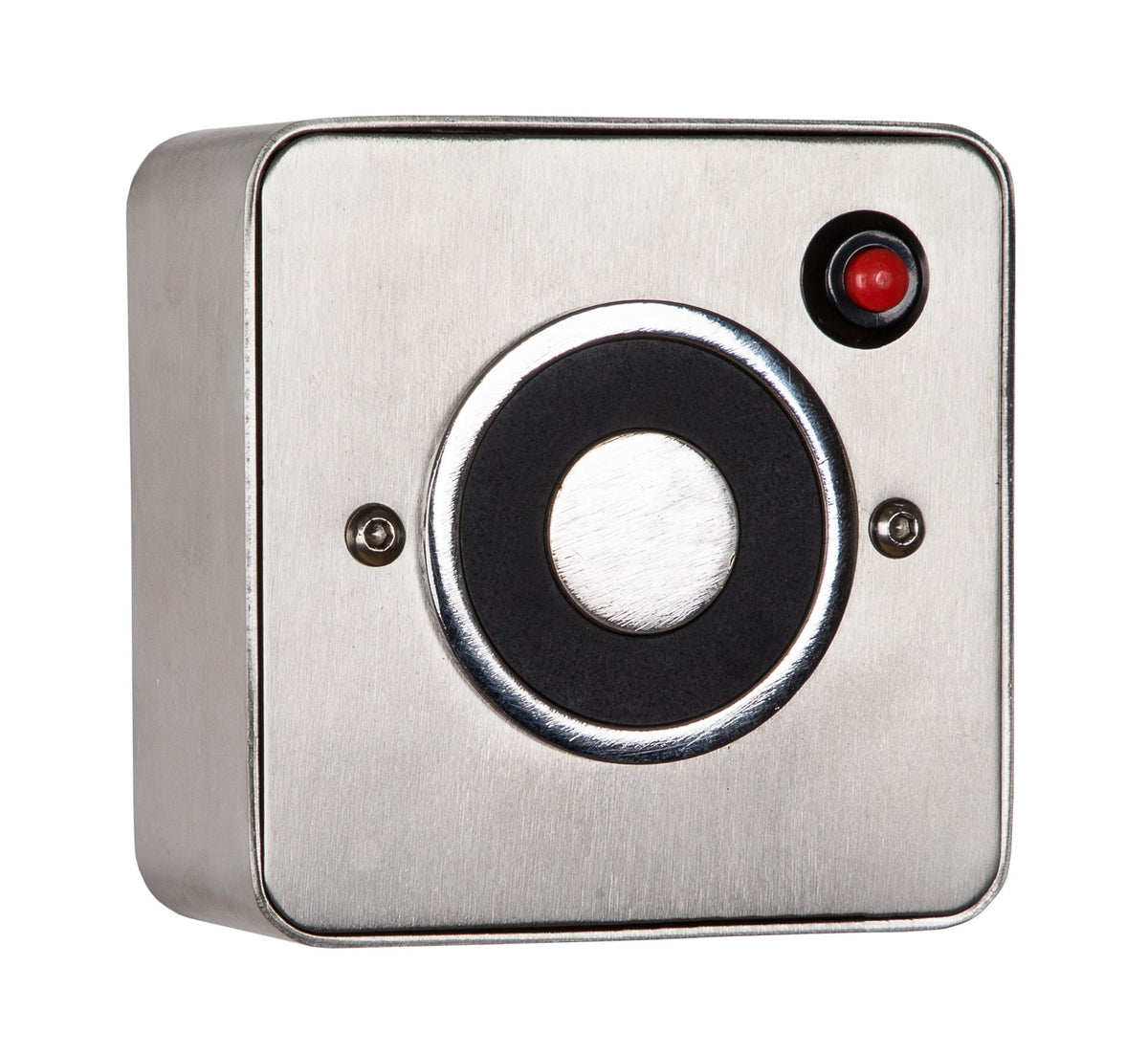

Door Hold Open Magnet 24vdc supplied with a Stainless Steel back box for surface mounting, with release button (see Floor bracket) - holding force to hold up to Door type 3 . Size 90w x 90h x 40d main unit.
Supplied with a Black or White armature plate 65w x 65w x 46d (all mm) - Need to be specified at time of order .

• Holding force: 45kg (450N)
• Voltage: 24Vdc
• Current draw: 70mA
• 2mm Stainless Steel Face Plate
• Stainless Steel enclosure
• Successfully fire tested to BSEN1634-1
• – (30 & 60 minute fire doors)
